Wholesale CW-3C Waterproof Wireless Convex Ultrasound Probe Scanner Manufacturer, Exporters
Wholesale CW-3C Waterproof Wireless Convex Ultrasound Probe Scanner Manufacturer, Exporters
Wholesale CW-3C Waterproof Wireless Convex Ultrasound Probe Scanner Manufacturer, Exporters
1 / 3
Wholesale CW-3C Waterproof Wireless Convex Ultrasound Probe Scanner Manufacturer, Exporters
Wholesale CW-3C Waterproof Wireless Convex Ultrasound Probe Scanner Manufacturer, Exporters
Wholesale CW-3C Waterproof Wireless Convex Ultrasound Probe Scanner Manufacturer, Exporters

Wholesale CW-3C Waterproof Wireless Convex Ultrasound Probe Scanner Manufacturer, Exporters

● Advanced digital imaging technology, clear imaging
● High-cost-effective
● Small and compact size, easy to carry
● Wireless type without probe cable, working freely.

Send Inquiry

Product Description

Overview
The Wireless Probe is a miniature ultrasound scanner without a screen. We have minimized the components of a conventional ultrasound scanner by integrating them into a small circuit board built into the probe and displaying the image on a smartphone/tablet/computer via WiFi transmission (no internet access required). The image can be displayed on both the screen and the tablet. The image is transmitted via WiFi inside the probe, no external WiFi signal is required.
Product Parameter
TypeCW-3C
Scanning modeElectronic array
Detection depth (mm)≥140mm
Resolution (mm)Lateral: ≤1 (depth≤60) / Axial: ≤1 (depth≤80)
Dead zone (mm)≤3
Geometric position accuracy (%)Horizontal: ≤5 / Axial: ≤5
Working systemApple iOS and Android, Windows
Element80
Channel8
Scanning modeB, BM
Probe frequency3.5MHz convex probe
Depth90~200mm
Image AdjustBGain, TGC, DYN, Focus, Depth
Cineplayauto and manual, frames can set as 100/200/500/1000
MeasureLength, Area, Angle, heart rate, Obstetrics
Image savejpg, avi and DICOM format
Image frame rate18 frames / second
Battery chargeby USB charge or wireless charge, take 2 hours
Battery3000mAh
Working time≥3h
Wifi type802.11g/20MHz/5G/450Mbps
Net Weight260g
Size165*68*26mm
Product Advantage
■ Very flexible in the image display screen collocation, according to the needs of different screen sizes of mobile phones, tablets, computers.
■ Waterproof design, convenient for sterilization.
■ Remote diagnosis convenience, capable for images transfer to doctors.
■ Applicable in emergency, clinic, outdoor and vet inspection.
■ Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing.
Product Configuration
Standard Configuration: Wireless Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc, Carrying Bag or Aluminium Suitcase (options) x 1pc.

Optional: Stainless Steel Puncture Guide, Android or iOS Phone/Tablet, Windows PC, Wireless Power Bank, Tablet Bracket, Trolley.
Application directions
1. Visualization tools: invasive intervention guide, surgical and therapy guidance.
2. Emergency inspection: ER, ICU, Wild First Aid, battlefield rescue.
3. Preliminary examination: Ward Inspection, primary clinic examination medical examination, health screening, home care, family planning, etc.
4. Remote diagnosis, consultation, training: works on smart phone or tablet, easy telecommunications.

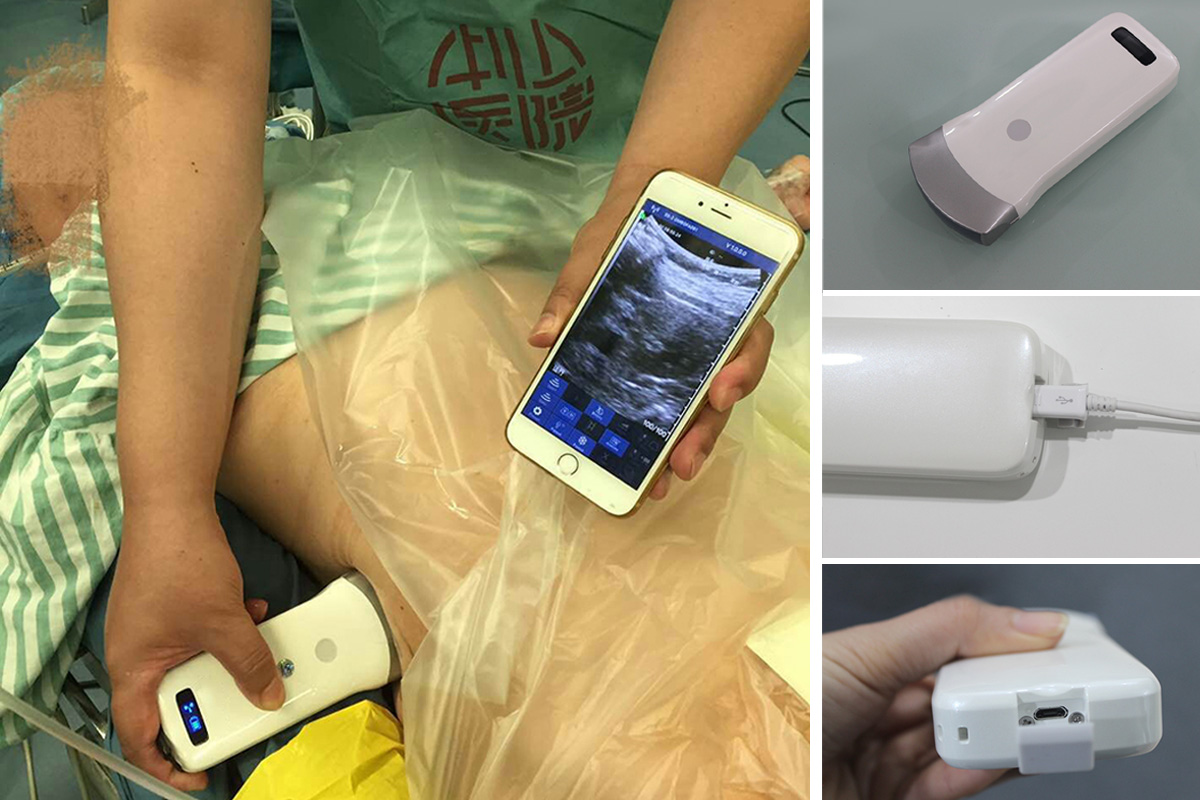

CW-3C convex palm B_W ultrasound-detail 1

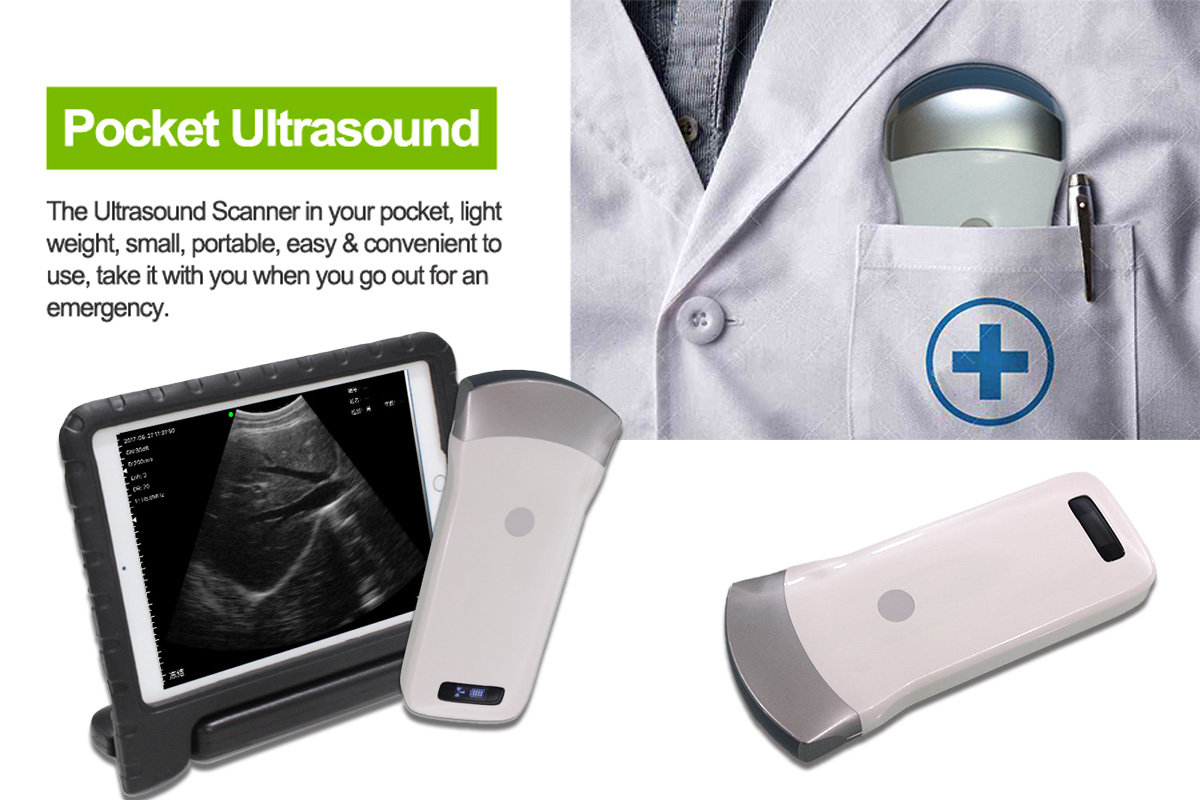

CW-3C convex palm B_W ultrasound-detail 2

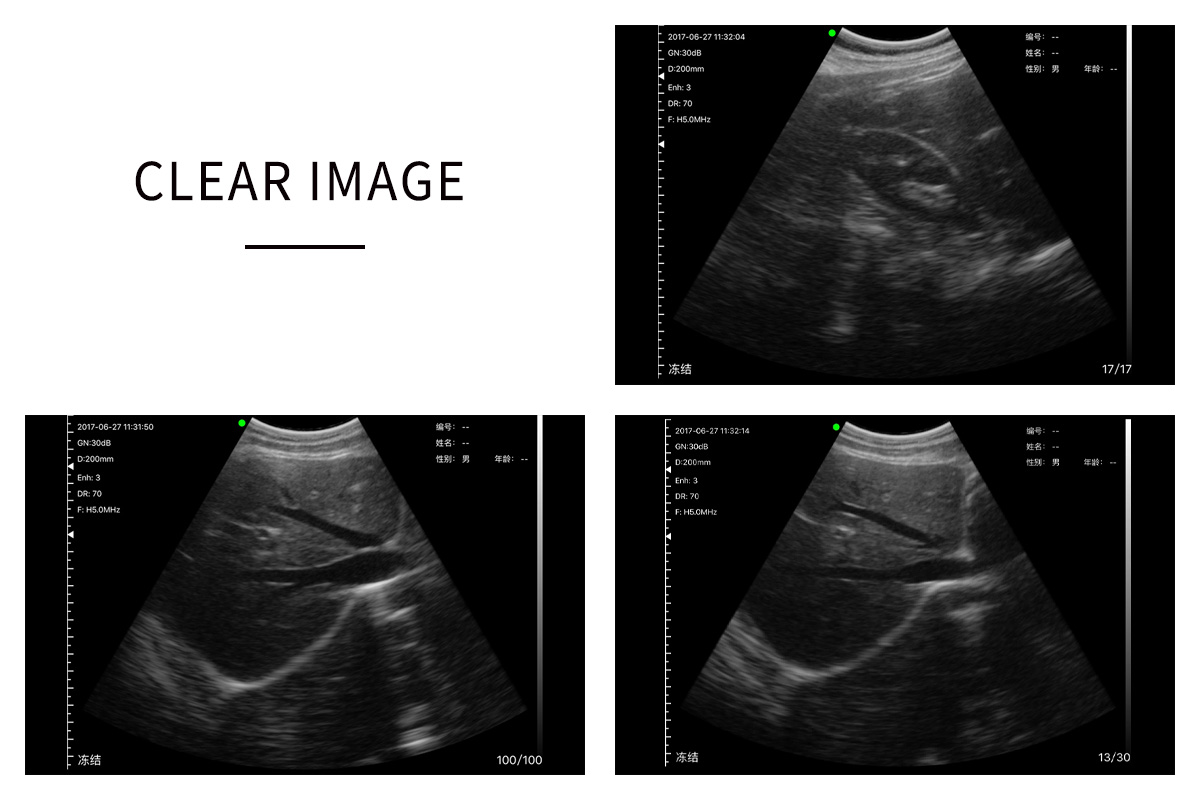

CW-3C convex palm B_W ultrasound-detail 3
Frequently Asked Questions
How does the wireless ultrasound probe connect to devices?
The probe connects via its own internal WiFi signal. It does not require an external WiFi network or internet access to display images on your smartphone, tablet, or computer.
Which operating systems are compatible with the software?
The system is compatible with Apple iOS, Android, and Windows operating systems.
What is the battery life and charging time?
The device features a 3000mAh battery providing ≥3 hours of working time. It can be fully charged in approximately 2 hours using USB or wireless charging.
Is the wireless probe waterproof?
Yes, the device features a waterproof design, which makes it convenient for sterilization in medical environments.
What types of measurements can the device perform?
The probe supports measurements for Length, Area, Angle, Heart Rate, and Obstetrics.
Can the images be saved and shared?
Yes, images can be saved in jpg, avi, and DICOM formats, making them easy to store or transfer to other doctors for remote diagnosis.
