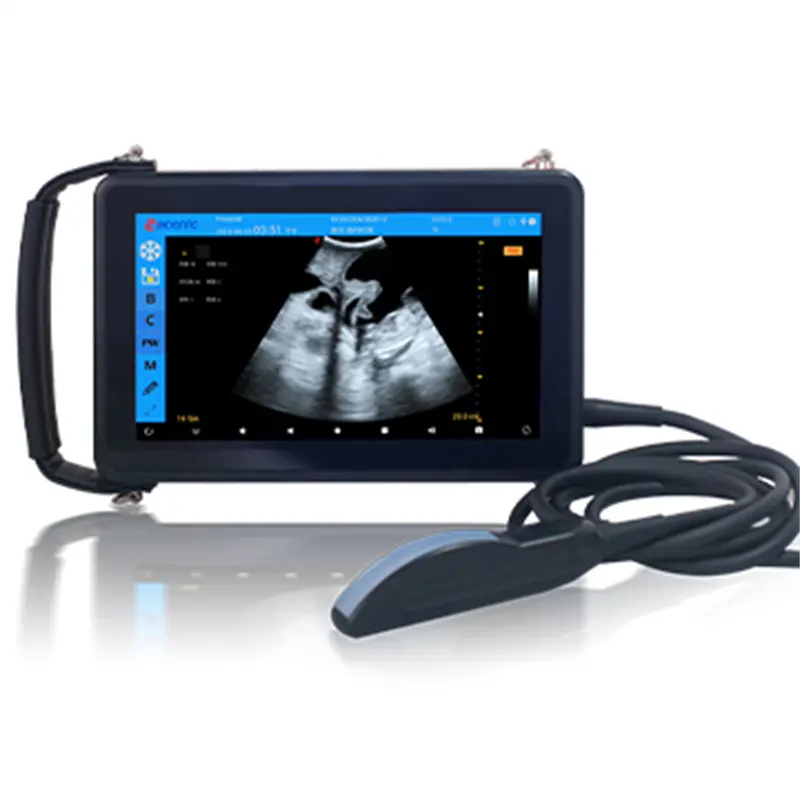

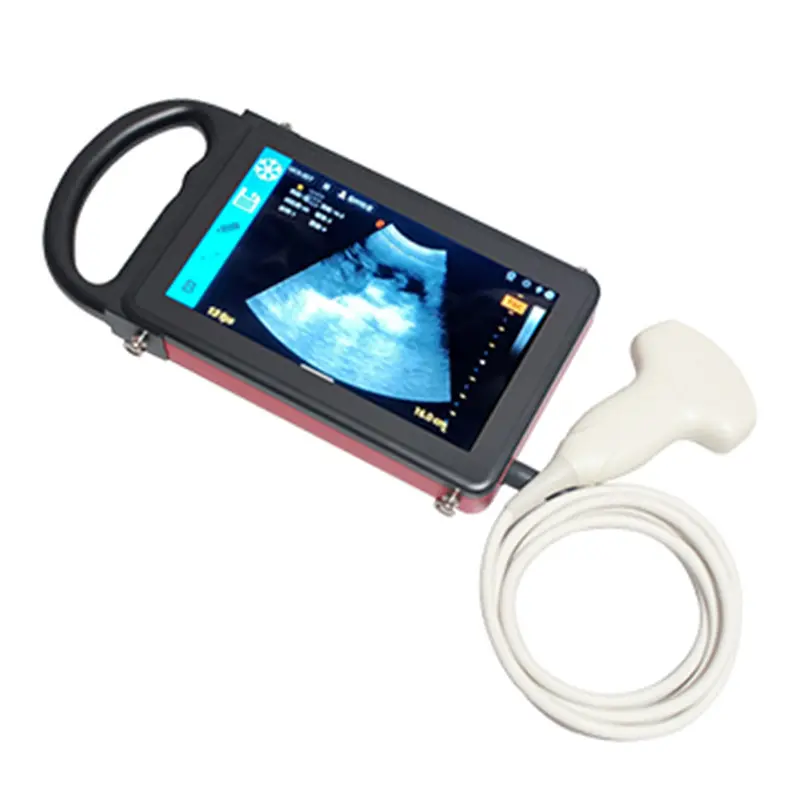

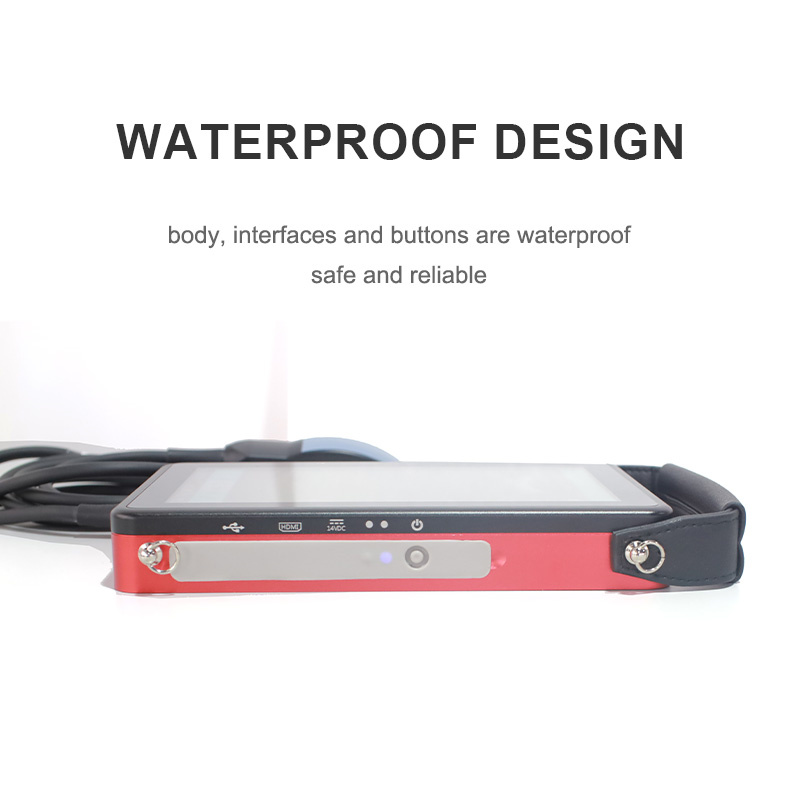

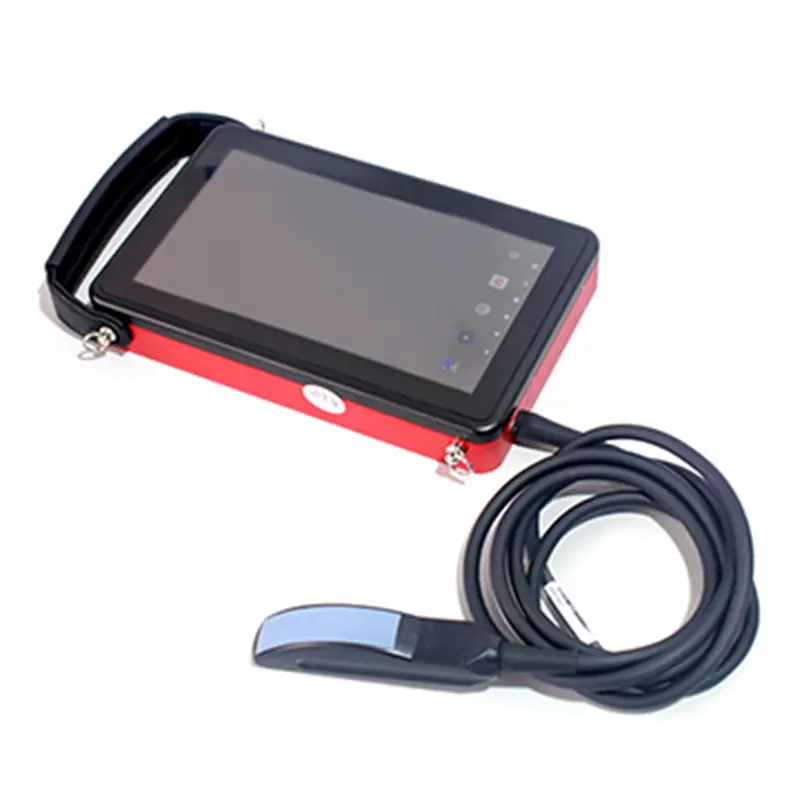

The ECI-X5 Veterinary Ultrasound Diagnostic Instrument is a multi-functional reproduction testing device designed for large and medium-sized animals such as pigs, cows, sheep, horses, donkeys, etc. It is equipped with an 8-inch high-definition touch screen and Doppler colour ultrasound technology. It supports pregnancy testing and back-fat measurement, and the IPX6 waterproof body is suitable for the wet working environment of the farm.
| Parameter | Value | |
| Type | ECI-X5 | |
| Element | 128 elements | |
| Channel | 64 | |
| Depth (mm) | 30-120mm | |
| Maximum detection depth (mm) | ≥100 | |
| Resolution(mm) | Lateral | ≤1(depth≤60) ; 5≤(8≤depth≤130) |
| Axial | ≤1(depth≤80) | |
| Dead Zone(mm) | ≤1 | |

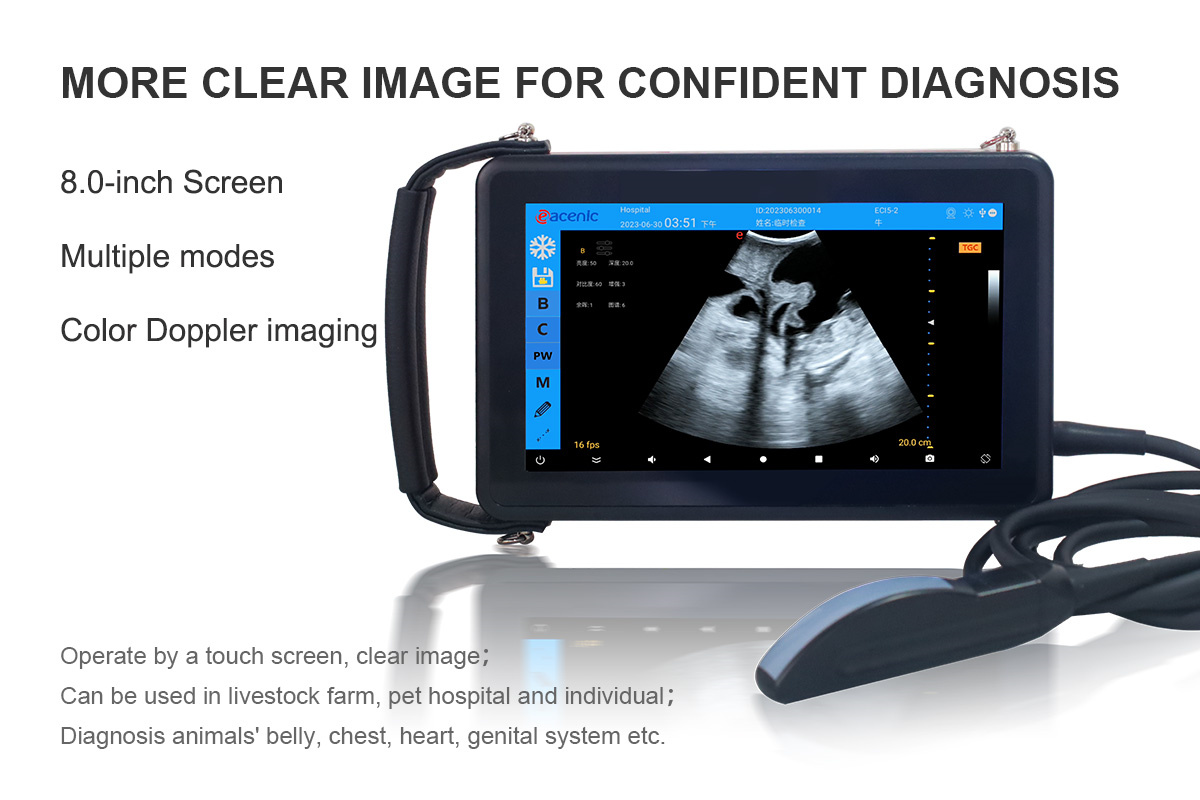

| Display | 8.0 inch HD Touch Screen | |
| Screen Resolution | 1024*720P | |

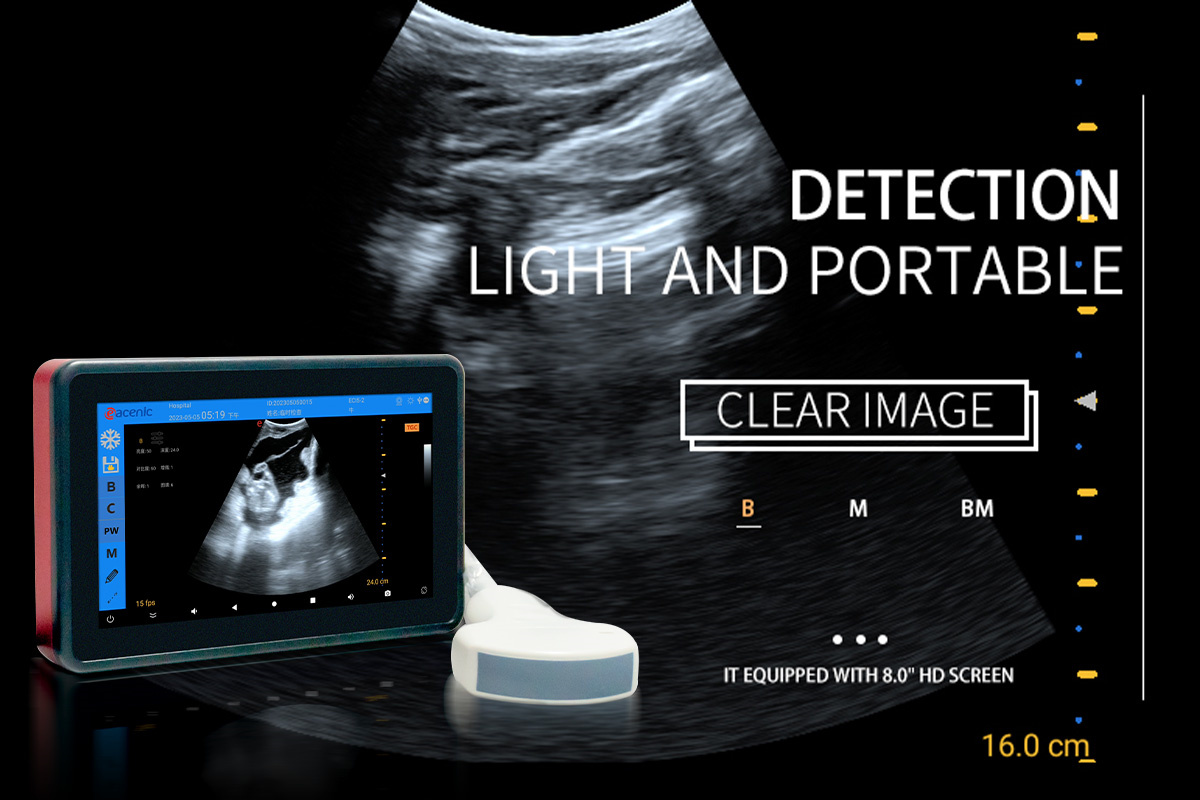

| Display Mode | B, BB, BM, M, C, PW | |
| Cine-loop | 30-300s | |
| Storage | 32G | |
| Measurement | Area, perimeter, diameter, angle, back-fat, EMA | |
| Interface | HDMI, USB2.0 | |
| Working Time | 5 hours | |
| Weight | 1.6kg | |

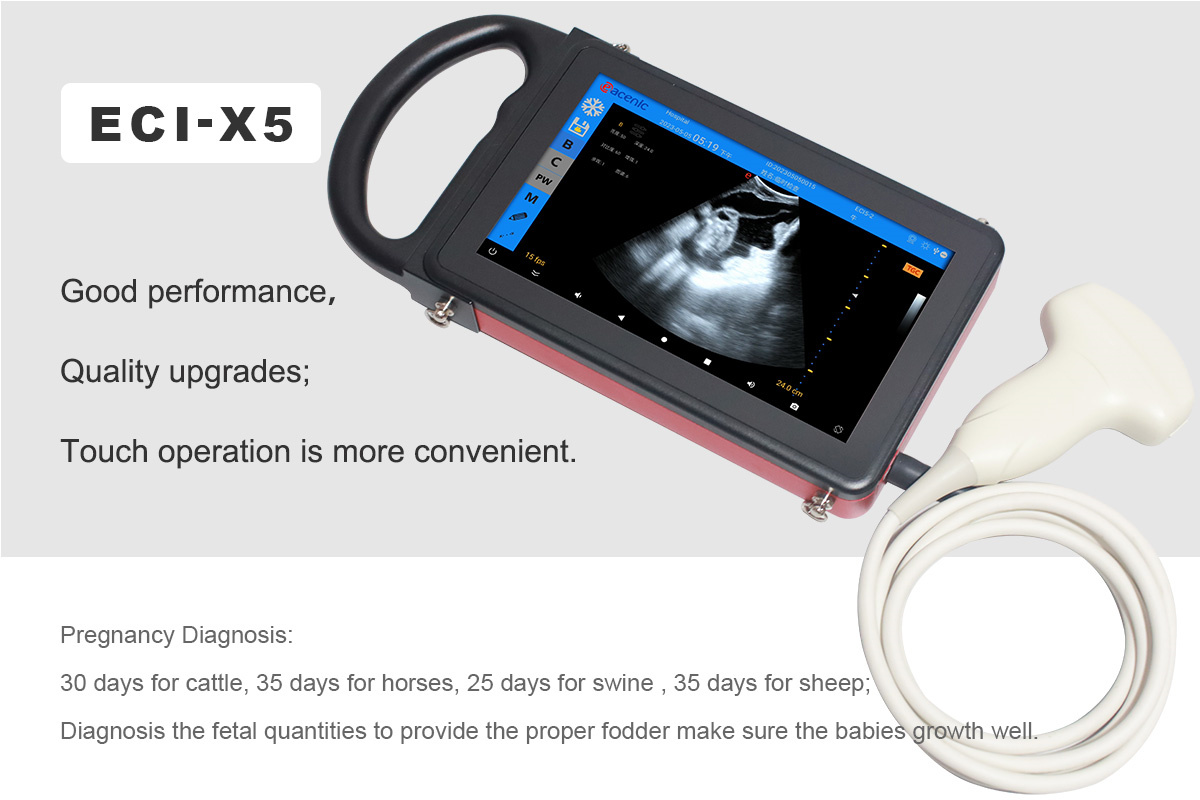

It is suitable for farms and veterinary hospitals to carry out pregnancy tests on cows, horses, dogs and cats. Based on the follicle size data measured by the tool, it determines whether the animal is at the proper time for fertilisation. The uterus and pregnancy status of the animal is determined by observing high-quality ultrasound images.
Each product undergoes a series of rigorous extreme tests from raw material to shipment to ensure reliability in harsh environments:
The equipment is packed in a shockproof PVC case and a matching cardboard box. Dimension: 43.5*34.5*18.5cm; G.W.: 4.5kg.

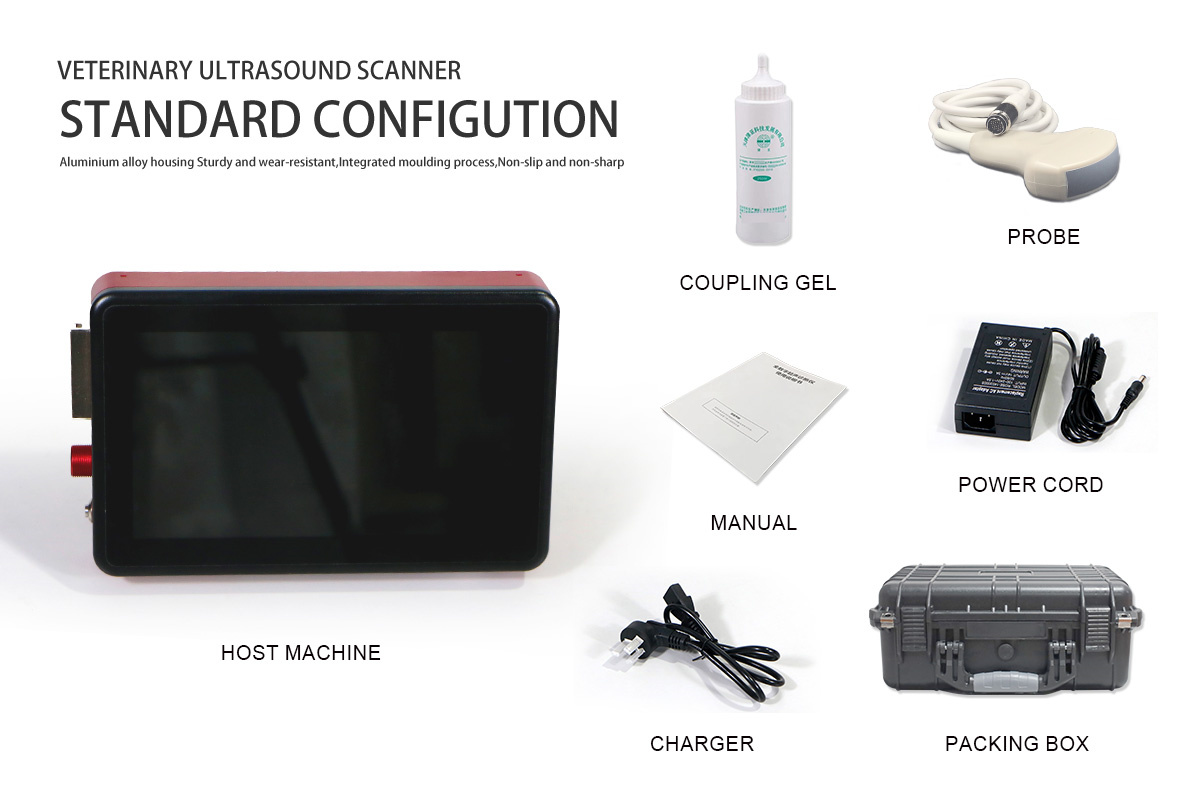

| Configuration Item | Quantity |
| Mainframe | 1 |

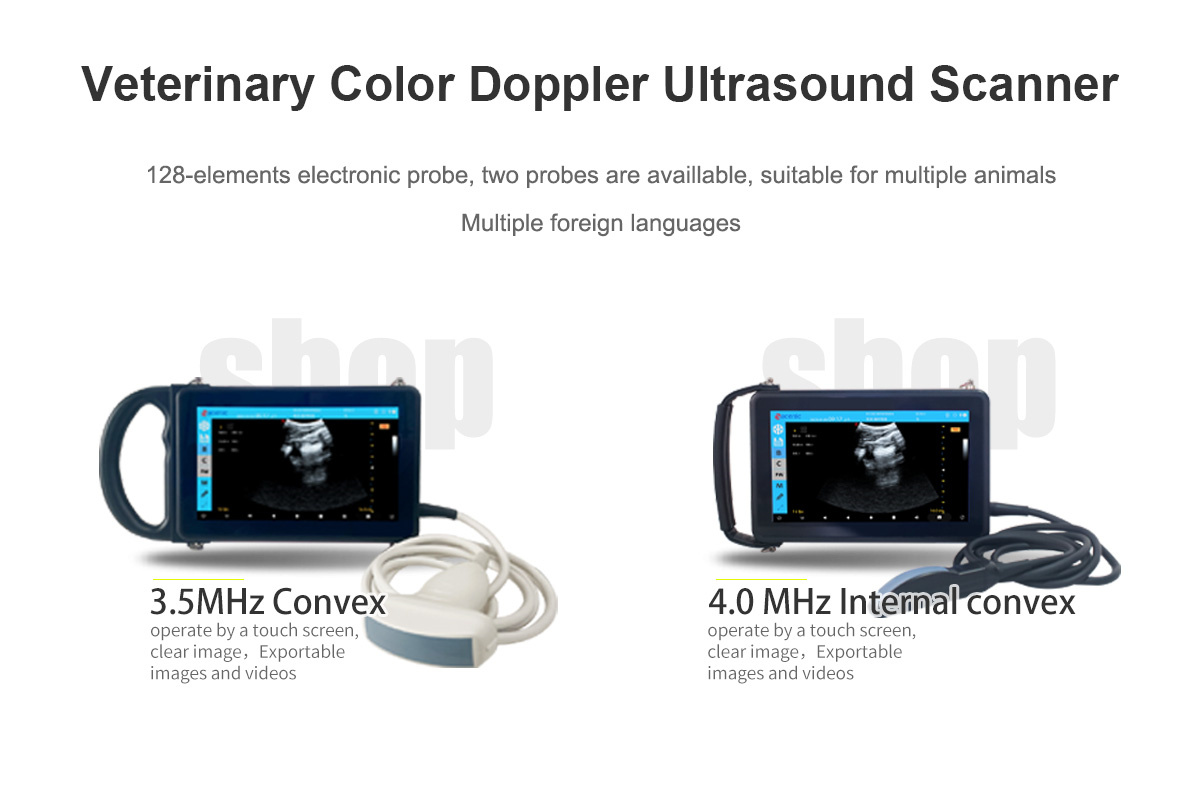

| Convex or Convex Rectal Probe | 1 |
| Power Cord & Adapter | 1 each |
| User Guide | 1 |
| Product Qualification Certificate | 1 |
| Shockproof PVC Box | 1 |
