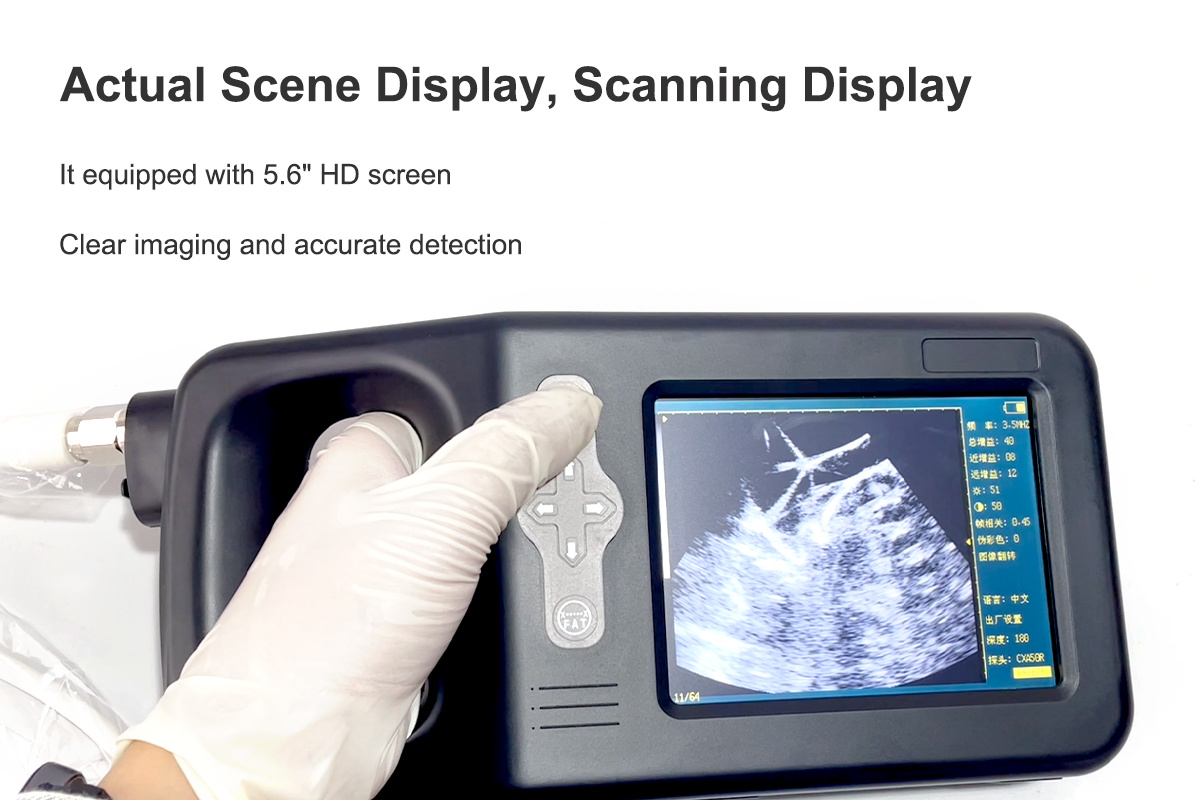

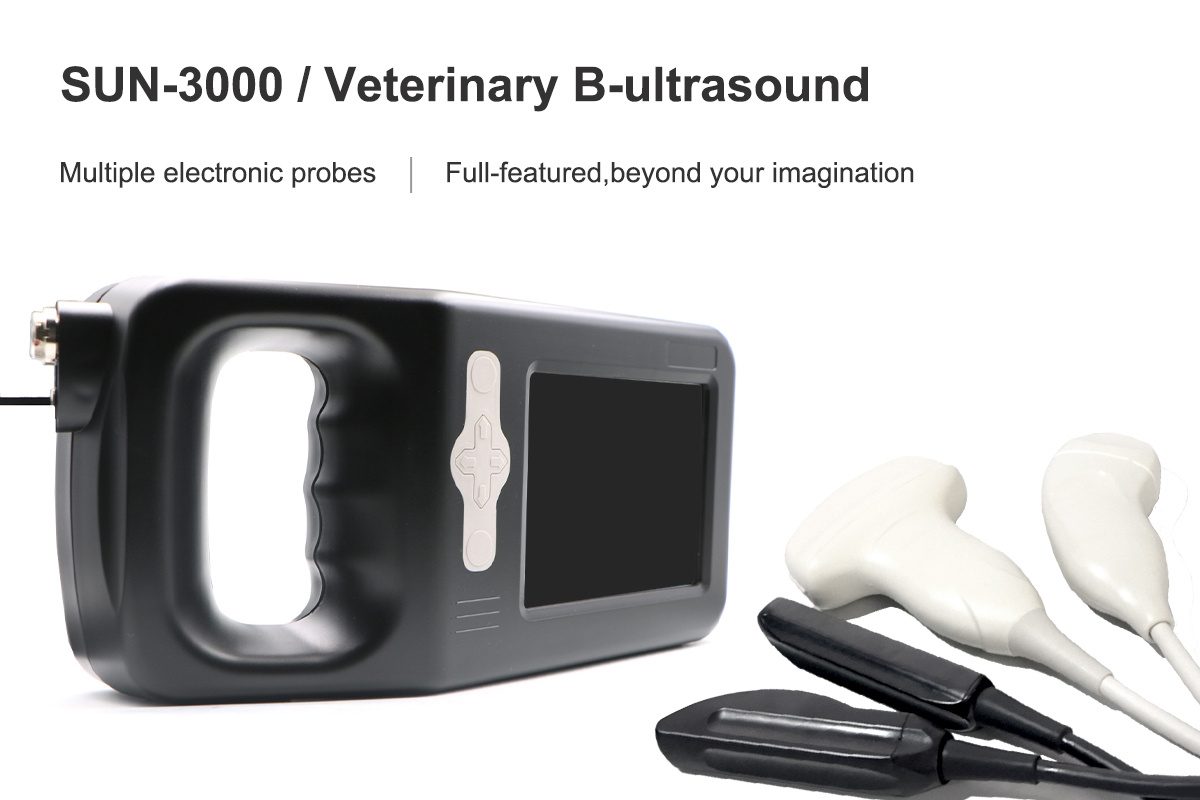

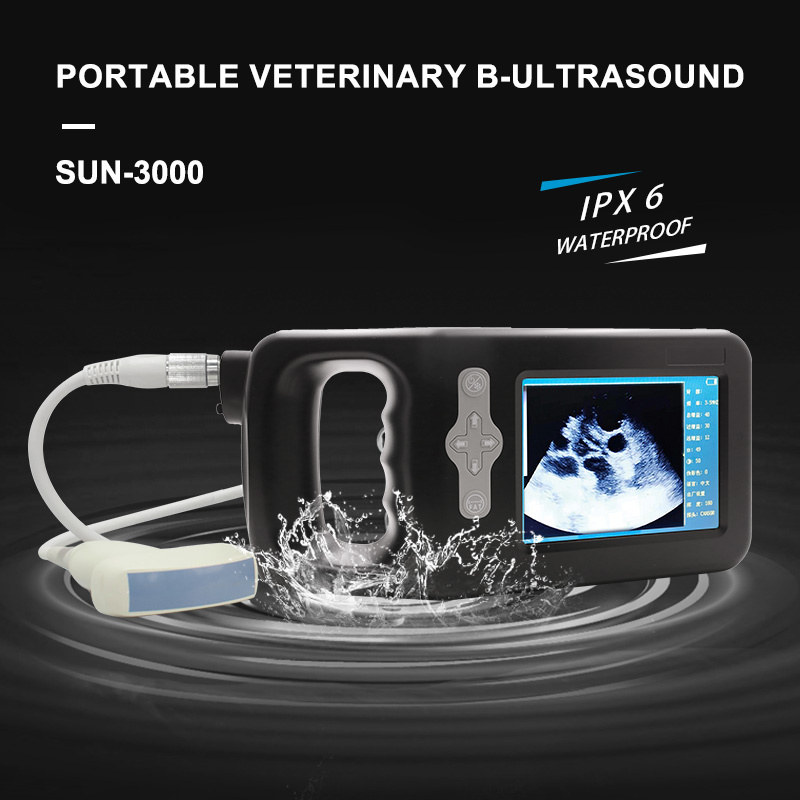

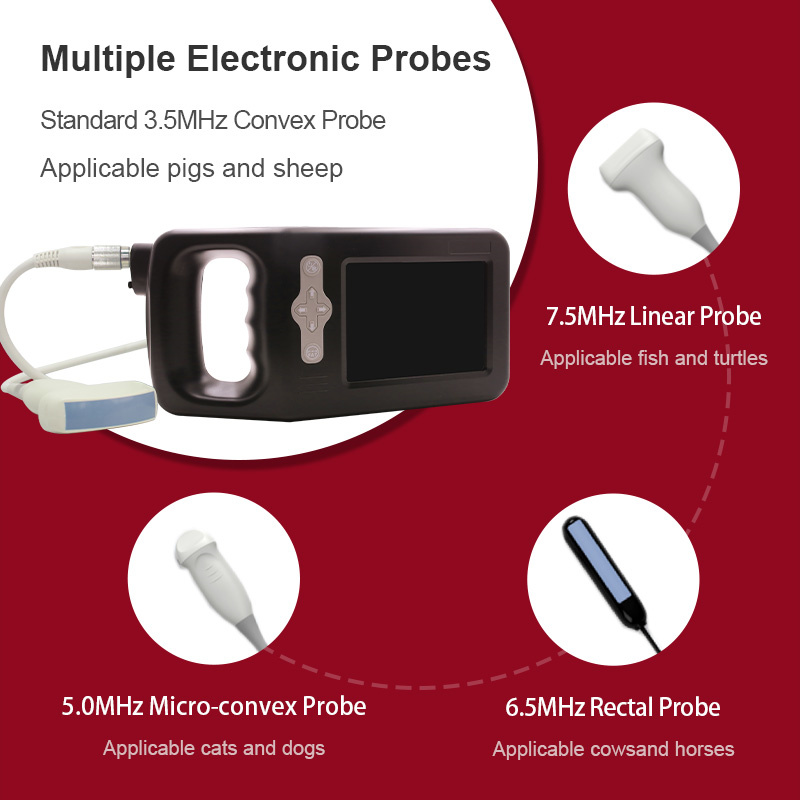

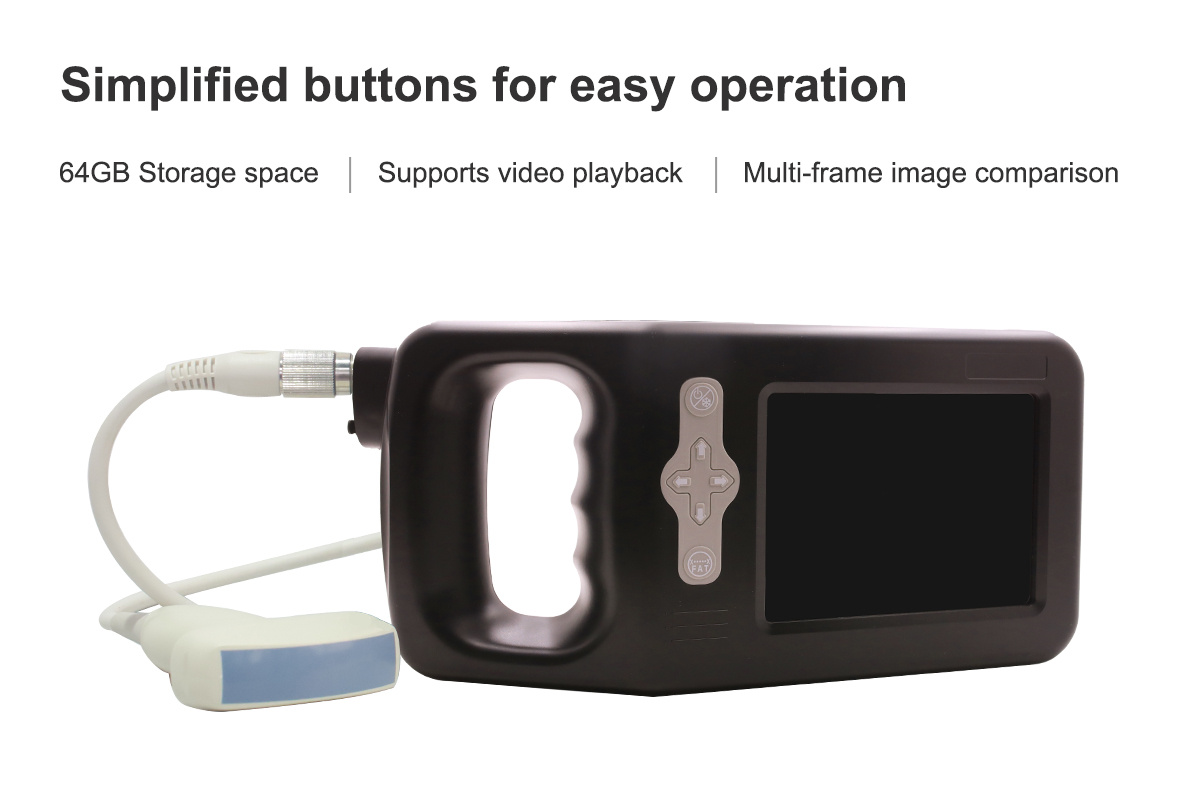

SUN-3000 Ultrasonic Diagnostic Instrument is specialized for pregnancy detection in animals, including pigs, cows, sheep, and other large to medium-sized livestock. Featuring a 5.6-inch HD screen and a versatile multi-frequency probe system (3.5MHz convex, 5.0MHz micro-convex, 6.5MHz rectal, and 7.5MHz linear probes), it supports both uterine inspection and back-fat measurement. The interface is waterproof (IPX6), and the 64GB internal storage allows for extensive video playback and image comparison to track breeding cycles effectively.

Optional Probes Configuration:

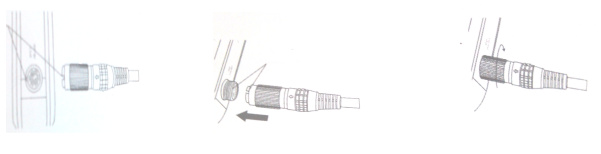

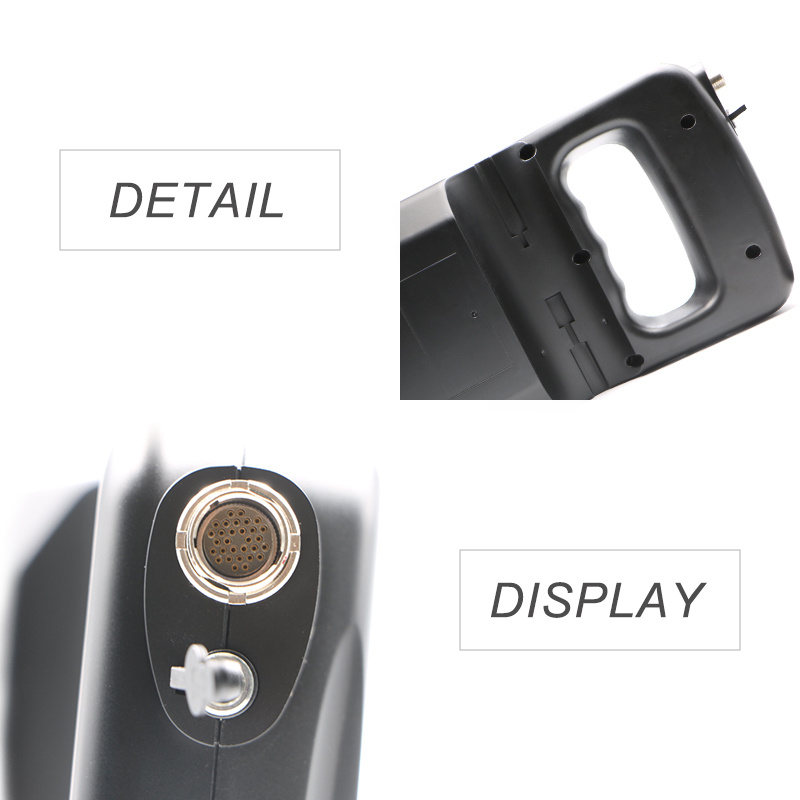

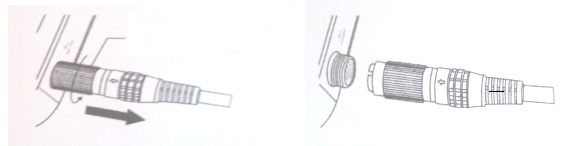

The instrument features a single specialized probe socket. Assembly is straightforward: align and connect the optional probe to the main unit's socket.

Operating Conditions:

• Temperature: +5°C to +40°C
• Humidity: 30% to 80% (Relative)
• Atmospheric Pressure: 70KPa to 106KPa

Storage & Transport:

• Storage Temperature: -5°C to +40°C
• Humidity: ≤80% at 20°C
• Keep away from direct sunlight and erosive gases; ensure good ventilation.
• Handle the TFT-LCD display with care to avoid cracking.

Standard Configuration:

• 1 Main Unit
• 1 Probe (Optional type)
• 1 Power Adaptor & Cable
• 1 Instruction Manual
• Product Certificate

Logistics Info: Single unit package: 430*320*160mm (4.5kg). Bulk 5-unit package: 820*440*355mm.
