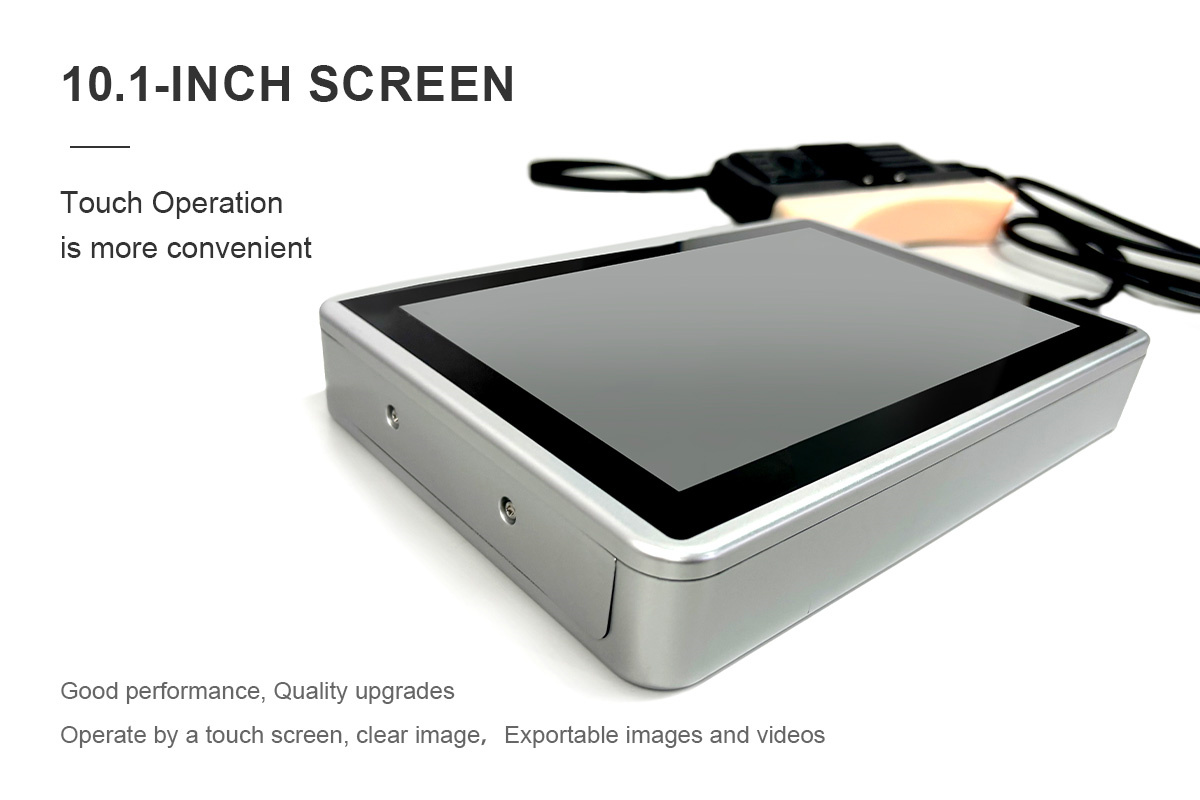

● 10.1-inch touch screen, non-button operation is easier and faster.
● 256 elements image processing with 1920*1080 screen resolution makes the image more clearer.
● Built-in multiple measurement tools, including distance, area, angle, perimeter, etc.
● Multiple image display modes to suit different diagnostic needs
● 5-minute cine-loop feature in case you miss image details

Send Inquiry

Product Description

Description of ECI-X8S Veterinary Ultrasound Machine

ECI-X8S color Doppler veterinary ultrasound machine is composed of software and ultrasonic probe. The ultrasound machine adopts advanced beam synthesis and image processing technology. The device software supports multi-mode imaging, measurement, image storage and management functions.

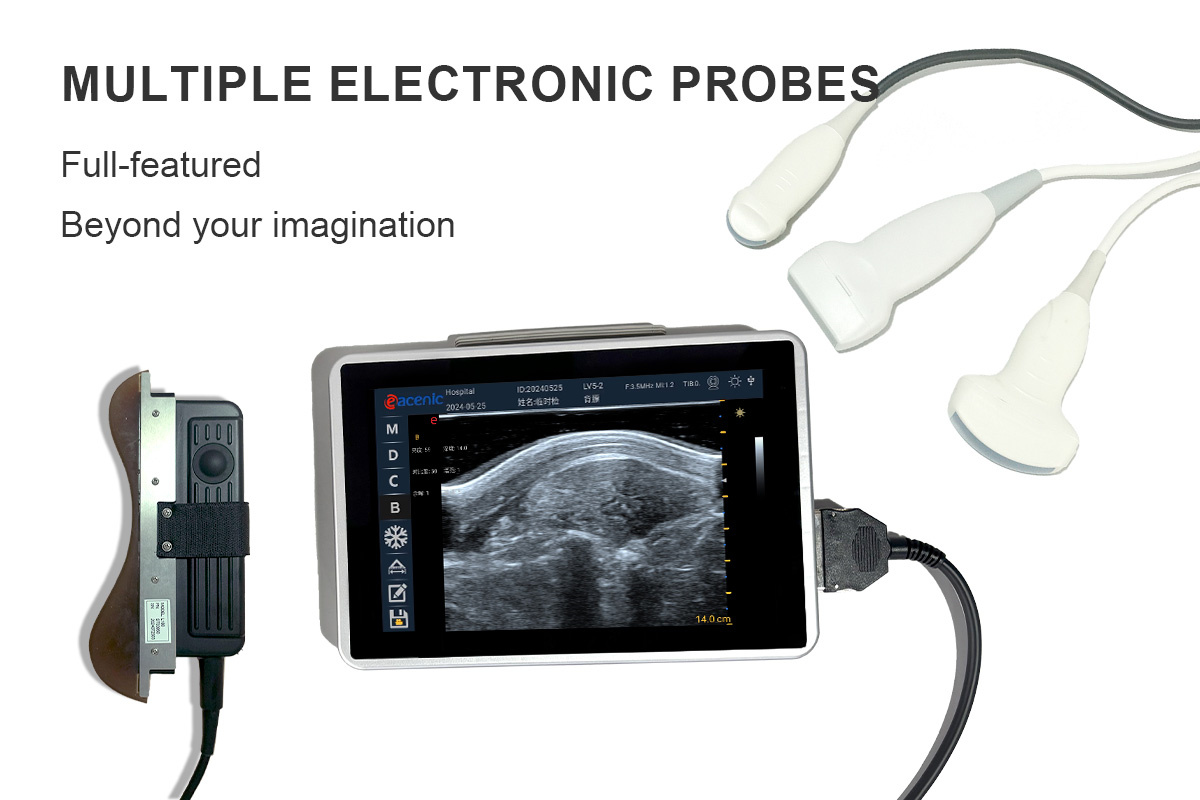

ECI-X8S Veterinary Color Doppler Ultrasound Scanner-detail 4 probe

Using Video of the ECI-X8S Veterinary Ultrasound Machine

Parameters of The ECI-X8S Veterinary Ultrasound Machine

TypeECI-X8S
Display10.1-inch 1920*1080
Frequency3.0~6.0MHz
ModeB, C, PW, M, BB
Image gray scale256
Depth2~240mm
Cine-loop5 minutes
Storage64G
Channel64
ObstetricsPolyembryony, CRL, Uterine diameter, TTD
MeasurementBack-fat thickness, EMA, loin-eye thickness, Area, Perimeter, Diameter, Angle
InterfaceUSB, Type-c, HDMI
Working time6 hours
Charge14V/2A
Size255*175*35mm
N.W.1.8kg
Optional Probes Specifications
3.5 MHz Back-fat Probe
L: 180mm, Pitch: 0.7mm, Element: 256, Depth: 60-240mm		 3.5 MHz Convex Probe
R: 60mm, Element: 128, Frequency: 2.0-5.0MHz, Depth: 60-240mm
5.0 MHz Micro-convex Probe
R: 20mm, Element: 128, Frequency: 3.0-8.0MHz, Depth: 20-100mm		 7.5 MHz Linear Probe
L: 40mm, Pitch: 0.31mm, Element: 128, Depth: 20-80mm
7.5 MHz Linear Probe
L: 25mm, Pitch: 0.19mm, Element: 128, Depth: 20-60mm		 6.5 MHz Rectal Probe
L: 64mm, Pitch: 0.5mm, Element: 128, Depth: 30-120mm
6.5 MHz OPU Probe
R: 9mm, Element: 256, Frequency: 5.0-8.0MHz, Depth: 20-120mm

Features of The ECI-X8S Veterinary Ultrasound Machine

●
Equipped with 3.5MHz back-fat probe, 5.0MHz micro-convex probe and other types of probes to meet different testing needs.
●
Color Doppler imaging real-time display of blood flow speed and direction, assisting in diagnosis of heart disease like canine heart valve regurgitation.
●
Back-fat measurement function outputs data in 3 seconds; image freezing allows for precise tool selection and measurement.
●
Cine-loop function for dynamic analysis of embryonic development or lesion characteristics.
●

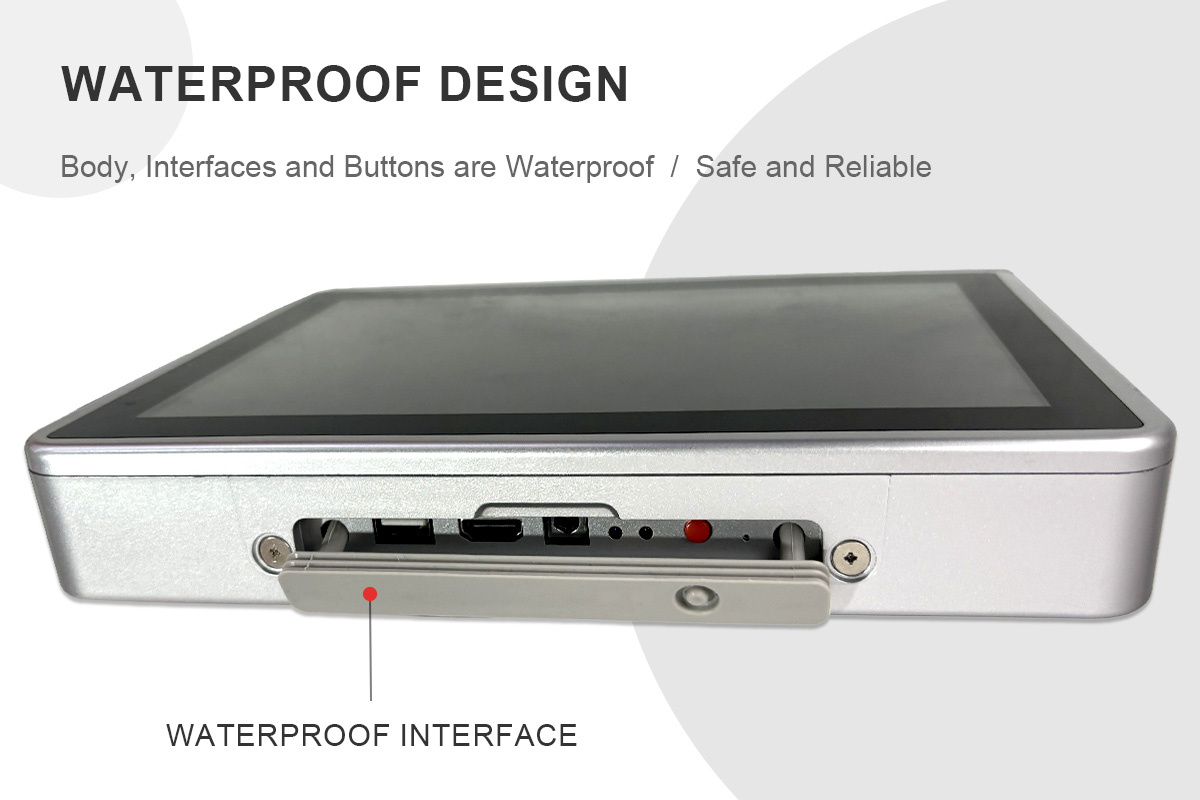

IPX6 waterproof body can be directly rinsed and sterilized, perfect for wet farm environments.
●
Wireless connectivity to printers via Bluetooth or network for easy output.
Optimize feed ratios and mating plans through quantitative data to reduce empty pregnancy rates, improve breeding success and meat quality, and thus reduce breeding costs.

Package Information

The product uses a PVC box to contain the main unit, probe, and accessories together. The PVC box is packaged in a cardboard box for transportation.
Dimension: 43*33*18cm | G.W.: 5kg
Packing List (Standard Configuration)
ItemQuantity
Veterinary ultrasound machine1
Convex probe1
Power Cord1
Adapter1
User Guide1
Product qualification certificate1
PVC box1
ECI-X8S Veterinary Color Doppler Ultrasound Scanner-detail 2
ECI-X8S Veterinary Color Doppler Ultrasound Scanner-detail 3

Frequently Asked Questions

Is the ECI-X8S suitable for use in farm environments?
Yes, the device features an IPX6 waterproof body, making it safe to rinse and sterilize in the typical wet and demanding environments of a farm.
How long does the battery last on a single charge?
The ECI-X8S veterinary ultrasound machine provides up to 6 hours of continuous working time on a full charge.
What imaging modes does this ultrasound machine support?
It supports multiple imaging modes including B, C (Color Doppler), PW (Pulse Wave Doppler), M-mode, and BB.
Can I measure back-fat thickness with this device?
Absolutely. It includes a specialized back-fat measurement function that can output data in as little as 3 seconds.
What is the display quality of the screen?
The machine is equipped with a high-definition 10.1-inch screen with a resolution of 1920*1080 for clear diagnostic imaging.
How many probes can be used with the ECI-X8S?
It supports a variety of optional probes including Convex, Micro-convex, Linear, Rectal, OPU, and specialized Back-fat probes to suit different animals and clinical needs.
