Wholesale ECI-X7 Factory Supply Color Doppler Veterinary Ultrasound Scanner Machine Supplier, Exporters
Wholesale ECI-X7 Factory Supply Color Doppler Veterinary Ultrasound Scanner Machine Supplier, Exporters
Wholesale ECI-X7 Factory Supply Color Doppler Veterinary Ultrasound Scanner Machine Supplier, Exporters
1 / 3
Wholesale ECI-X7 Factory Supply Color Doppler Veterinary Ultrasound Scanner Machine Supplier, Exporters
Wholesale ECI-X7 Factory Supply Color Doppler Veterinary Ultrasound Scanner Machine Supplier, Exporters
Wholesale ECI-X7 Factory Supply Color Doppler Veterinary Ultrasound Scanner Machine Supplier, Exporters

Wholesale ECI-X7 Factory Supply Color Doppler Veterinary Ultrasound Scanner Machine Supplier, Exporters

● The device is equipped with an HDMI port, which can be connected using a data cable to export the information saved in the device.

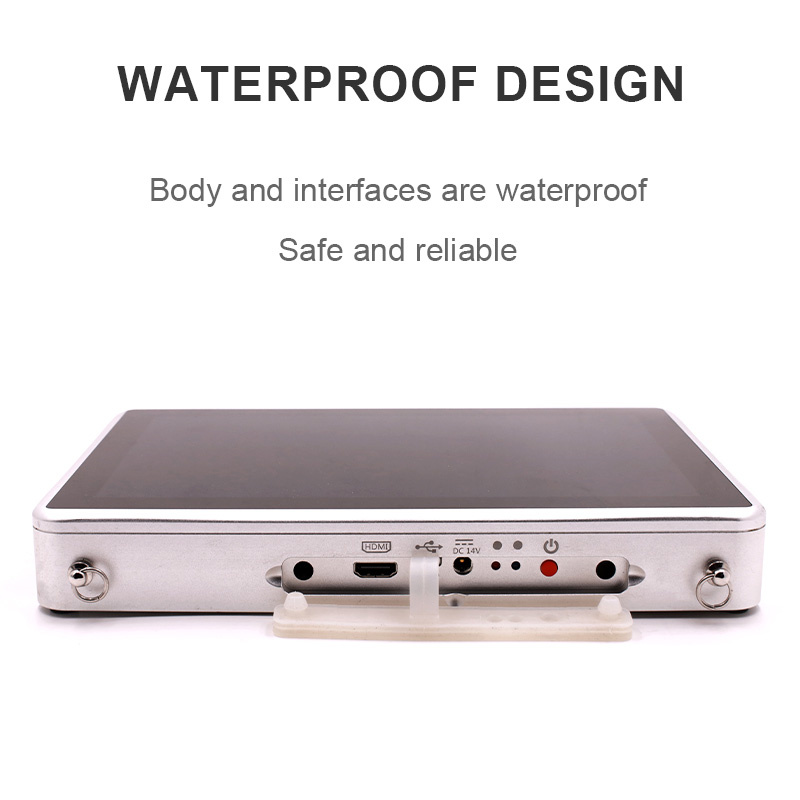

● The body is made of aluminium alloy with waterproof plugs on the ports. The whole machine is waterproof up to IPX6.
● B, M, C, PW, BB, BC display modes, 256 levels of image gray scale.

Send Inquiry

Product Description

Description
The ECI-X7 Veterinary Color Doppler Ultrasound Scanner is a multi-functional reproduction and meat quality assessment device for pigs, cattle, sheep and other animals. Equipped with a 10.1-inch touch screen and multi-frequency probes, the ECI-X7 supports accurate measurements of back-fat thickness, eye muscle area and gestational age, and its IPX6 waterproof design is suitable for complex working environments in farms.
The instrument applies microcomputer control and digital scanning converter (DSC), adopts digital beam synthesis (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound speed tracing (DRA), real-time point-by-point dynamic receiver focusing (DRF), CNC dynamic frequency scanning (DFS), frame correlation and other technologies, ensuring clear, stable, and high-resolution images.

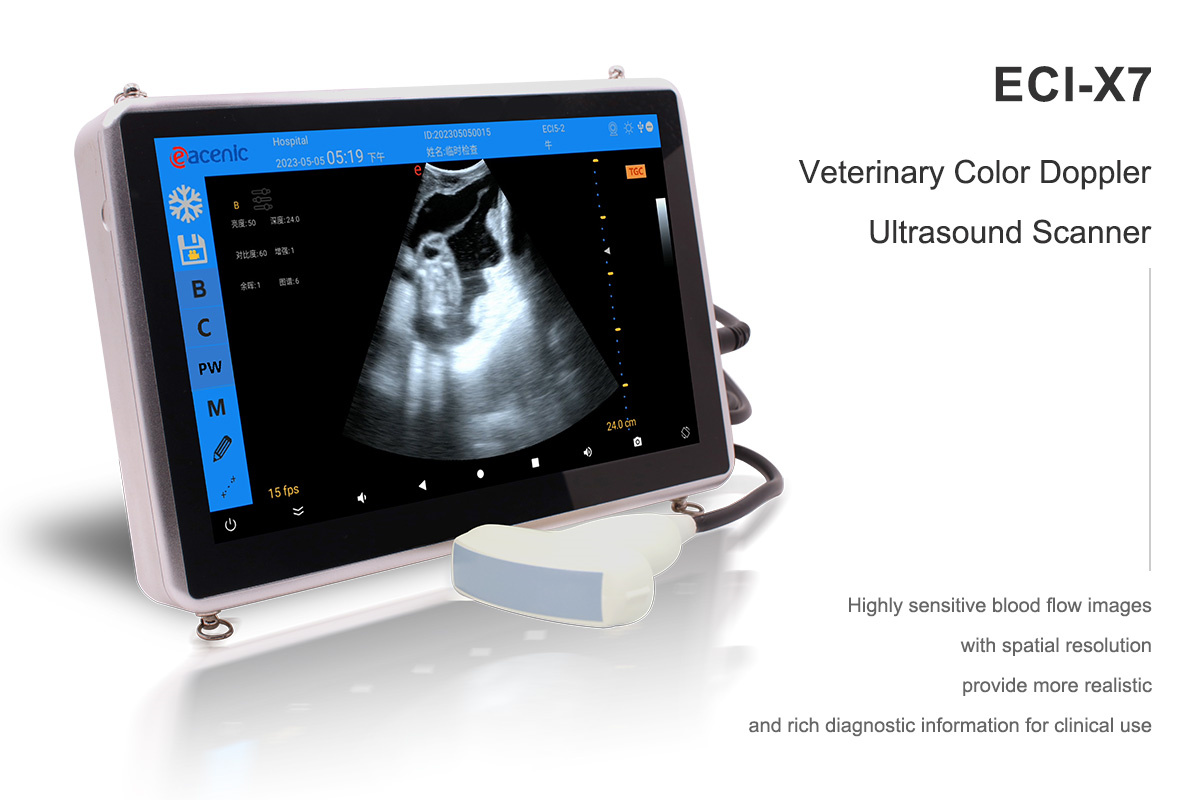

ECI-X7 Portable Veterinary Ultrasound Scanner Detail
Using Video
Technical Specification
Parameter Value
Type ECI-X7
Display 10-inch 1920*1080
Frequency 3.5~7.5MHz
Mode B, M, C, PW, BB, BC
Depth 60~240mm
Cine-loop 30~300s
Storage 64G
Channel 32
Measurement Back-fat thickness, Loin-eye muscle area, Perimeter, Diameter, Angle
Interface USB, HDMI
Weight 3kg
Optional Probes Details
6.5 MHz Rectal 3.5 MHz Convex 5.0 MHz Micro-convex 7.5 MHz Linear
L: 64mm, Element: 128, Freq: 5.5-7.5MHz R: 60mm, Element: 128, Freq: 2.0-5.0MHz R: 20mm, Element: 128, Freq: 3.0-8.0MHz L: 40mm, Element: 128, Freq: 6.5-10.0MHz
Key Usage & Benefits
● Pregnancy confirmation and fetus counting (30 days for cattle, 35 days for horses).
● Monitoring animal heart health and fetal growth to optimize fodder quantities.
● Post-birth checks to ensure no fetal deaths remain in the womb.
● Back-fat depth monitoring to manage feed efficiency and reduce wastage.
● Internal organ health monitoring for timely medical treatment.

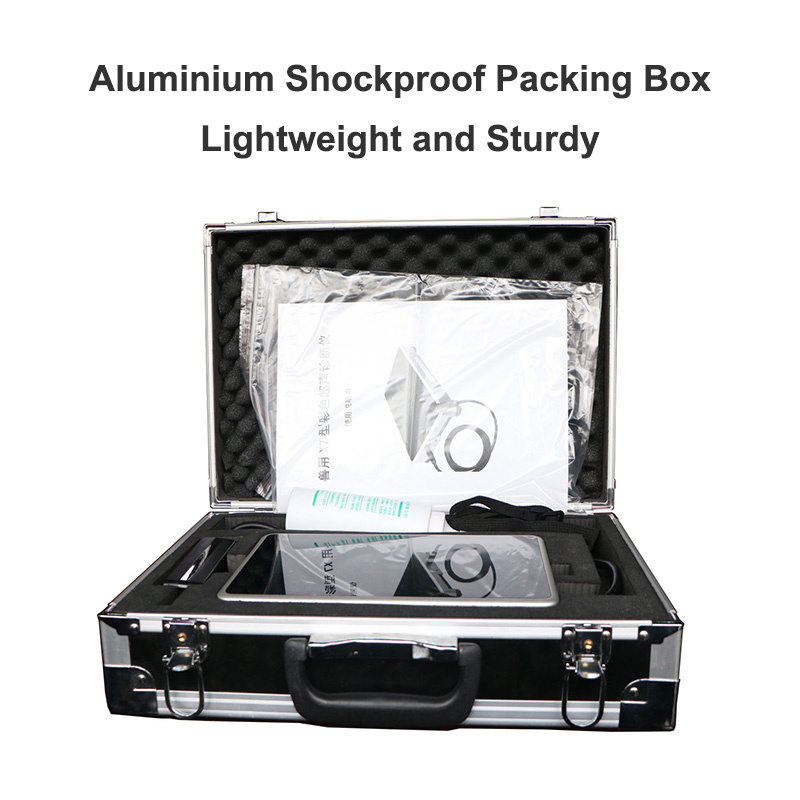

Package Details
Usage Demo
Applicable Animals & Probes
Ideal for pregnancy diagnosis, lesion monitoring, and back-fat thickness measurement in pigs, cattle, sheep, horses, cats, and dogs.
• 3.5MHz Convex Probe: Pigs, sheep, and large dogs.
• 6.5MHz Rectal Probe: Large animals such as cattle and horses.
• 5.0MHz Micro-convex Probe: Small animals like cats and dogs.
• 7.5MHz Linear Probe: Superficial diagnosis across various animal sizes.
Applicable Animals Ultrasound
Frequently Asked Questions
1. Which animals can the ECI-X7 be used for?
It is designed for a wide range of animals including pigs, cattle, sheep, horses, cats, and dogs, with specialized probes for different animal sizes.
2. Can this device measure back-fat thickness?
Yes, the ECI-X7 supports accurate measurements of back-fat thickness and loin-eye muscle area, which are essential for meat quality assessment and feed control.
3. Is the ultrasound scanner waterproof?
The ECI-X7 features an IPX6 waterproof design, making it durable and suitable for the complex and often wet working environments found on farms.
4. What is the screen size and resolution?
The device is equipped with a high-definition 10.1-inch touch screen with a resolution of 1920*1080 for clear image display.
5. When can pregnancy be detected using this scanner?
Pregnancy can typically be determined as early as 30 days for cattle and 35 days for horses using the appropriate probes.
6. Does the device support data storage?
Yes, the ECI-X7 comes with 64G of internal storage and supports USB/HDMI interfaces for data export and external display.
