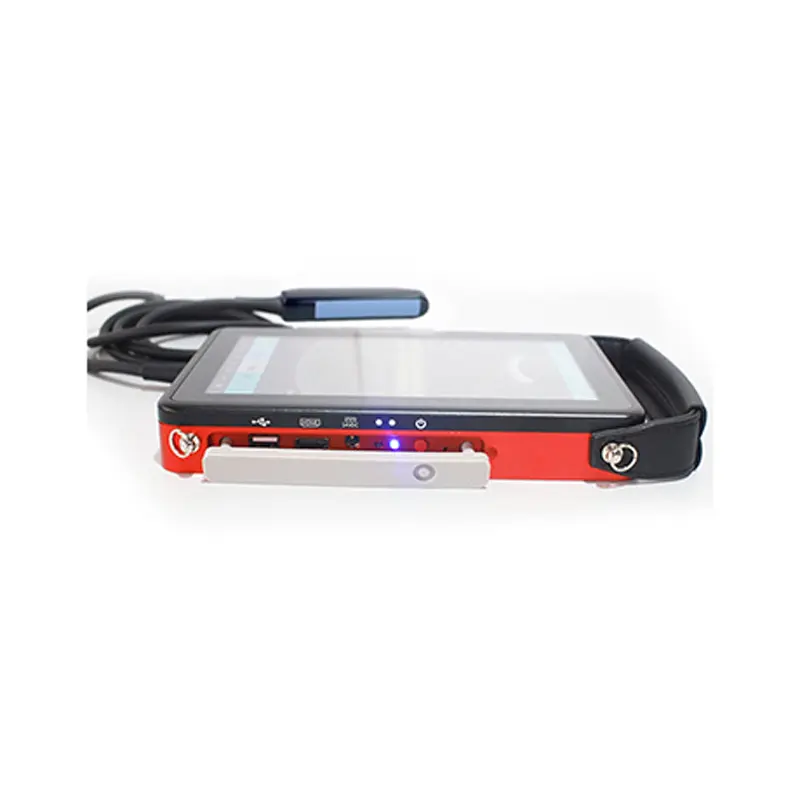

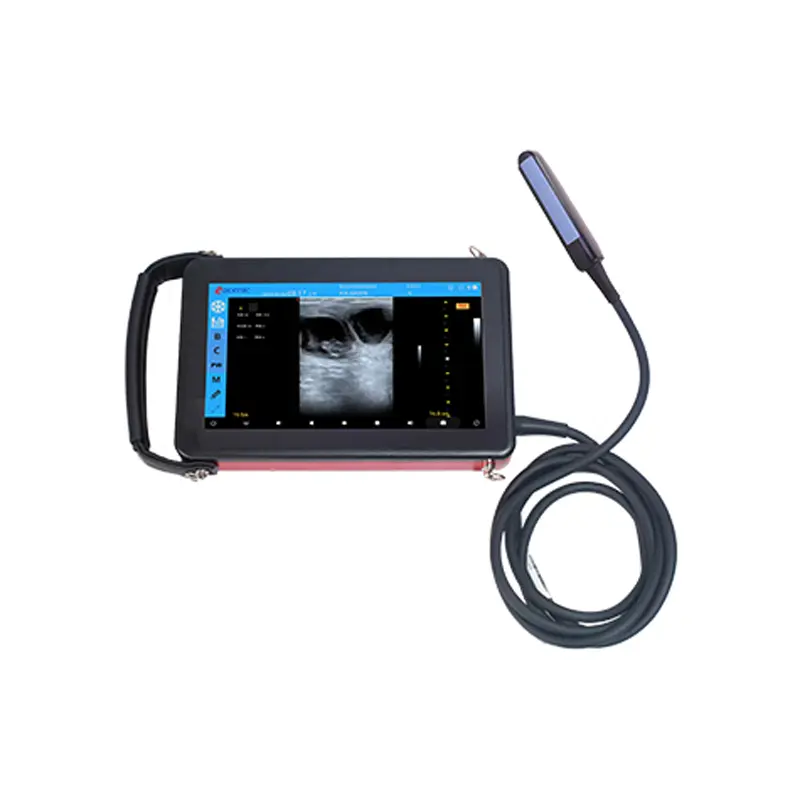

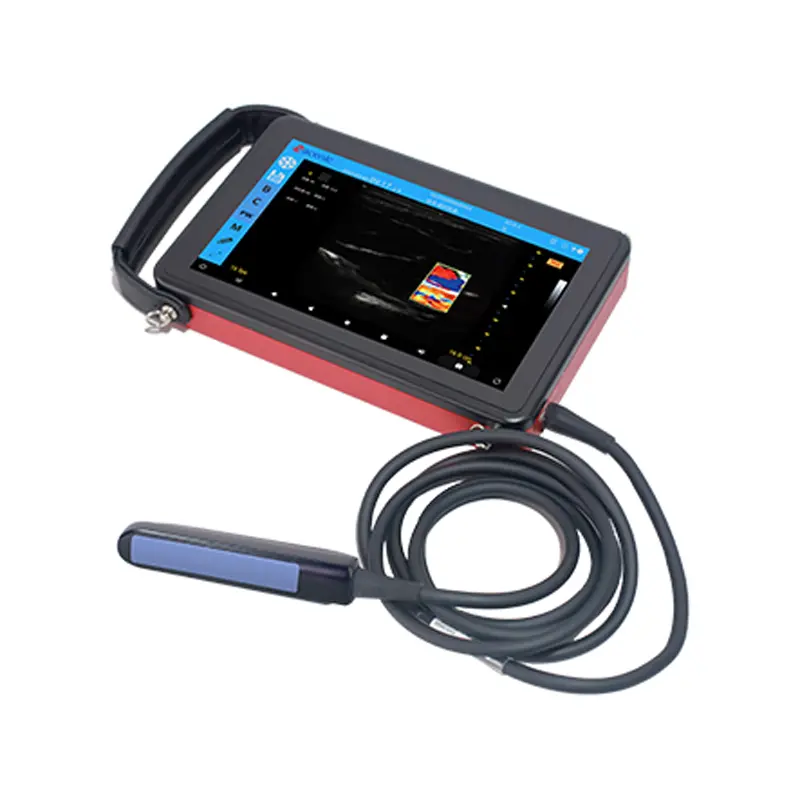

ODM ECI-X5S 128 Elements Color Doppler Veterinary Ultrasound Machine Manufacturer, Exporter

● Color Doppler Ultrasound
● Professional ruminant pregnancy test ultrasound scanner
● 8-inch high-definition touch screen, easy to operate
● IPX6 waterproof, the whole machine is aluminum alloy shell, the interface are waterproof treatment.
● 128-elements rectal probe, clear images

Product Description

About ECI-X5S Veterinary Ultrasound

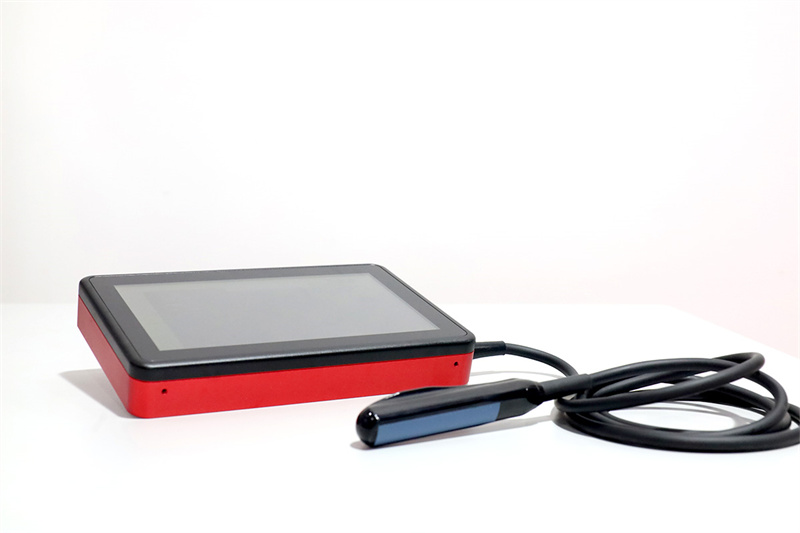

ECI-X5S Veterinary ultrasound machine is suitable for horses, cows, dogs, cats and other animals. The veterinary ultrasound machine is made of aluminum alloy, waterproof and corrosion resistant. ECI-X5S supports a variety of image modes and languages, which can be configured according to customer needs. 128-elements rectal probe, clear image, can measure follicles. Animal files can be created to facilitate the management of animal test information.
Veterinary Ultrasound Detail 1

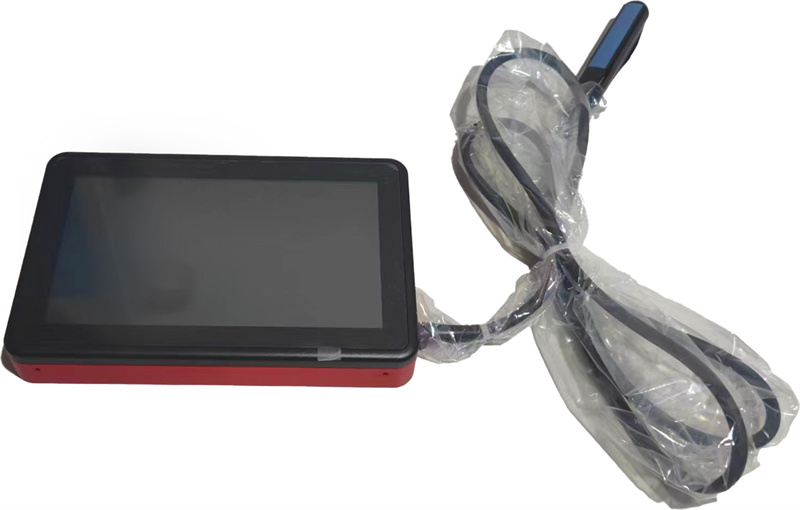

Veterinary Ultrasound Detail 2

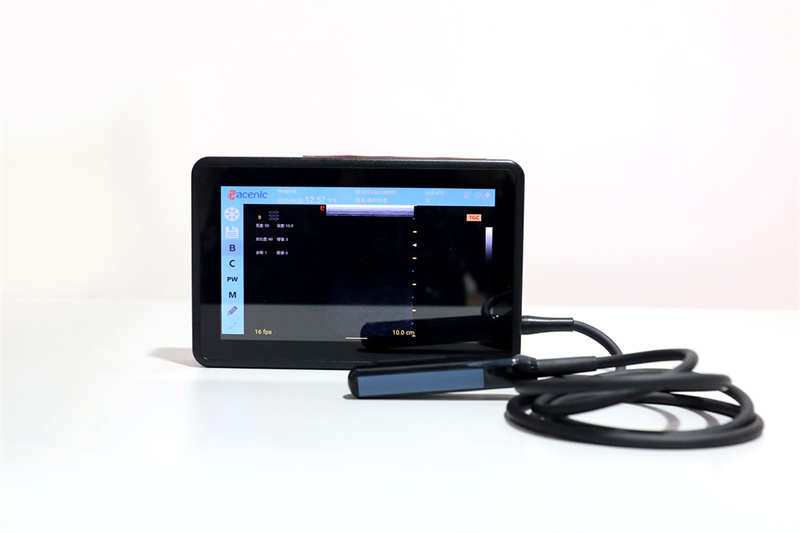

Veterinary Ultrasound Detail 3
Product Parameters
TypeECI-X5S
ProbeLNA64R/6.5MHz Rectal Probe
Element128 elements
Channel32
Depth (mm)30-120mm
Max Detection Depth≥100mm
Resolution (Lateral)≤1(depth≤60) ; 5≤(8≤depth≤130)
Resolution (Axial)≤1(depth≤80)
Dead Zone (mm)≤2
Display8.0 inch Touch Screen
Screen Resolution1024*720P
Display ModeB, B+B, B+M, M, C, PW
Cine-loop200 frame
Storage32G
Working Time5 hours
Size / Weight215*138*31mm / 1.5kg

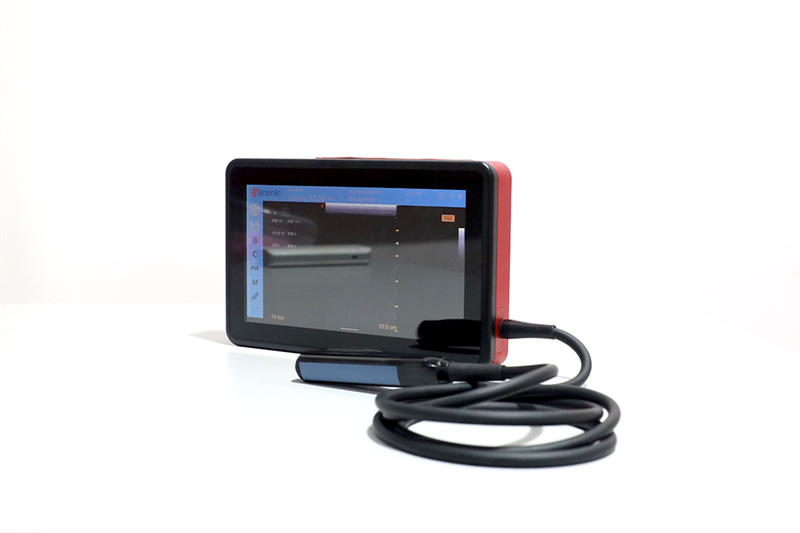

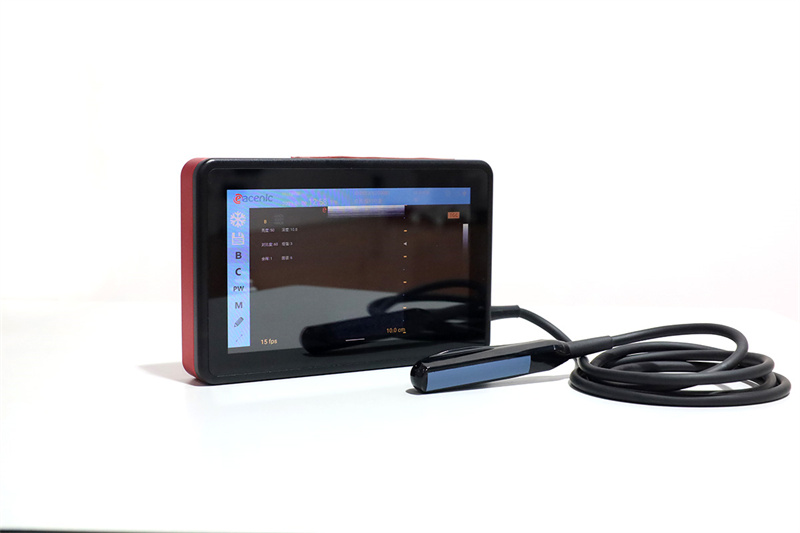

ECI-X5S Key Features
Supports multiple languages with configurable systems.
Advanced animal file management for quick retrieval.
Dual output interfaces: HDMI and USB 2.0 for data export.
Multiple Testing Modes: B, B+B, B+M, M, C, PW.
Comprehensive measuring: Distance, area, angle, and volume.
24 kinds of body marks for precise inspection site labeling.
128 crystal probe for exceptionally clear imaging.
IPX6 waterproof design for the entire machine.

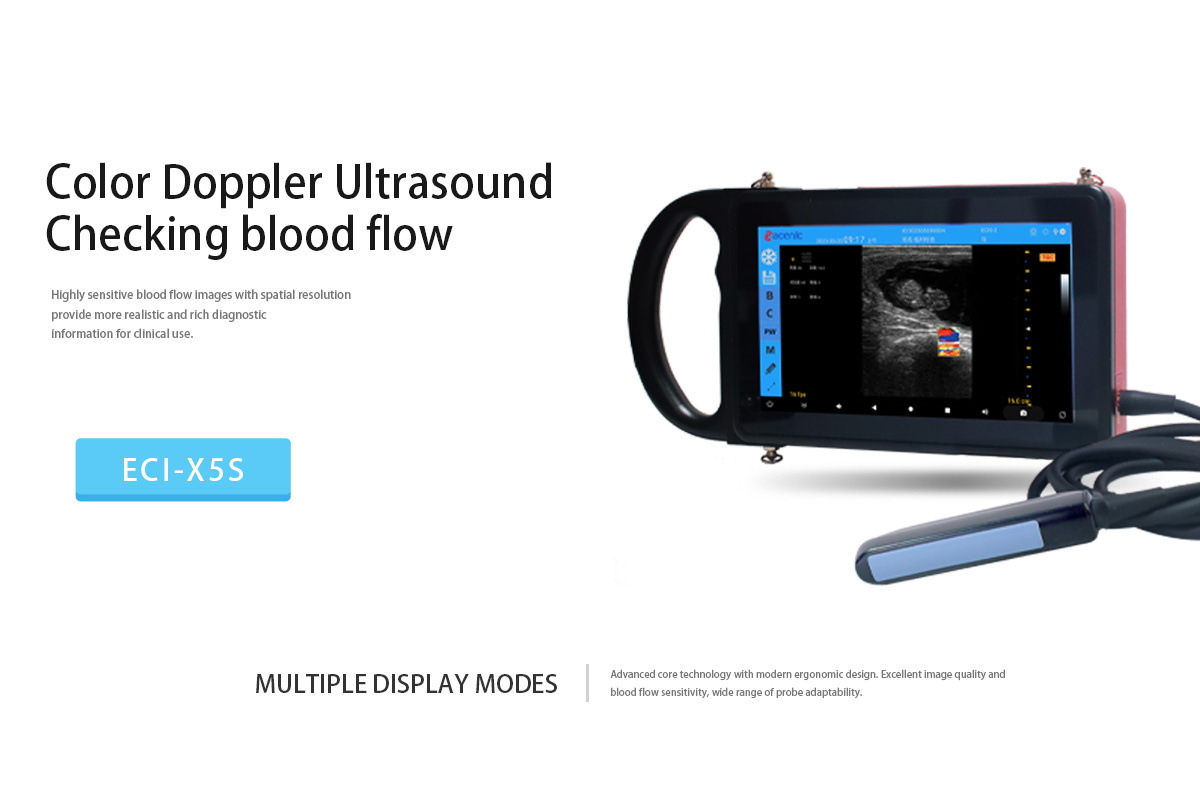

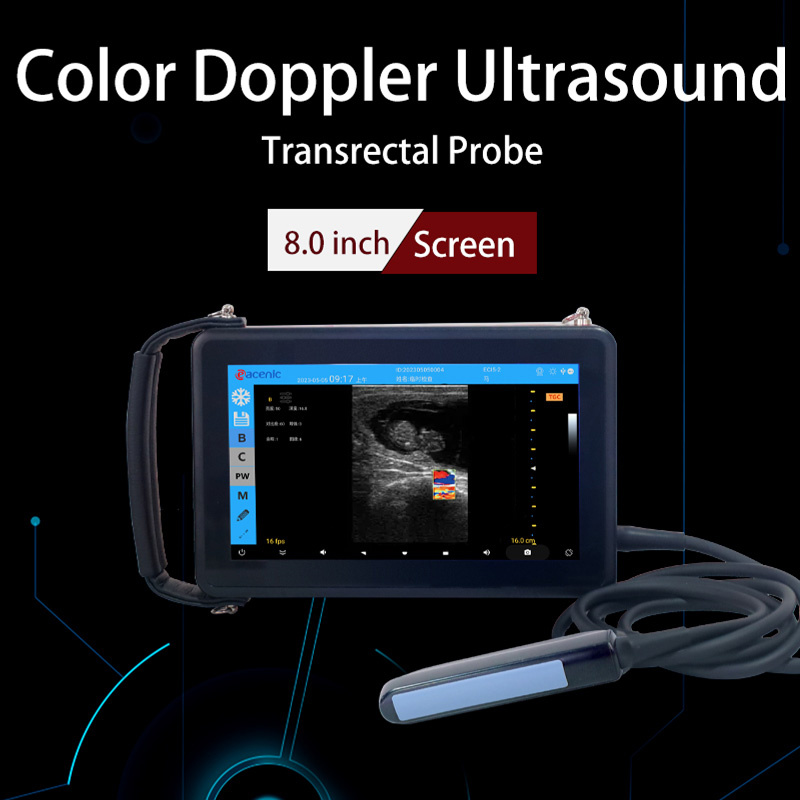

Color Doppler for real-time blood flow visualization.
Intelligent TGC adjustment for automatic image optimization.
Feature Detail 4
Feature Detail 5

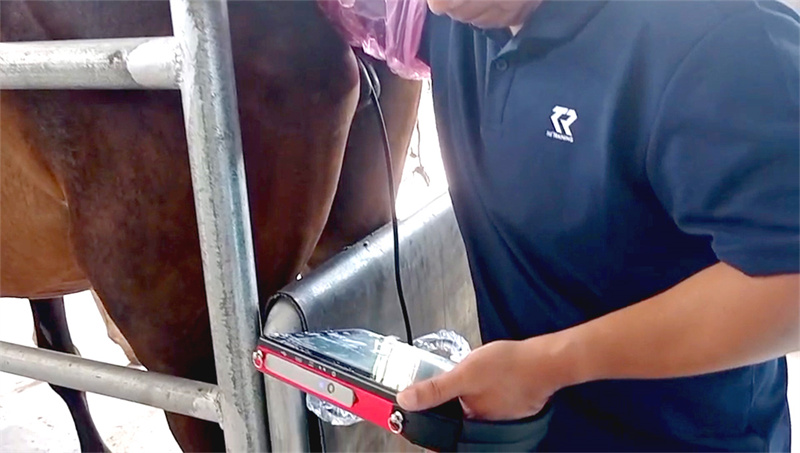

Feature Detail 6
Animal Applications

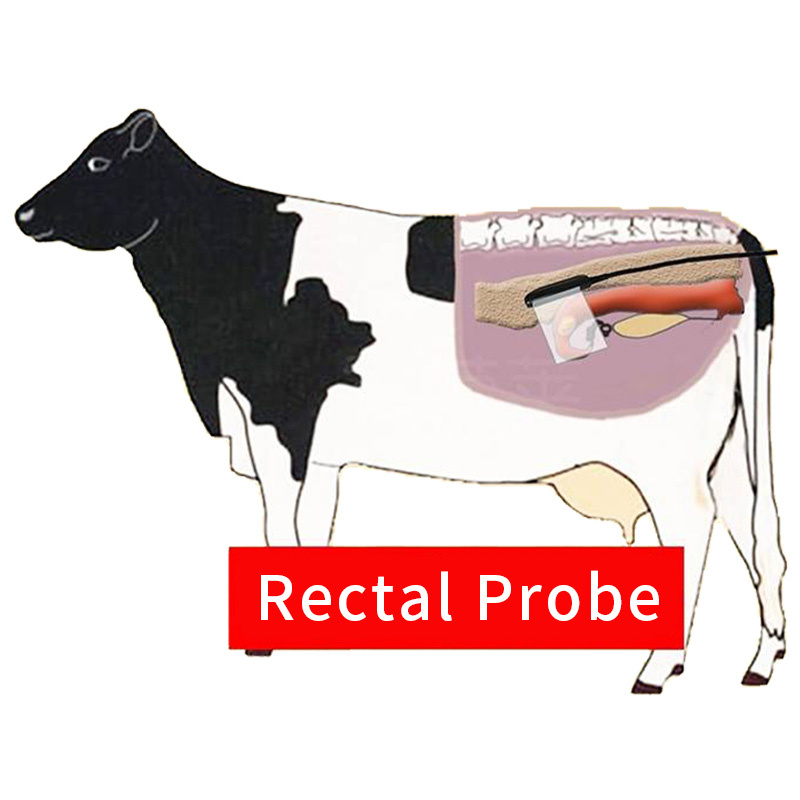

ECI-X5S animal ultrasound machine is suitable for pregnancy testing of large animals such as cattle and horses. It has a variety of measuring tools including area, circumference, diameter, and angle. Based on the data of follicle size measured by this tool to determine whether the animal is at the right time for fertilization. Judge the animal's uterus and pregnancy status by observing the images from the ultrasound scanner.
Application 7
Application 8
Application 9

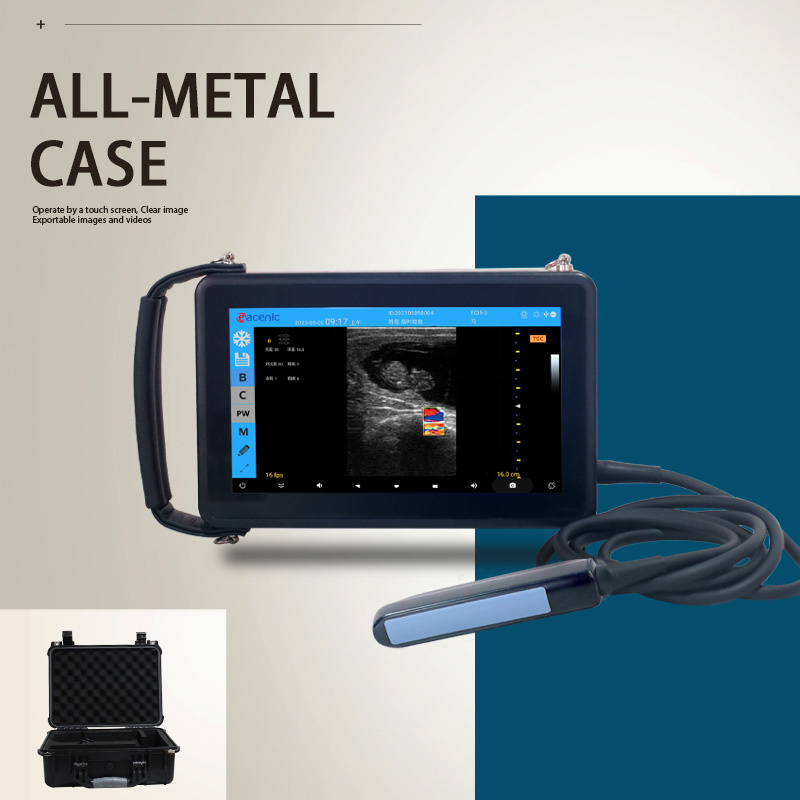

Application 10
Packaging & Shipping

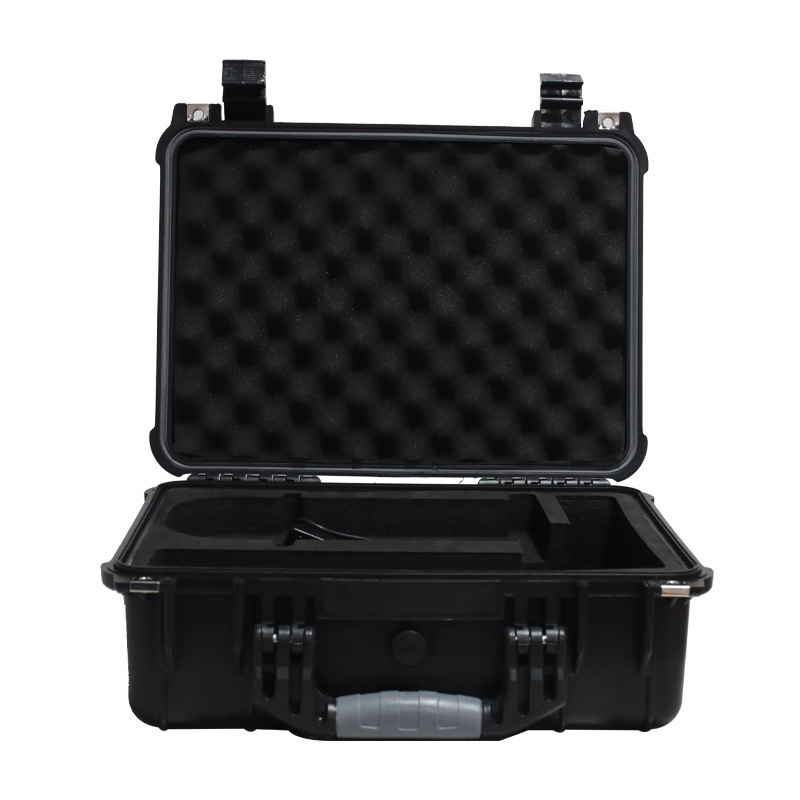

ECI-X5S veterinary ultrasound machine is packaged in shockproof boxes made of PVC and packed in formulated cartons for transportation. A variety of transportation channels can be selected, and the time limit is about 12-15 days.

Configuration: Main unit, rectal probe, power cord, adapter, user guide, certificate, PVC box.
Shipping Detail 11
Shipping Detail 12
Shipping Detail 13
Frequently Asked Questions
What animals can the ECI-X5S be used for?
It is suitable for a wide range of animals including horses, cows, pigs, sheep, dogs, and cats, specifically designed for pregnancy and follicle testing.
Is the device waterproof for field use?
Yes, the entire machine features a waterproof design with an IPX6 rating, making it durable for various veterinary environments.
How long does the battery last?
The ECI-X5S provides approximately 5 hours of continuous working time on a single charge.
What are the available display modes?
The machine supports B, B+B, B+M, M, C (Color Doppler), and PW modes to provide comprehensive diagnostic images.
Can I export the images and videos?
Yes, the device is equipped with HDMI and USB 2.0 interfaces, supporting the export of pictures and recorded videos (up to 5 minutes per recording).
What is included in the standard configuration?
The standard package includes the main unit, a 128-element rectal probe, power cord, adapter, user guide, certificate, and a shockproof PVC carrying box.
