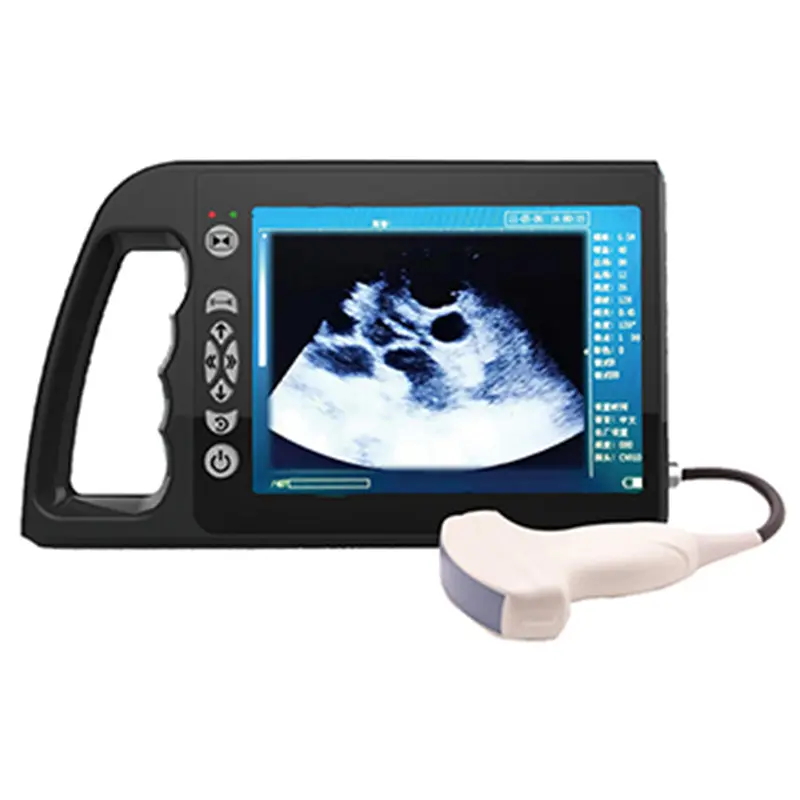

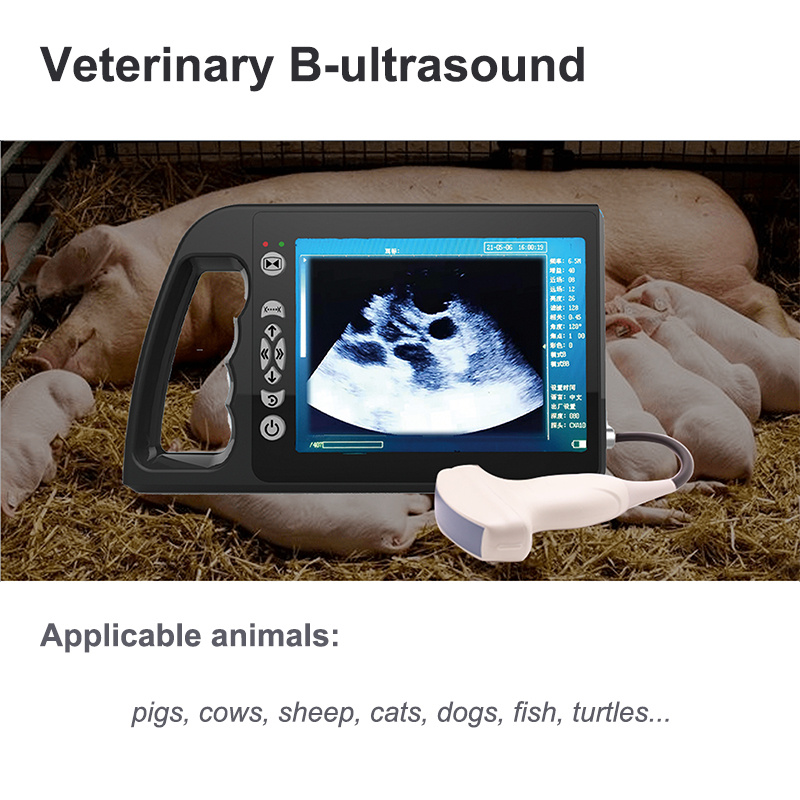

ECI-3000A+ Veterinary Ultrasonic Diagnostic Instrument is a pregnancy testing equipment designed for medium and large-sized animals such as pigs, cows and sheep, equipped with 8.0-inch high-definition screen and multi-frequency probe system, which supports back-fat measurement and pregnancy detection. The battery can be replaced and USB data export function is suitable for the efficient operation of farms, helping accurate breeding decisions.
● BOVINE: Gestation age estimation (Rectal probe required)
1. Clean out the excreta in cow's rectum.
2. Palpate and make an initial estimate of gestational status.
3. Hold the probe and insert it into the rectum firmly.
4. Move the probe until the uterine horn and body are shown.

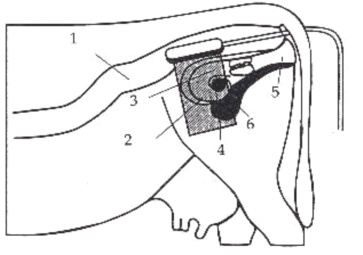

1. Rectum | 2. Uterine horn | 3. Uterine body | 4. Ovary | 5. Vagina | 6. Bladder
● SWINE: Gestation age estimation
1. Ensure the swine is standing. Clean the test position if necessary.

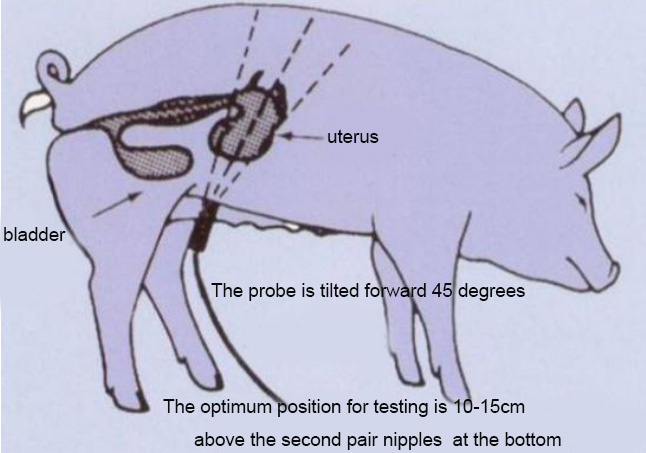

2. Position: 10-15cm above the second pair of nipples. Tilt probe 45 degrees.
3. Non-pregnant: Shows off-white uterus.
4. Pregnant: Early stage shows black gestational sac; late stage shows white bones.
Diagnostic Results Gallery

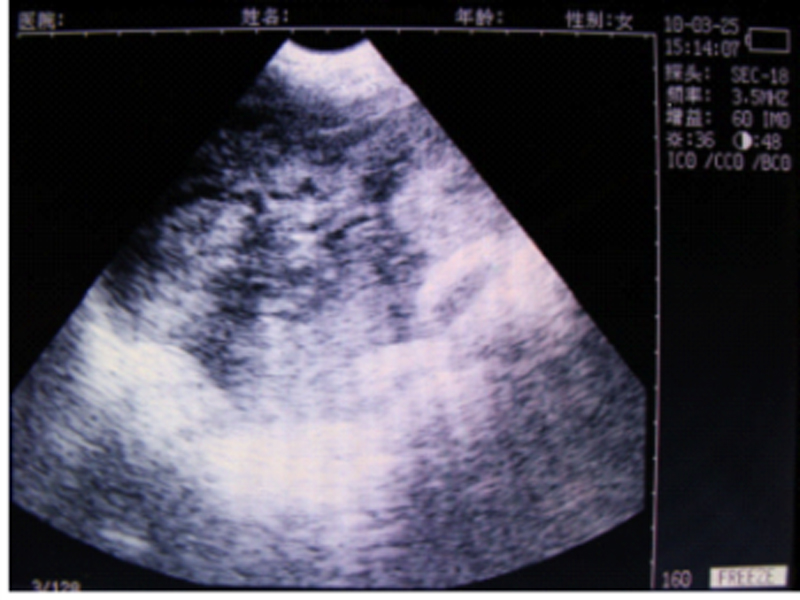

Non pregnant

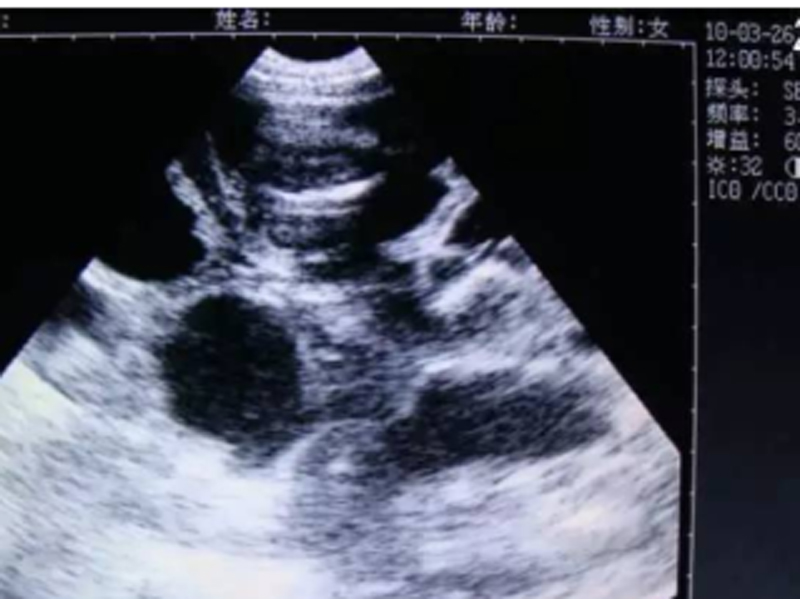

25 days after mating

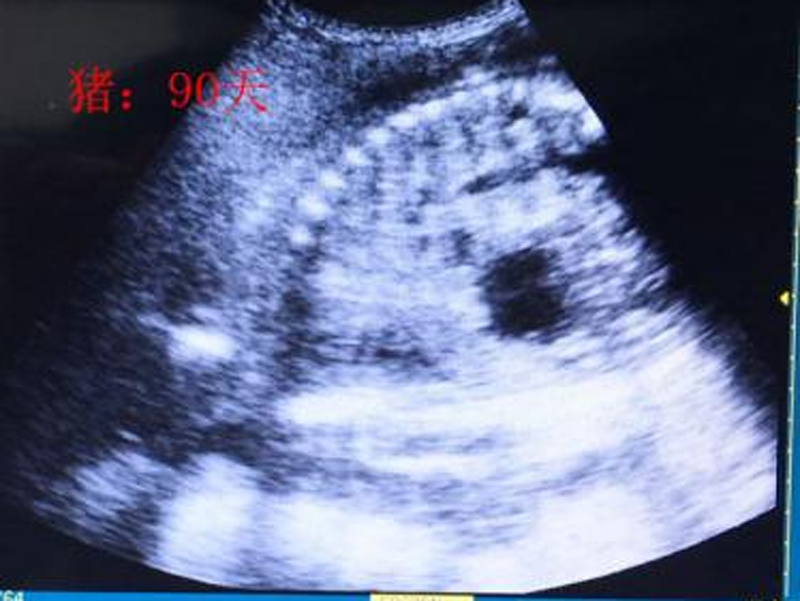

90 days after mating

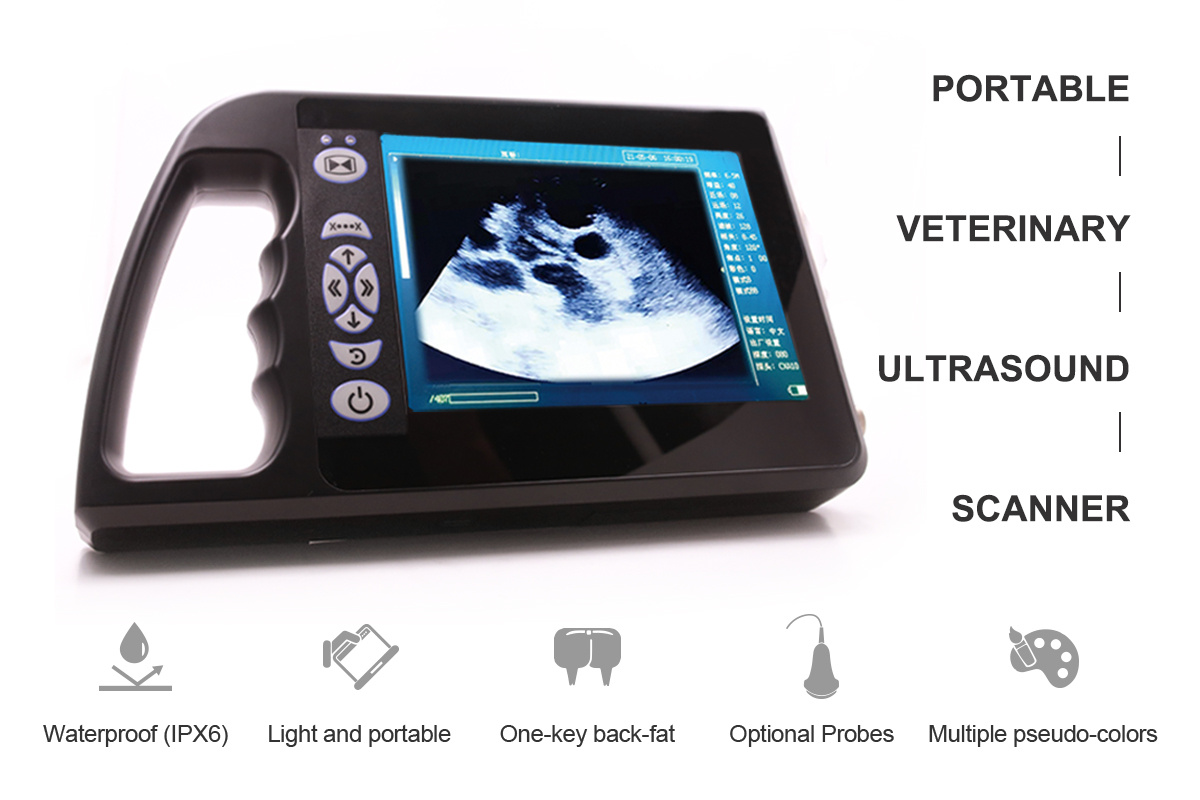

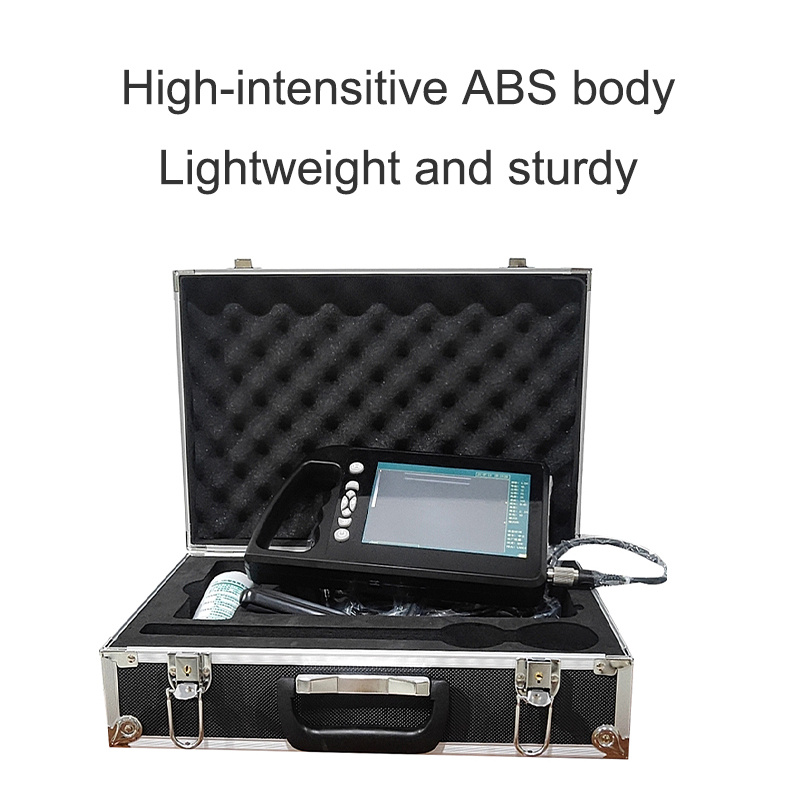

Equipment Detailed Views
FAQ
What animals can the ECI-3000A+ be used for?
It is specifically designed for medium and large-sized animals, primarily pigs, cows, and sheep.
How long does the battery last on a full charge?

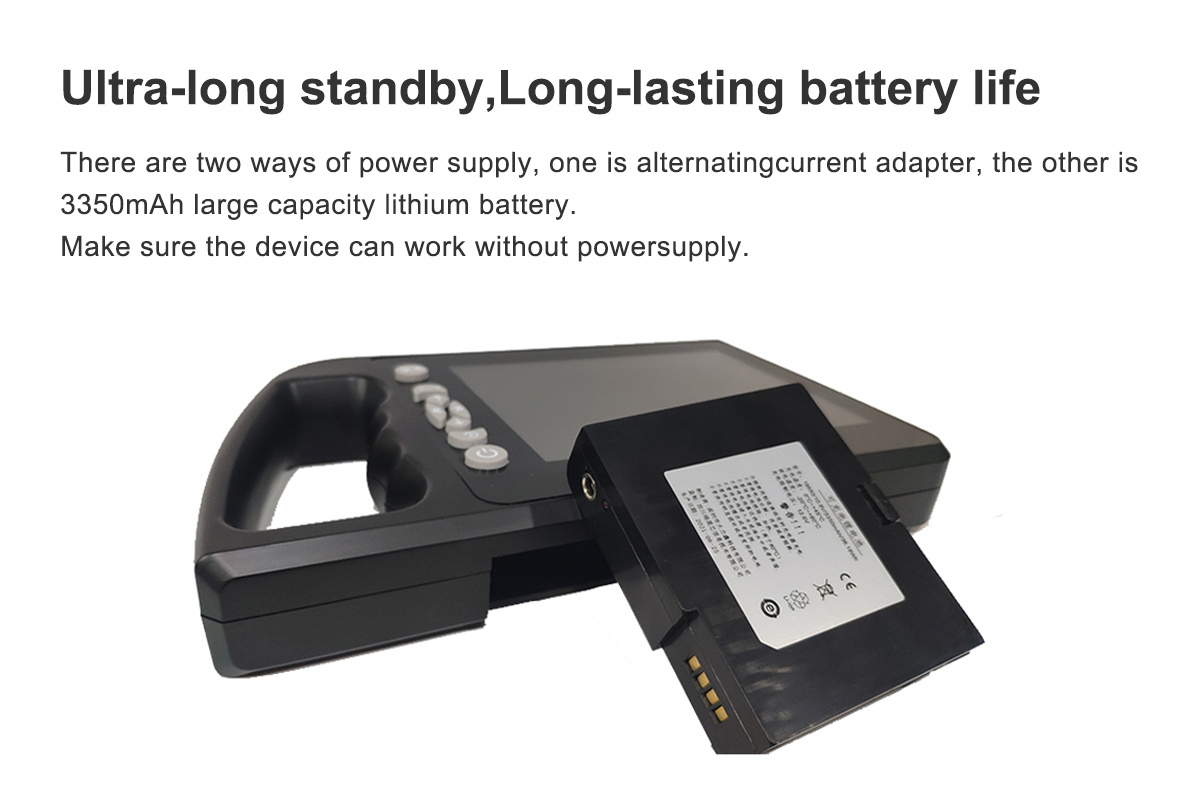

The instrument provides a working time of ≥4 hours, and the battery is replaceable for extended use.
Does this device support back-fat measurement?
Yes, it features a dedicated back-fat measurement function with an accuracy of ±1mm.
What are the storage capabilities for images and data?

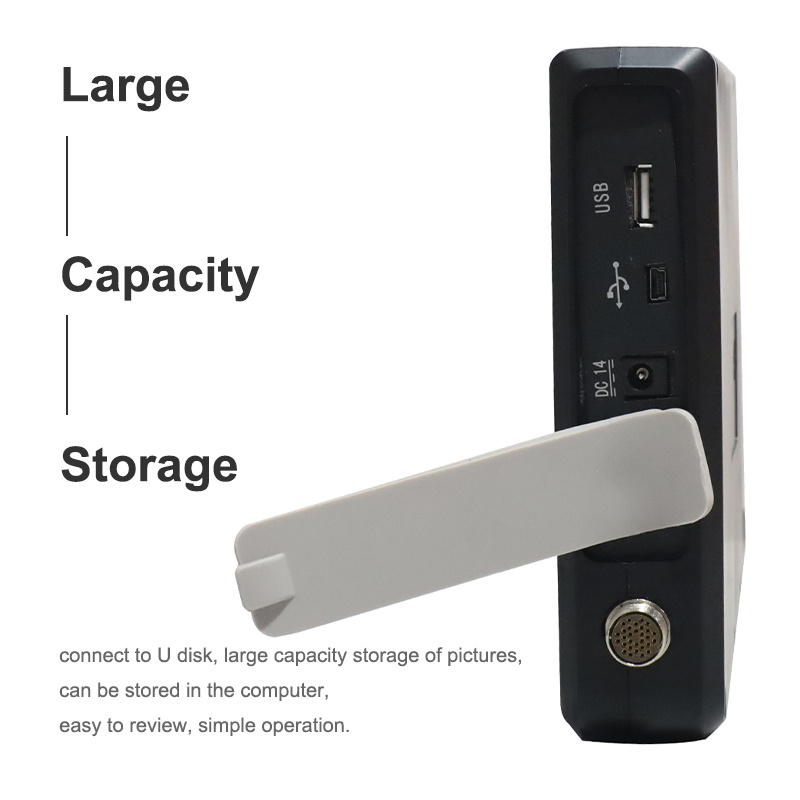

The device comes with 64G of internal storage and supports USB data export for efficient farm management.
Is the screen clear enough for outdoor use?

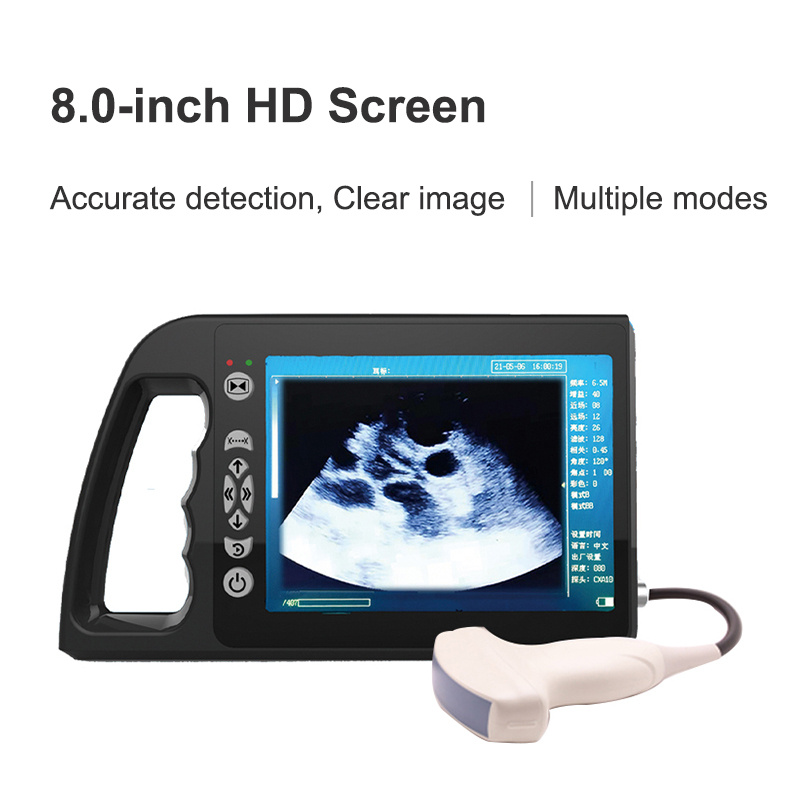

Yes, it is equipped with an 8-inch high-definition screen designed for clear diagnostic visualization in farm environments.
Which probes are available for different animals?

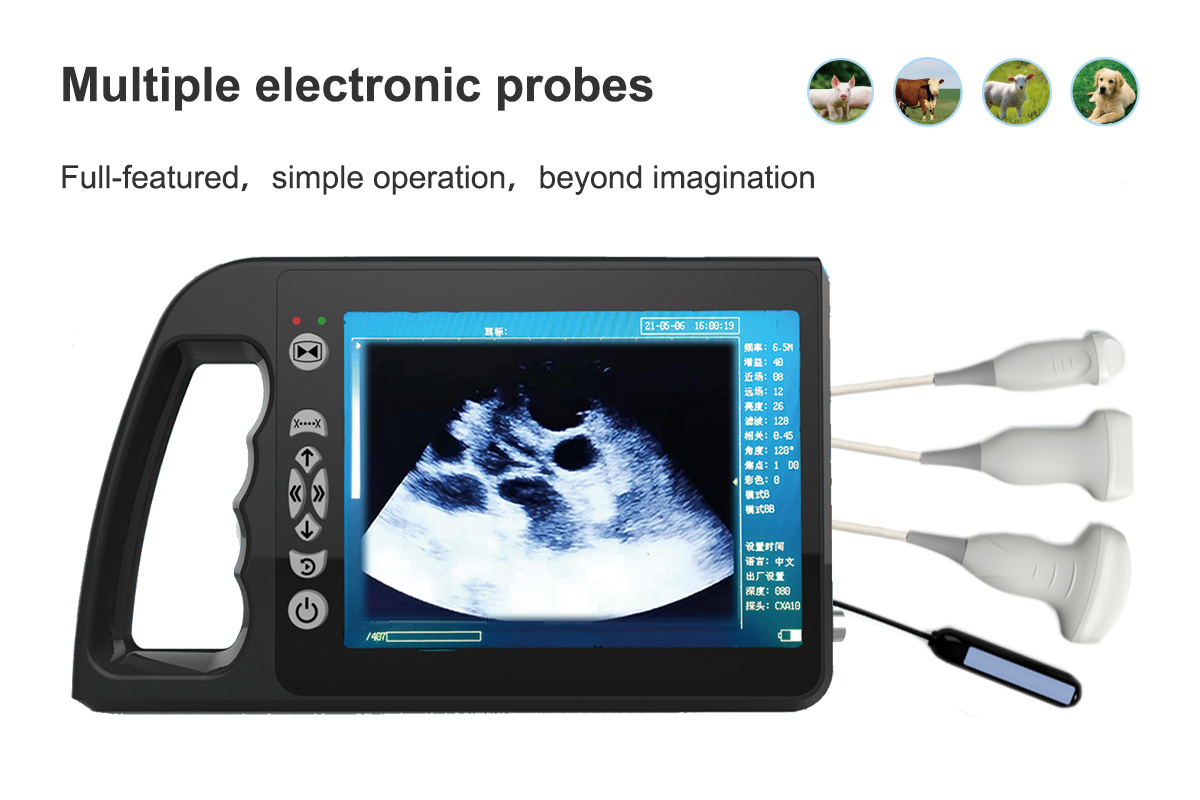

Options include 6.5MHz rectal, 7.5MHz linear, 3.5MHz convex, 5.0MHz micro-convex, and 6.5MHz intracavitary probes to suit various species and needs.
