Wholesale ECI-X7H Veterinary Ultrasound Machine with OPU Probe for Ovum Pick-up Manufacturer, Suppliers

● 256 crystal and 96 channel color Doppler veterinary ultrasound machine
● 10.1 HD touch screen
● Vacuum Pump accessories: wireless pedal, power supply, power cable, tube

Product Description

Veterinary Ultrasound Machine for OPU

ECI-X7H color Doppler Veterinary ultrasound machine for Ovum Pick-up supports in vivo egg collection and embryo transfer with precise guidance, which enhances the efficiency of genetic improvement and animal welfare, and adapts to the needs of modern animal husbandry. The Doppler color imaging technology of ECI-X7H veterinary ultrasound machine can display blood flow signals in real time, assisting in avoiding vascular areas and reducing the risk of bleeding during egg collection. 96-channel 256-crystal OPU ultrasound probe ensures a clear image, and compared with the traditional blind harvesting method, the use of effectively reduces ovarian damage and animal stress.

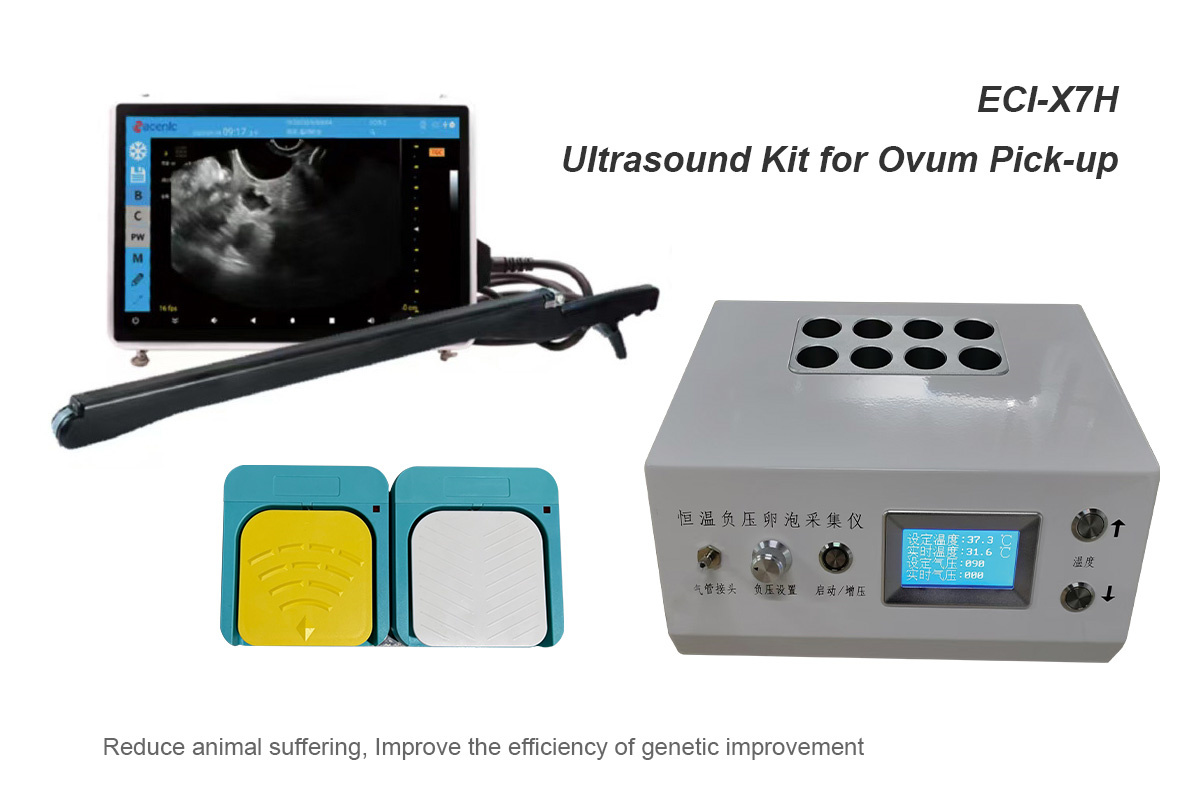

Veterinary Ultrasound Detail

Using Video

Parameter Specifications

Color Doppler Veterinary Ultrasound (ECI-X7H) Ovum Pick-up Vacuum Pump
Probe Features:
- 6.5MHz OPU probe (R9)
- 256 elements
- Frequency: 5.0-8.0MHz
- Scanning Depth: 2-100mm

Display & System:
- 10-inch 1920*1080 Screen
- Frequency: 3.5~7.5MHz
- Mode: B, C, PW
- Cine-loop: 30~300s
- Storage: 64G
- Channel: 32

Measurements:
- Back-fat thickness, Loin-eye muscle area
- Perimeter, Diameter, Angle

Physical Specs:
- Dead zone: ≤1mm
- Interface: USB, HDMI
- Size: 330*210*35mm | Weight: 3kg
Electrical & Temp:
- Voltage: 200-240VAC (50-60Hz)
- Rated power: 120VA
- Temperature Range: 35.0-40.0℃
- Default Temp: 37.0℃
- Accuracy: ±0.5℃ (Step ±0.1℃)

Pressure System:
- Negative pressure range: 0-200mmHg
- Recommended pressure: 60-150mmHg
- Pressure error: ±5mmHg
- Max. negative pressure: ≥500mmHg

Capacity & Dimensions:
- No. of test tube wells: 8pcs
- Size: 310*260*150mm
- Weight: 8.38Kg

Operation of Vacuum Pump

1. Connection: Connect the gas tubes tightly before switching on. Thick tube (silicone, ID 4mm) and thin tube (silicone, ID 1.8mm). Tube A is an empty bottle; Tube B liquid should be <30mL.
2. Setup: Connect power, check LCD. Default is 37.0℃. Use arrows to adjust temperature if needed.

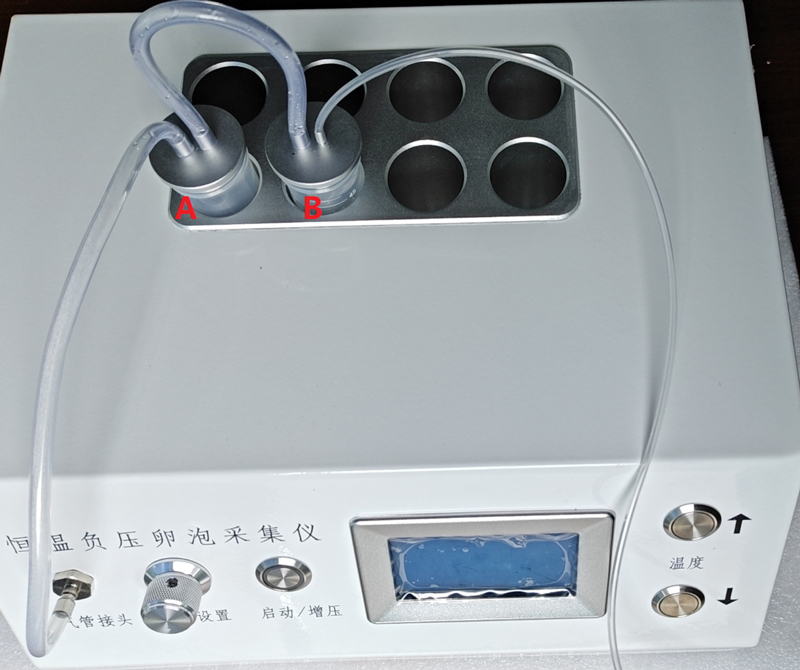

Vacuum Pump Connection
3. Pressure Adjustment: Use the knob to set negative pressure (0-200mmHg). Clockwise increases, anti-clockwise decreases.
4. Activation: Once temp is stable (error <±0.5℃), use the wireless foot switch or start button. Begin egg collection when pressure difference is <±5mmHg.
5. Monitoring: Use a thermometer to ensure collection tube temperature is within 36-38°C.
6. Clog Relief: If the line blocks, use the yellow foot switch or long-press boost (>3s) for maximum pumping force.
Note: Prevent liquid from entering the main unit to avoid damaging the air pump.

Application & Details Gallery

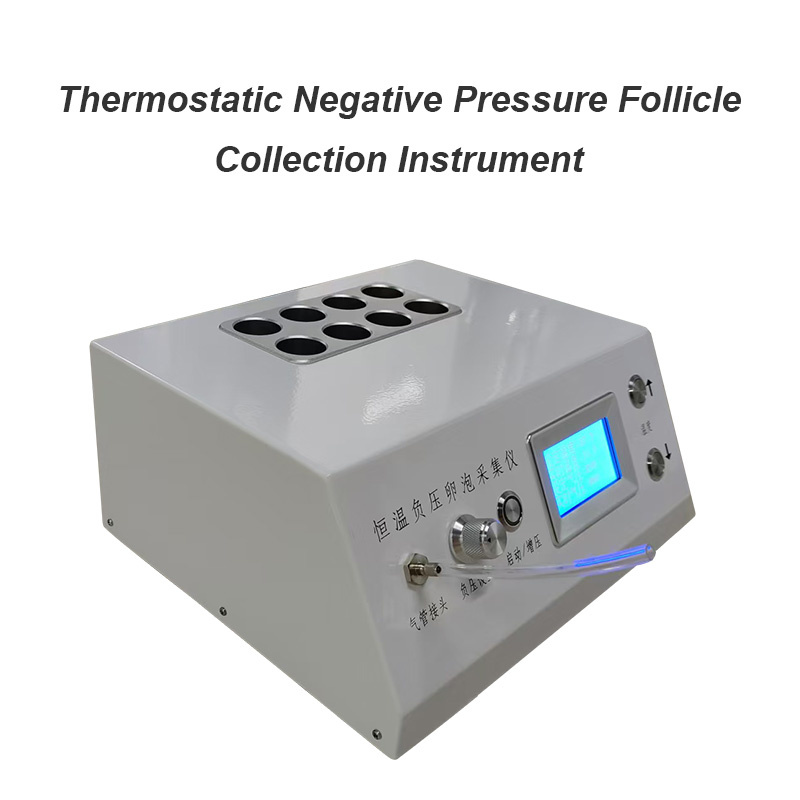

Detail 2

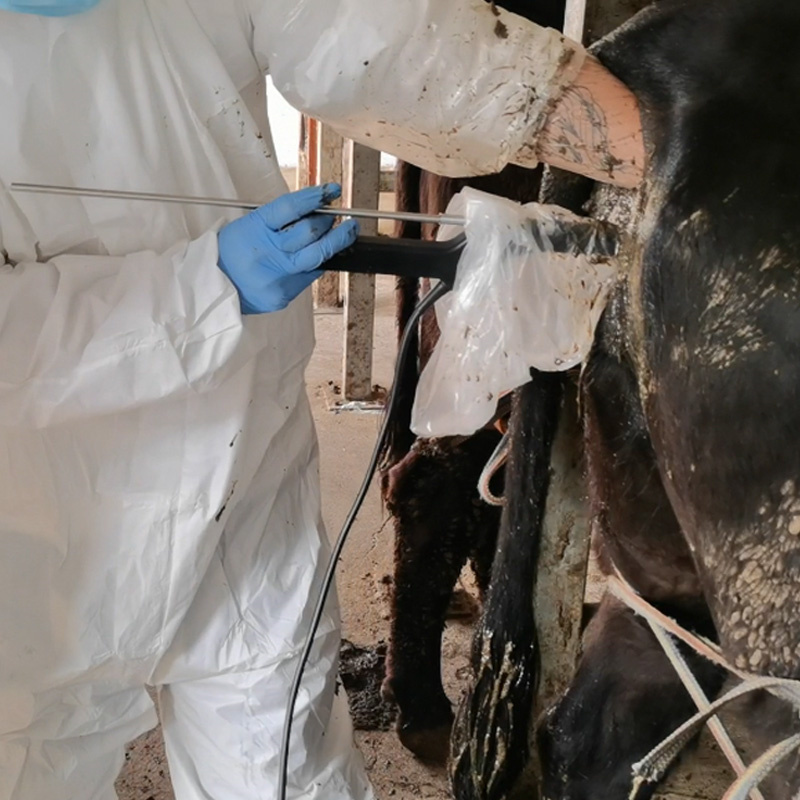

Detail 5

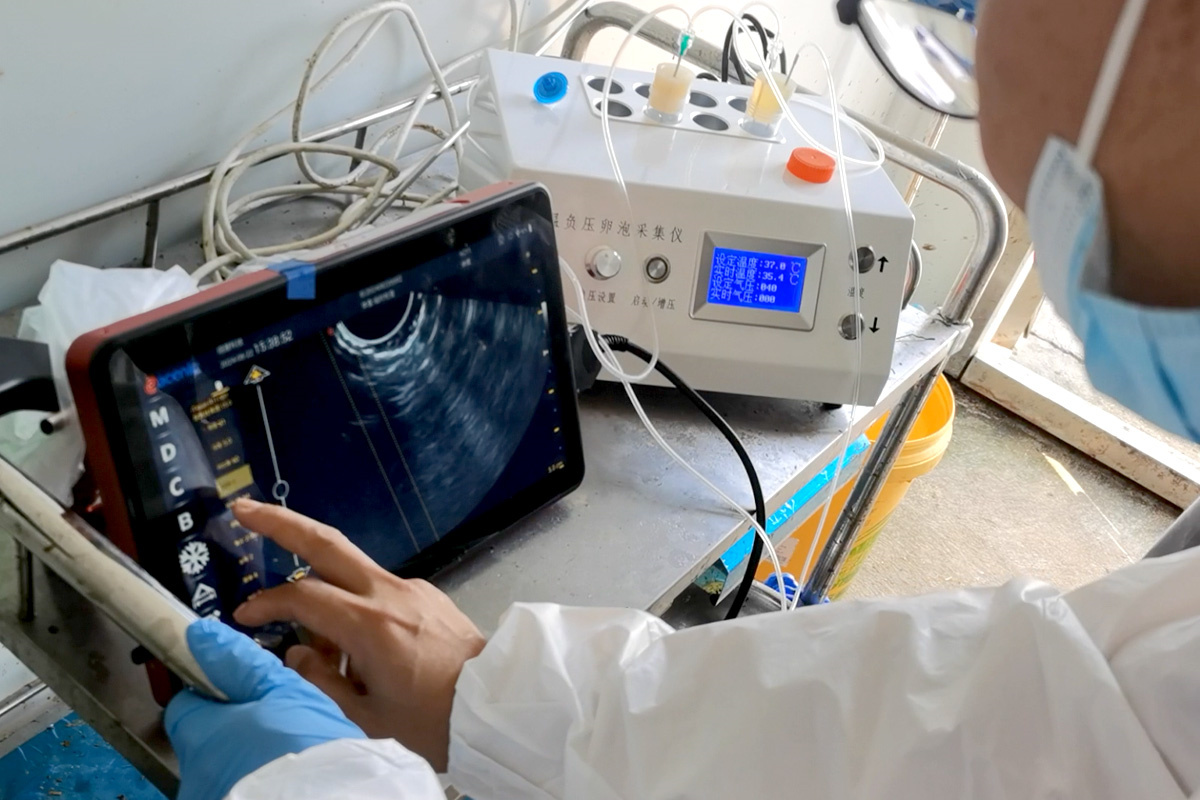

Detail 3

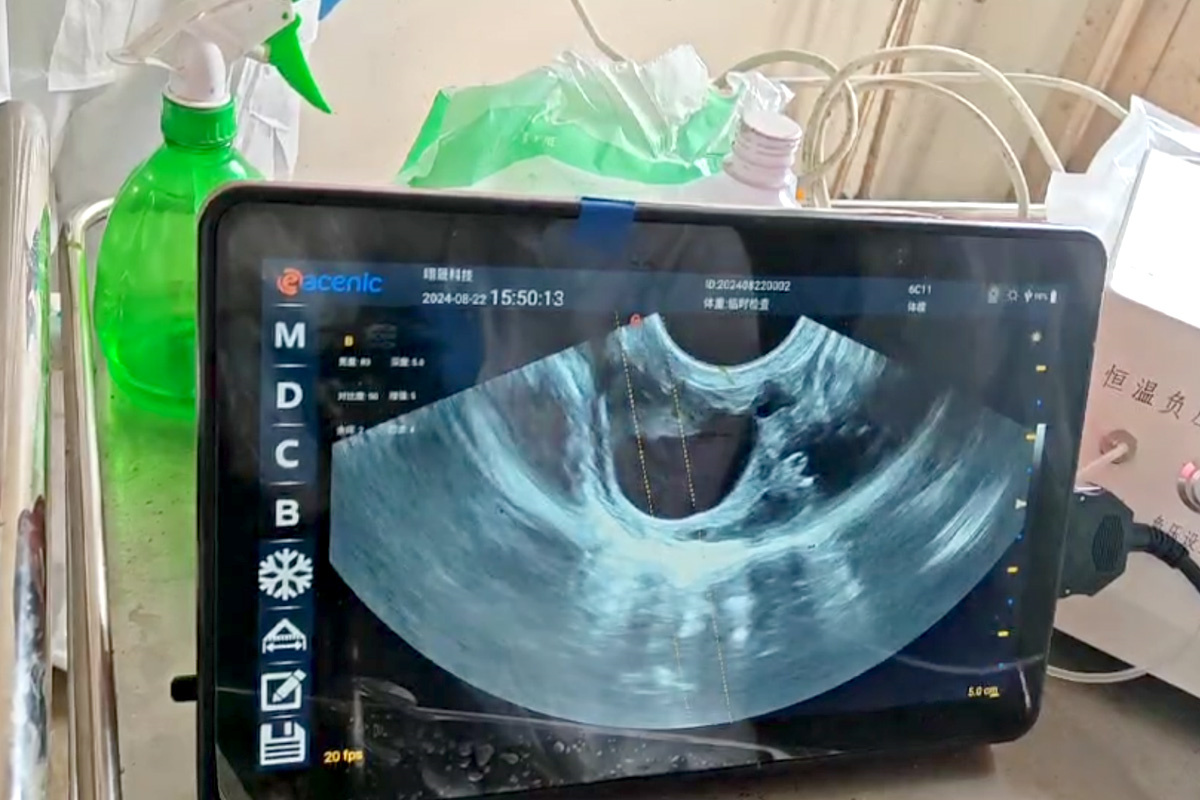

Detail 4

Frequently Asked Questions

Q1: What is the primary application of the ECI-X7H ultrasound machine?
It is specifically designed for Ovum Pick-up (OPU), supporting in vivo egg collection and embryo transfer with high-precision guidance.
Q2: How many crystals does the OPU ultrasound probe have?
The machine utilizes a high-performance 96-channel 256-crystal OPU probe for exceptionally clear imaging.
Q3: What imaging modes are available on this machine?
The ECI-X7H supports B, C (Color Doppler), and PW modes to assist in real-time blood flow signal monitoring.
Q4: What is the recommended operating temperature for the vacuum pump?
The recommended operating temperature for the collection tubes is between 36°C and 38°C, with a default setting of 37.0°C.
Q5: How many test tubes can the vacuum pump handle at once?
The integrated thermostat test tube rack can accommodate up to 8 test tubes simultaneously.
Q6: What should I do if the suction line gets blocked during operation?
You can use the yellow foot switch or long-press the boost button for more than 3 seconds to trigger maximum pumping force and clear the blockage.
