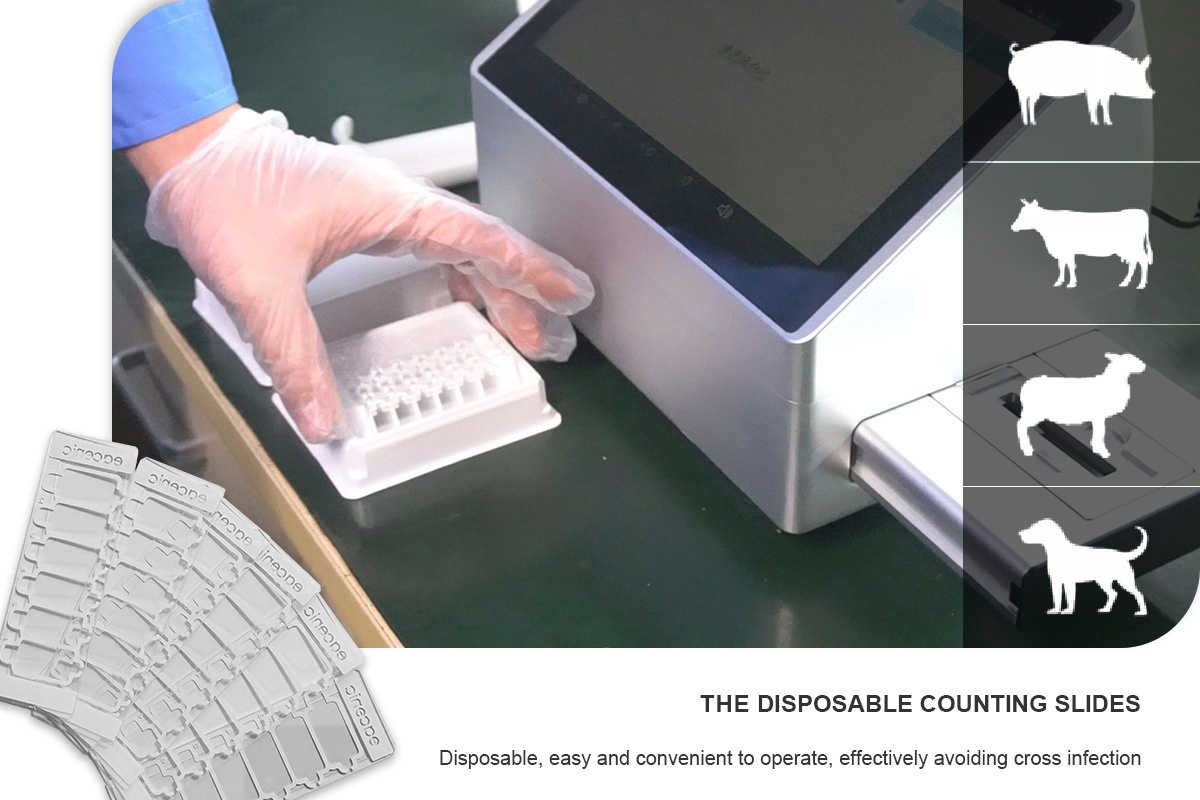

The ECI-J6310 Disposable Counting Slide is a multi-cavity consumable designed for sperm quality analyzer with easy handling and high testing capacity. It reduces the amount of sample required during testing. The separation between chambers avoids the risk of cross contamination between samples. Available in four different sizes, 4, 5, 6 and 8 chambers, it allows multiple samples to be tested at once. This provides a new solution in the field of semen testing in the livestock industry and effectively improves the efficiency of semen testing.
Product Parameters
Parameter

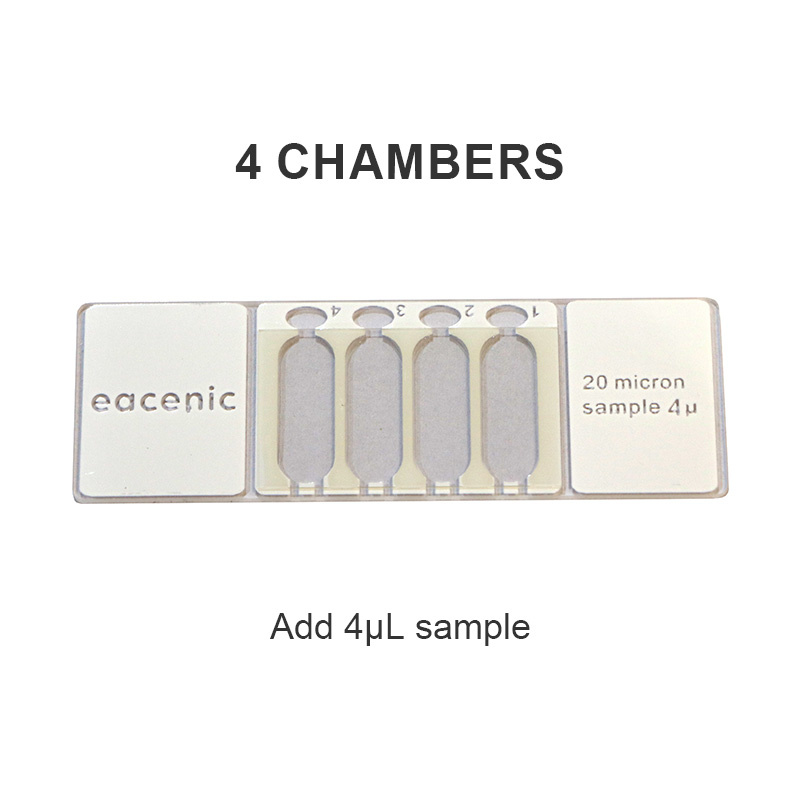

4 chambers

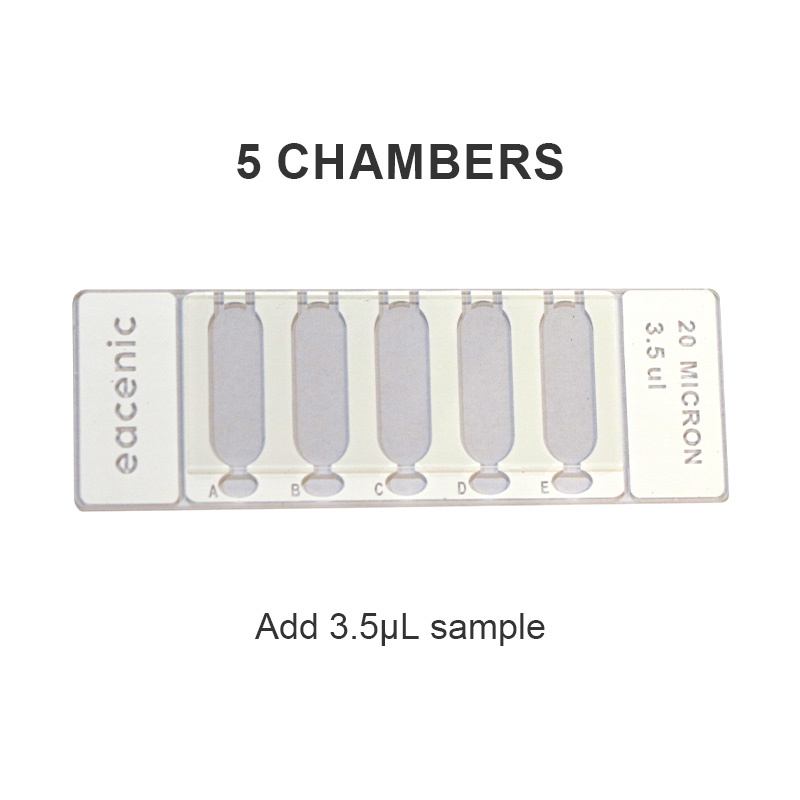

5 chambers

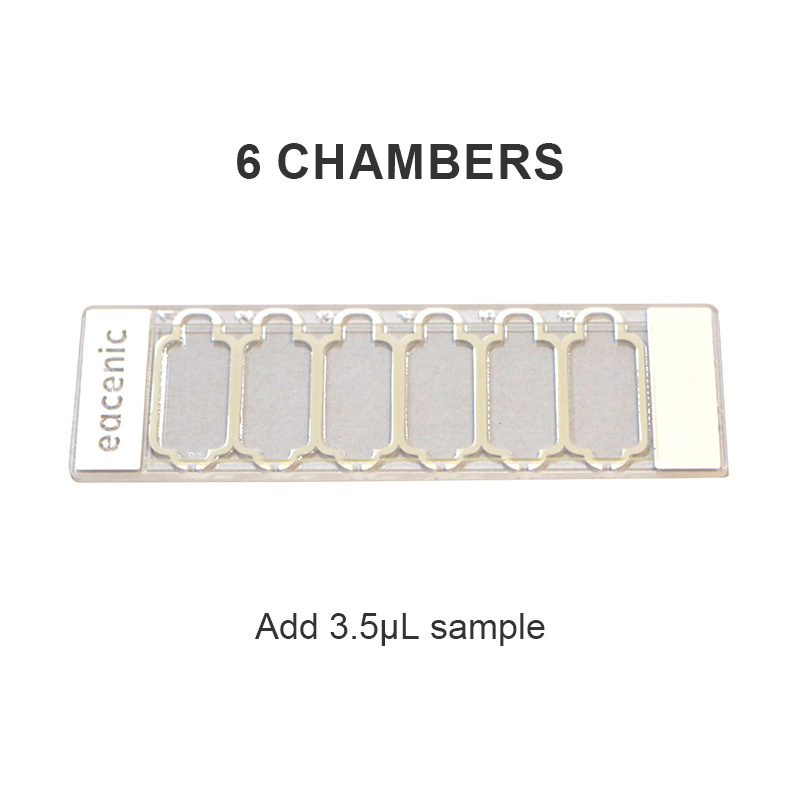

6 chambers

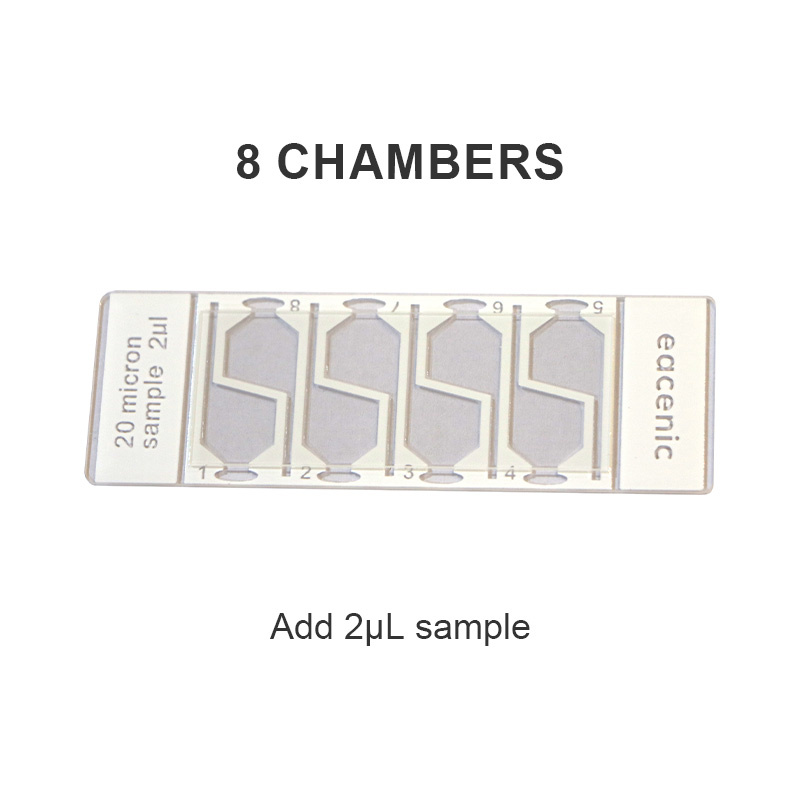

8 chambers
Height
20±2μm
20±2μm
20±2μm
20±2μm
Sample Volume
4μl
3.5μl
3.5μl
2μl

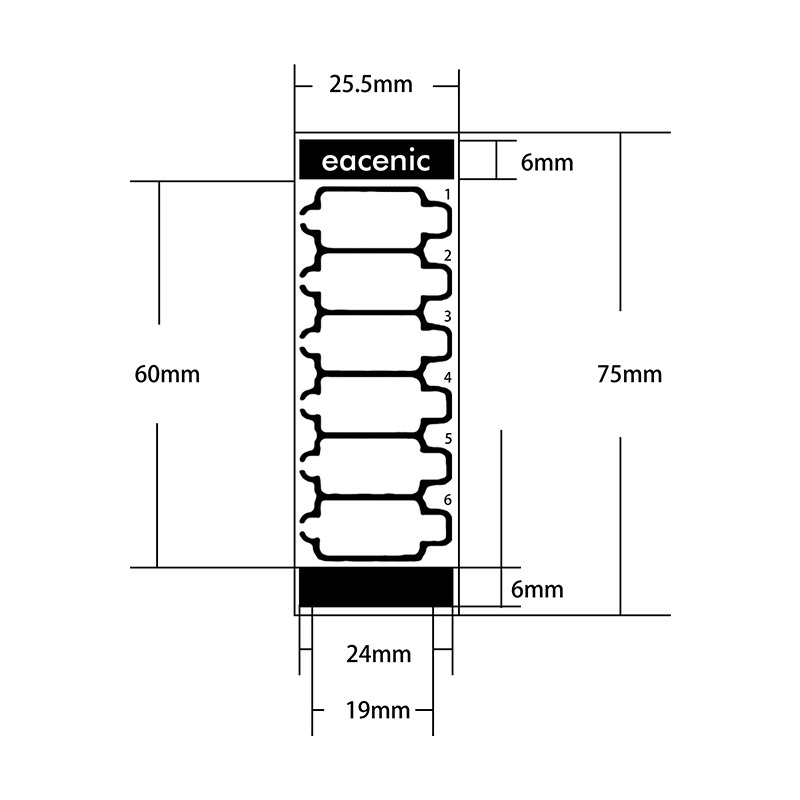

Product Size
75*25mm

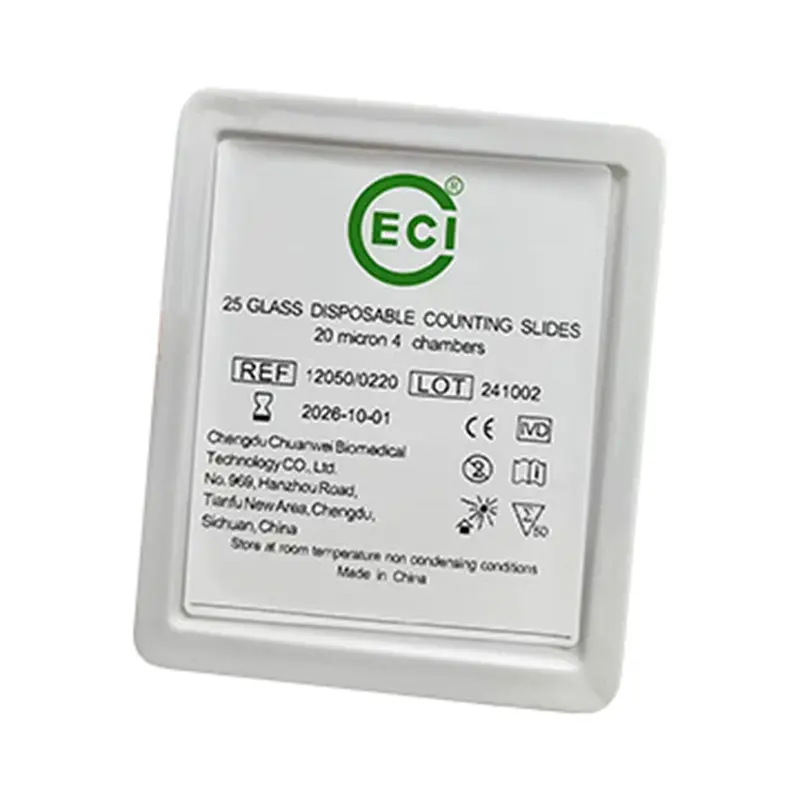

Package
200pcs. (25pcs./box, 8 boxes)
Dimension
250*102*127mm
Weight (one box)
0.19kg

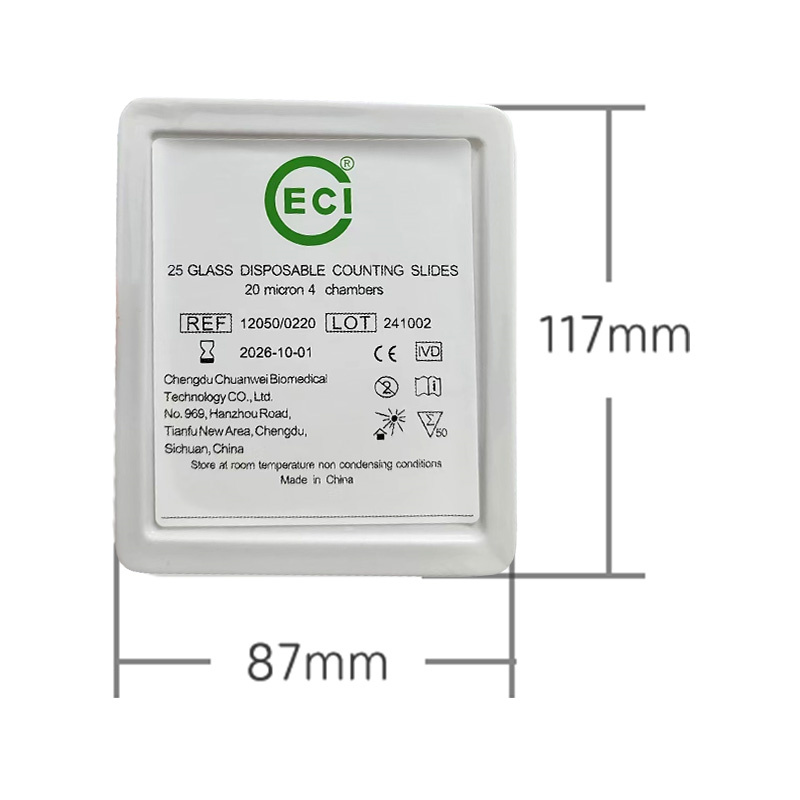

Size (one box)
887*117mm
Main Features
✔Manufactured with high precision moulds with a square grid array for accurate counting.
✔One-piece design for easy operation, eliminating the slide assembly step and effectively reducing bubble generation.
✔Low sample requirement, only 3uL of sample is needed to cover all counting space and complete the counting.
✔Convenient and fast, 4/5/6/8 samples can be counted at the same time, and avoid cross contamination.
✔It can perfectly replace minitube and IMV LEJA counting slides with stable performance and affordable price.
Scope of application
It is suitable for sperm counting in a wide range of mammals, including but not limited to pigs, cows, sheep and dogs.
Frequently Asked Questions
What are the available chamber options for the ECI-J6310?
The ECI-J6310 counting slide is available in four configurations: 4, 5, 6, and 8 chambers, allowing for high-capacity simultaneous testing.
What is the standard chamber height of these slides?
All chamber variations (4, 5, 6, and 8) maintain a precise height of 20±2μm for accurate sperm counting.
How does the one-piece design benefit the testing process?
The integrated one-piece design eliminates the need for manual slide assembly, which simplifies the operation and significantly reduces the risk of bubble generation during sampling.
Is there a risk of cross-contamination between different samples?
No, each chamber is completely separated, ensuring that multiple samples can be tested on a single slide without any risk of cross-contamination.
What animal species can be tested using this slide?
The ECI-J6310 is highly versatile and suitable for a wide range of mammals, including pigs, cows, sheep, and dogs.
How much sample is required for a single test?
Depending on the chamber type, the required sample volume is very low, ranging from 2μl to 4μl, making it highly efficient for limited samples.
