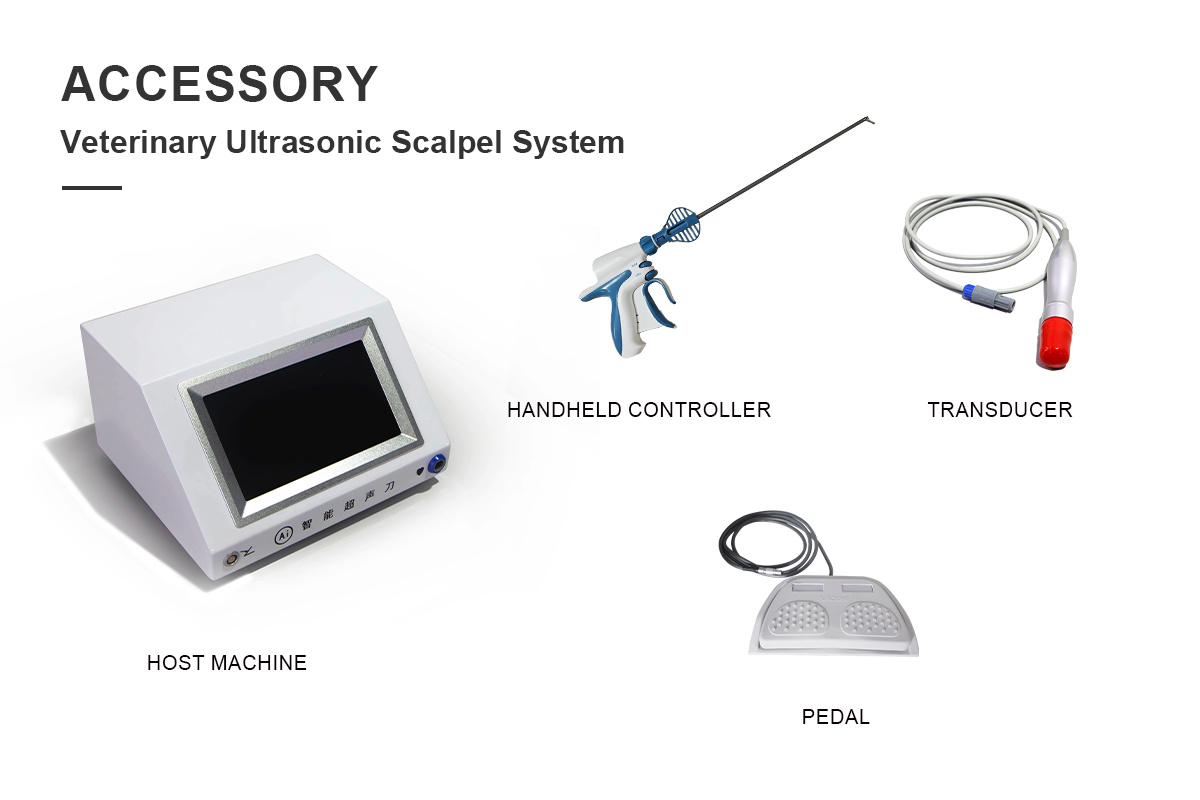

The ultrasonic scalpel system consists of a main unit, foot pedal, ultrasonic scalpel handle, and transducer. The ultrasound knife can generate high-energy ultrasound to achieve the cutting and coagulation of tissue effects.

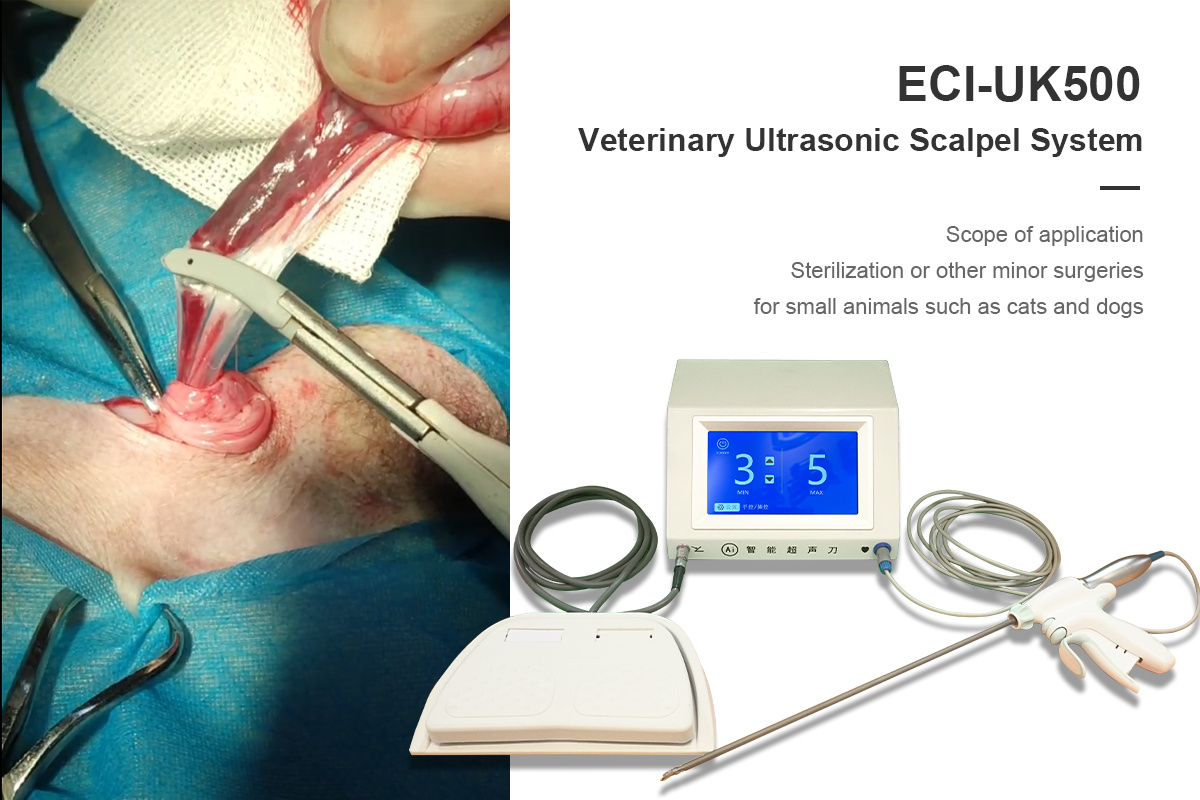

Application: Neutering and minor surgery for cats, dogs, and other small animals.

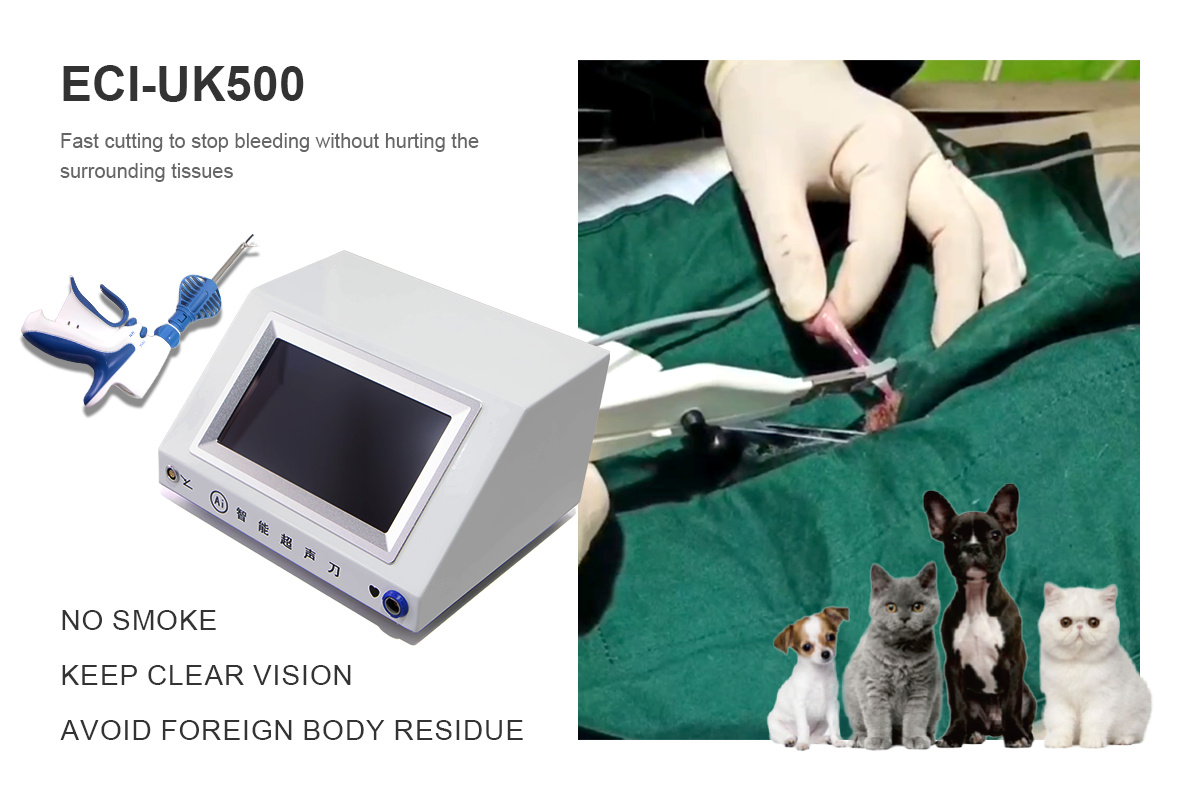

The Veterinary Ultrasonic scalpel is a high-frequency electrosurgical device, mainly suitable for soft tissue cutting and vascular closure operations. The working principle involves using an ultrasound frequency generator to make the metal blade reach a resonance frequency for high-frequency vibration, usually around 55,000Hz. This process vaporizes water molecules in the tissue, breaks protein hydrogen bonds, and causes cell collapse to achieve tissue cutting or coagulation. Simultaneously, it can quickly close small blood vessels, reducing bleeding and achieving almost bloodless cutting.
Using Video
Technical Data of Veterinary Ultrasonic Scalpel
Size
Short
Middle
Long
Type
SRE114
SRE123
SRE136
Length (mm)
140mm
230mm
360mm
Frequency (KHz)
55.0 ~ 56.0
55.0 ~ 56.0
55.0 ~ 56.0
Power (W)
Standby
2.8
2.8
2.8
Output
Gear
1MIN ~ 5MAX
Gear
1MIN ~ 5MAX
Gear
1MIN ~ 5MAX
Screen size
7-inches
N.W.
3.1kg
Product size
240*200*140mm
How to set the parameters of the ultrasound Knife
The output power of the ultrasonic scalpel can be set using the interface buttons. There are a total of 5 gears (Maximum: 5, Minimum: 1, Default: 3). You can adjust the output power based on actual surgical demands.
1.Transducer test: Test resonance frequency and impedance.
2.Excitation: Set hand/foot control excitation (three modes available).
3.Host information: View comprehensive work status.
4.Language: Currently supports English and Chinese.
5.Brightness: Five levels of screen brightness adjustment.
6.System Information: View hardware and software versions.
After configuration, click "Back" to return to the boot interface, then click "READY" to re-initialize the cutter head.
Installation and Removal of the Cutter-head
Align the transducer in the socket of the cutter-head on the handle, then tighten the cutter-head. Once installed, connect the plug to the host computer to test for correct installation. Removal is simply the reverse of this procedure.
Frequently Asked Questions
What is the primary function of the veterinary ultrasonic scalpel?
It is used for soft tissue cutting and vascular closure in surgeries like neutering for cats, dogs, and small animals.
How does it minimize bleeding during surgery?
The 55,000Hz vibration causes protein hydrogen bonds to break and cells to collapse, allowing for simultaneous cutting and coagulation, which quickly closes small blood vessels.
Is the output power adjustable?
Yes, the system features 5 adjustable power gears, allowing surgeons to set the output based on specific surgical needs.
What sizes are available for the cutter heads?
There are three standard lengths: Short (140mm), Middle (230mm), and Long (360mm).
What does a complete system include?
The complete system includes the main host unit, a foot pedal, the ultrasonic scalpel handle, and a transducer.
What languages does the interface support?
The system currently supports English and Chinese languages.
