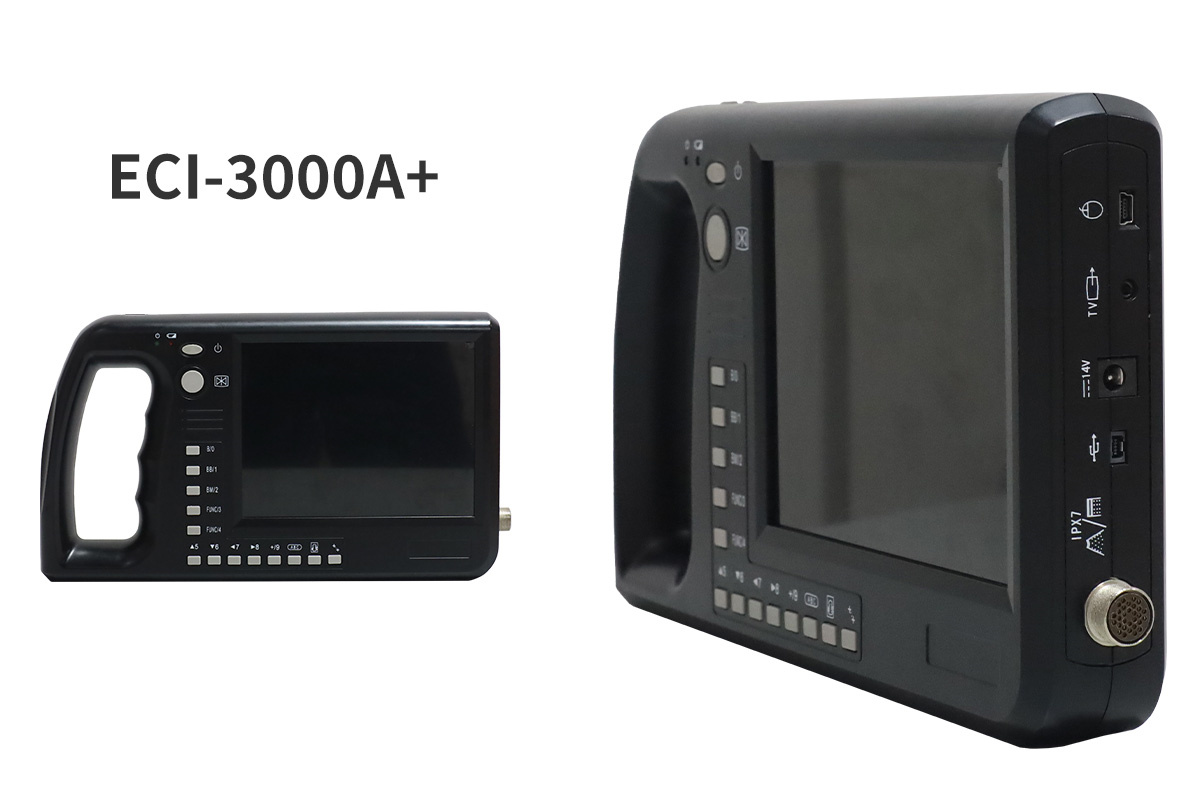

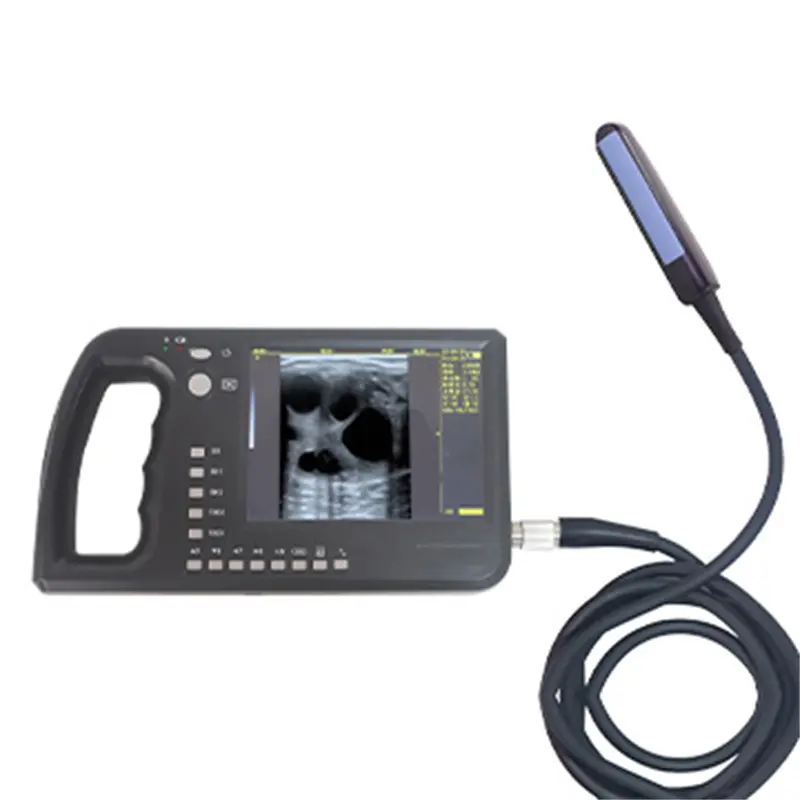

The ECI-3000A ultrasound imaging machine utilizes high-definition digital imaging technology and is specifically designed to support data analysis in livestock farming. In addition to traditional pregnancy detection probes, the ECI-3000A is equipped with specialized back-fat measurement probes and eye muscle area measurement probes.

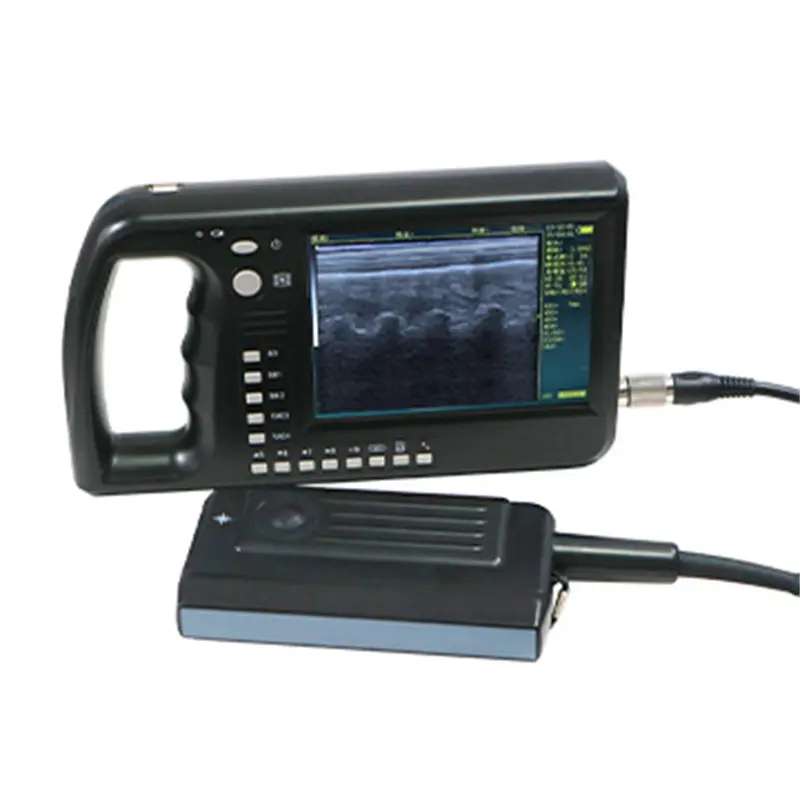

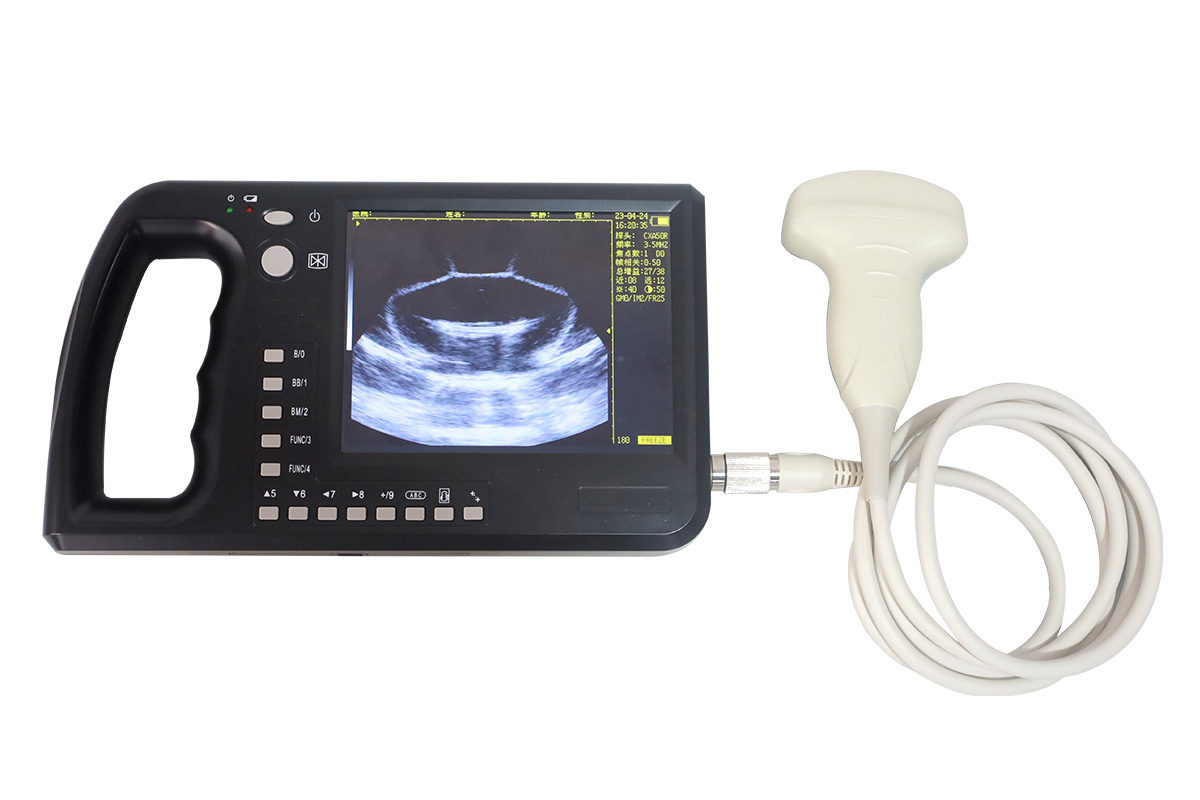

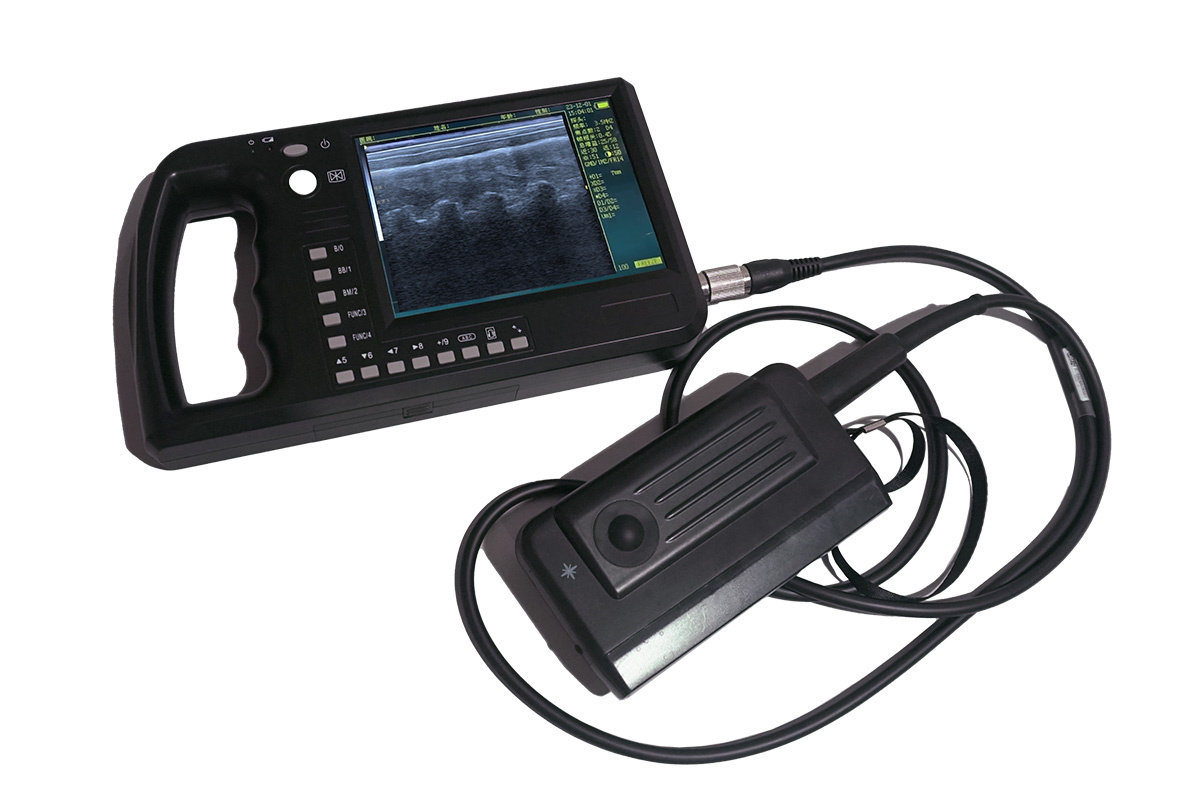

The Convex probe is suitable for pregnancy detection in pigs and sheep; the Rectal probe is used for cattle and horses; and the Micro-convex probe is ideal for pets like cats and dogs. The specialized back-fat probe measures thickness and eye muscle area in cattle, allowing users to monitor reproductive and growth processes across various economic animals by simply switching probes.
| Type | ECI-3000A | Display | 7.0-inch HD screen |
| Element | 80 | Channel | 8 |
| Resolution | 960*640 | Mode | B, M, BB, BM |
| Standby | ≥3.5 hours | Storage | 64fps |
| Cine-loop | 400fps | Gray Scale | 256 |
| Measurement | Back-fat thickness, Loin-eye muscle | ||
| Battery | 3350mAh | Pseudo-color | 16 kinds |
| Size | 270*155*45mm | Weight | 800g |
| Optional Veterinary Ultrasound Machine Probes | |||
| 7.5MHz Linear Depth: 60-240mm |
6.5MHz Rectal Depth: 60-240mm |
3.5MHz Convex Depth: 60-240mm |
|
| 5.0MHz Micro-convex Depth: 60-240mm |
3.5MHz Loin-eye Depth: 60-240mm |
6.5MHz Intracavitary Depth: 60-240mm |
|

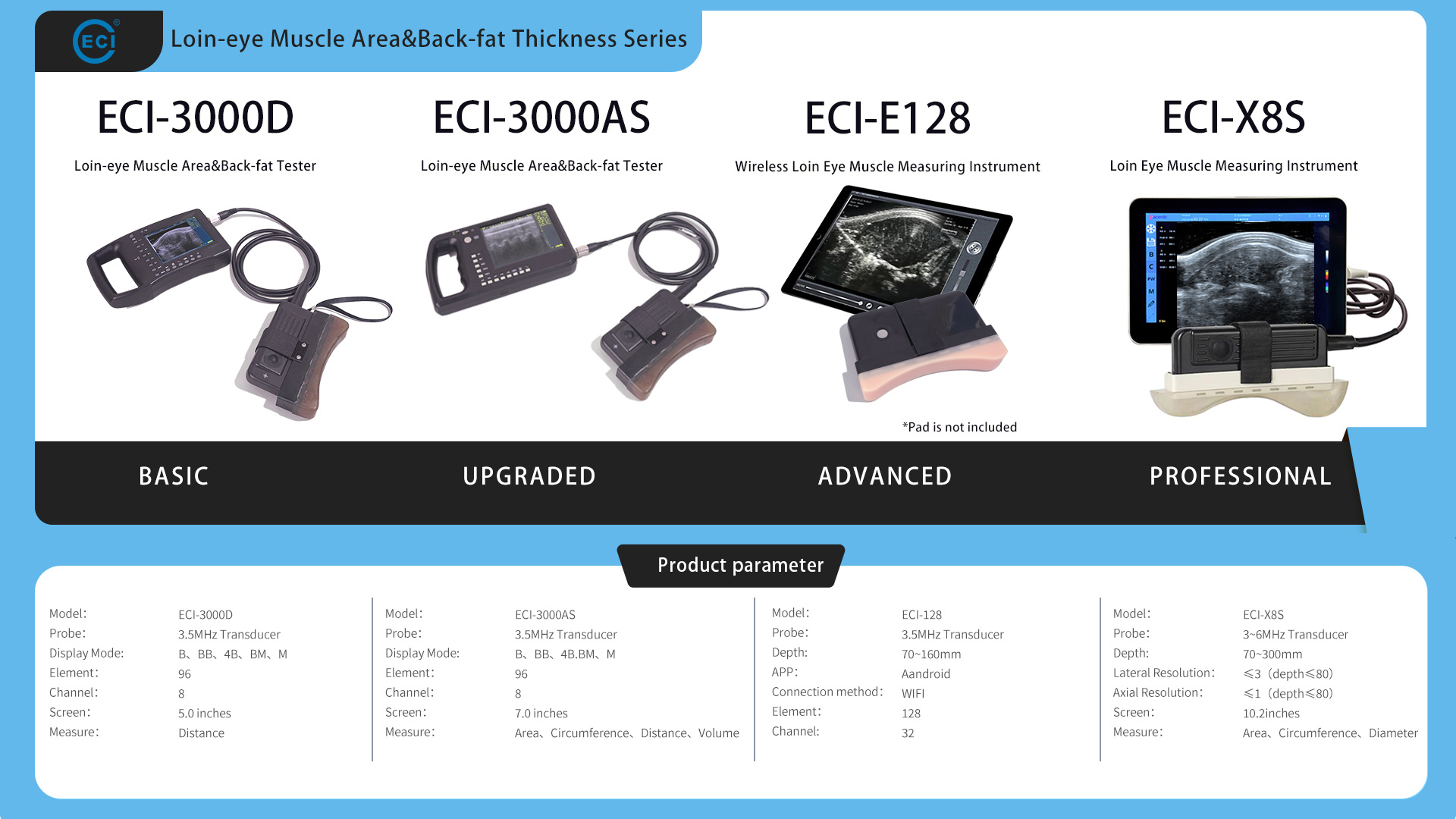

We offer a comprehensive series of veterinary ultrasound imaging machines for eye muscle area measurement, with various models to meet your specific farming and clinical requirements.
