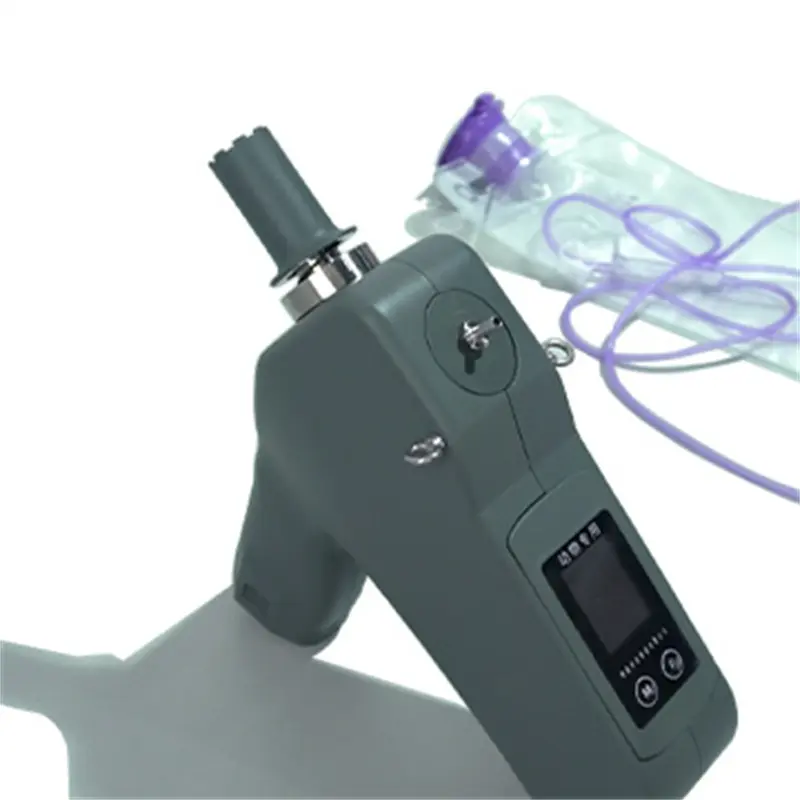

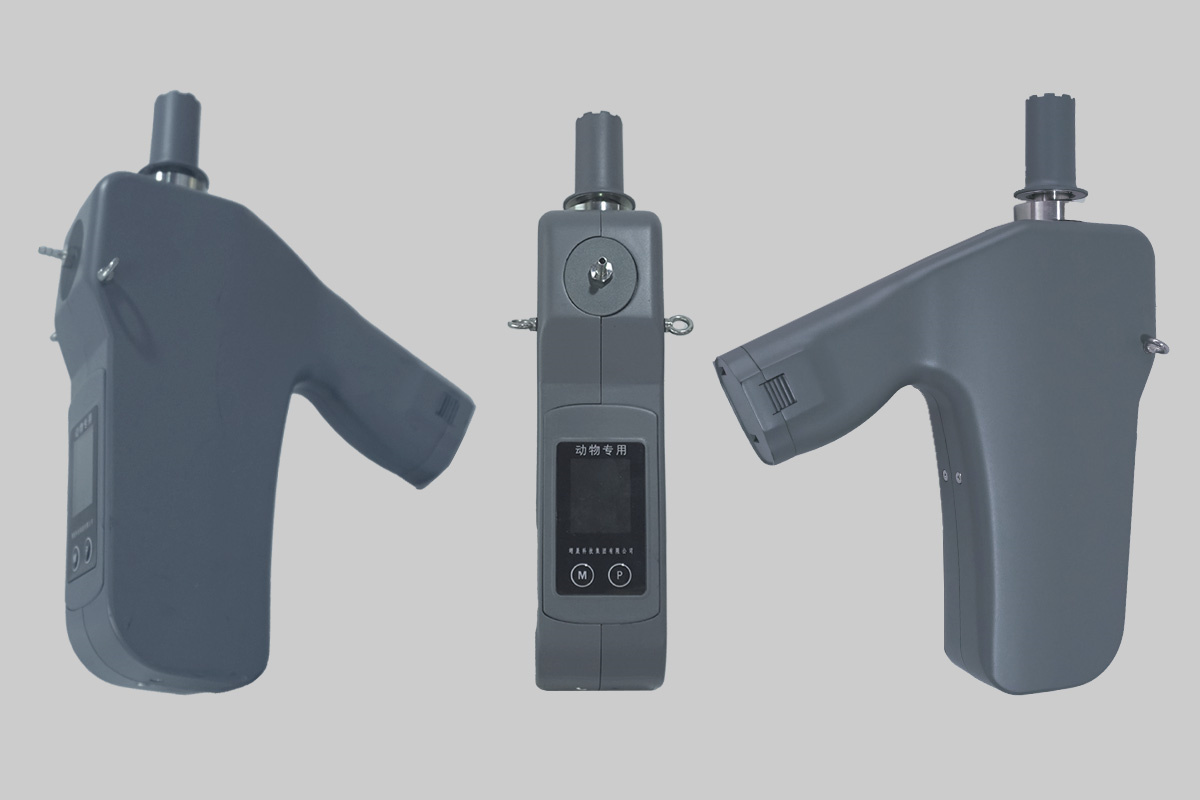

The ECI-T2 veterinary needle-free injector is a new type of vaccine delivery device. It offers the advantages of easy operation, fast injection time, no infection or cross-infection, and no stress response in animals. The system is handheld and can perform continuous rapid injections, with a single charge enabling over 1,000 injections. This type of veterinary needle-free injector is primarily suitable for vaccine injections in pigs.
Product Parameter
Type
ECI-T2
Immunology
Intradermal immunity
Type of vaccine
Oil solution
Injection time
1.5s/st
Storage Temp.
-20℃~65℃
No. of injections
>1800 times
Injection volume
0.5ml
Injection speed
1200 times/h
Waterproof level
IP54
Volume
20/50/100ml
N.W.
1700g
Size
180*160*60mm
Needle-free Injector Advantage
✓
High injection efficiency, with each injection taking only 1.5 seconds.
✓
Prevents cross-contamination, as there is no needle contact with the skin, effectively avoiding cross-contamination between vaccinated animals.
✓
Cost-effective, as there is no need to frequently replace needles, thereby saving on consumables.
✓
ECI-T2 Needle-free Injector has an injection volume of 0.5 ml, reducing drug residue and ensuring food safety.
✓
Long-lasting battery life, using a high-capacity lithium battery that can perform over 1,000 injections on a single charge.
How to use the Needle-free Injector?
1
Insert the battery into the needle-free syringe in the correct direction.
2
Insert the bottle holder from top to bottom and tighten it.
3
Insert the bottle into the needle and press down firmly.
4
Press and hold the P button for about 2 seconds, then press the M button to start the injection function. The number displayed on the screen indicates the number of injections. Turn on the machine.
5

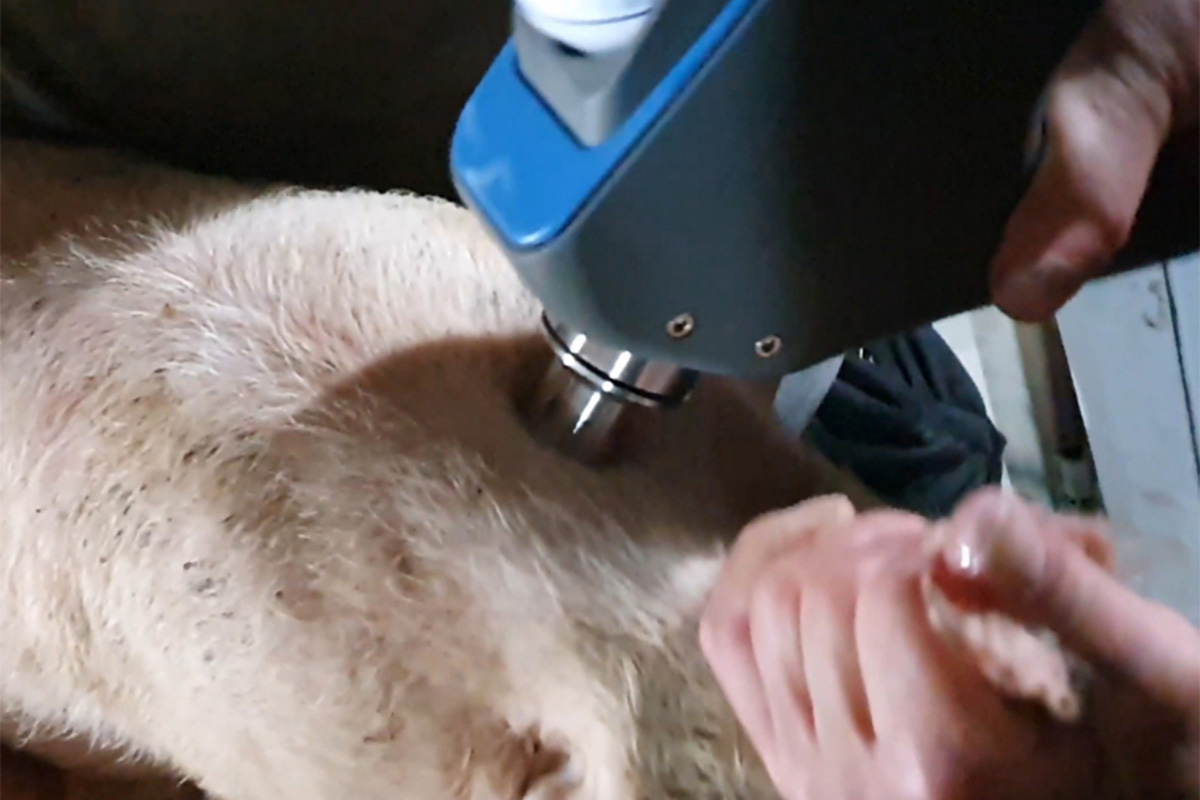

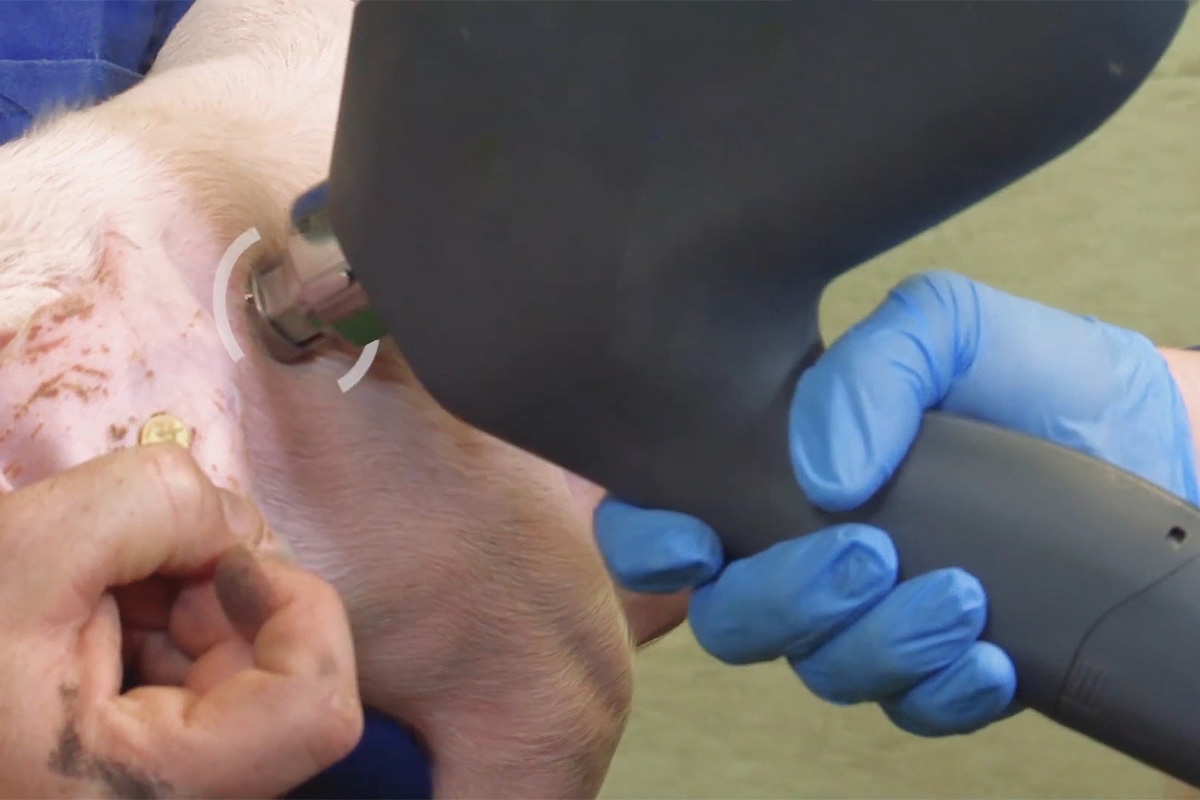

Start the injection. Generally, injections are given in the neck area. Find the correct position, press vertically against the skin, and complete one injection.
Frequently Asked Questions
Q1: How many injections can the device perform on a full charge?A: The ECI-T2 is equipped with a high-capacity lithium battery that enables over 1,000 rapid injections on a single charge.
Q2: Is this injector suitable for all types of livestock?A: This veterinary needle-free injector is primarily designed and optimized for vaccine injections in pigs.
Q3: How fast is the injection process?A: The device is highly efficient, with an injection time of just 1.5 seconds per dose and a total speed of up to 1,200 times per hour.
Q4: Does the needle-free system prevent cross-infection?A: Yes, because there is no needle contact with the skin, it effectively eliminates the risk of cross-contamination between animals.
Q5: What is the fixed injection volume for the ECI-T2?A: The device provides a precise and fixed injection volume of 0.5ml, which helps reduce drug residue.
Q6: Is the device waterproof for farm environments?A: The ECI-T2 features an IP54 waterproof level, making it suitable for standard veterinary environments.
