Brief Introduction

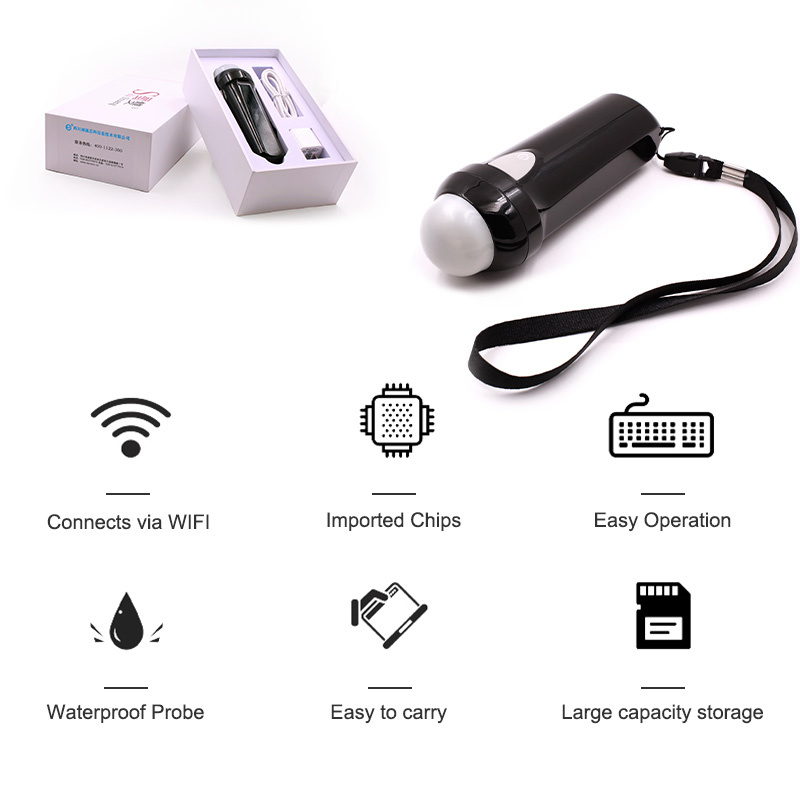

- Suitable for pigs, sheep and other animals. Mechanical probe, 3.5 MHz mechanical sector scanning probe, scanning depth ≥140mm. The operation is simple and portable.
- Note—This equipment is two-dimensional imaging and requires professionals to use it. The APP interface is very friendly and has excellent synchronization.
- The high-definition image lag can freely display the patient's health status, helping you to better confirm the patient's health status.

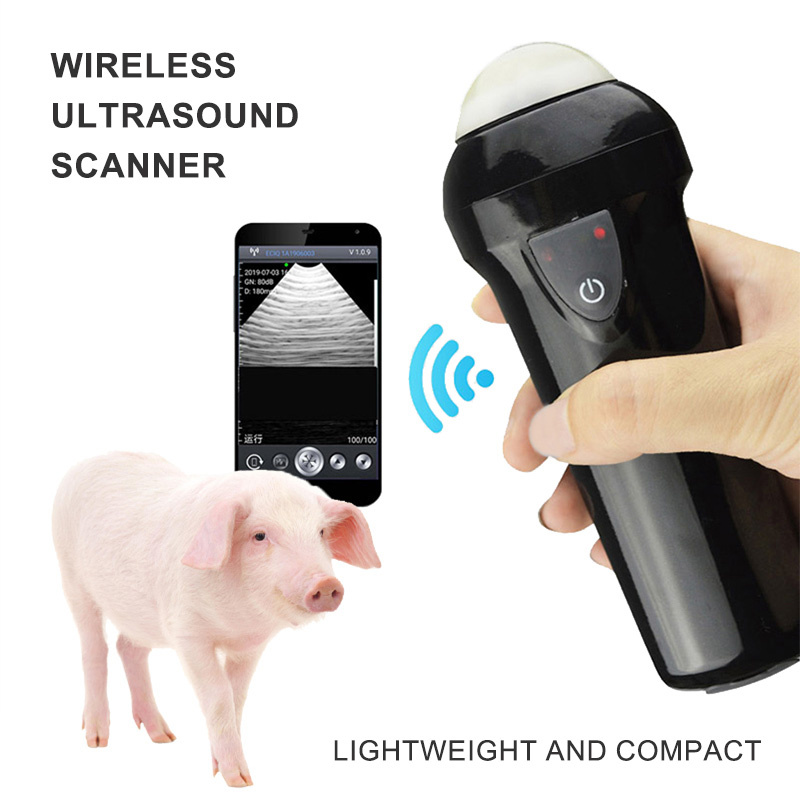

- Compatible with all versions of Android Wi-Fi devices, such as smartphones and tablets (please note that the screens of these devices should be touch screens).

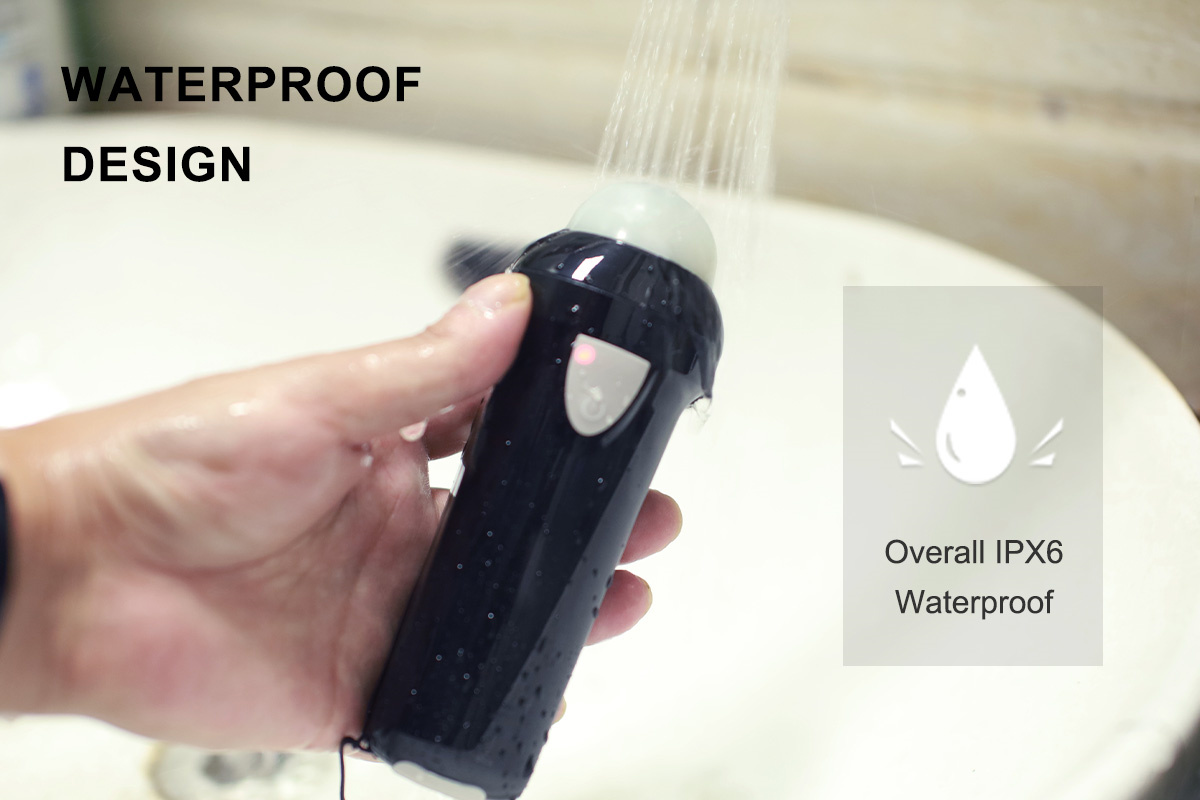

- The scanner is waterproof and easy to disinfect and clean. In addition, handheld and wireless design, whether indoors or outdoors, can be more easily carried and operated.
- Built-in large-capacity lithium-ion battery, can work continuously for 2 hours. It also has a battery power indicator. The best charging time for the host is 2 hours.
▶
Using Video
⚙
Product Parameters

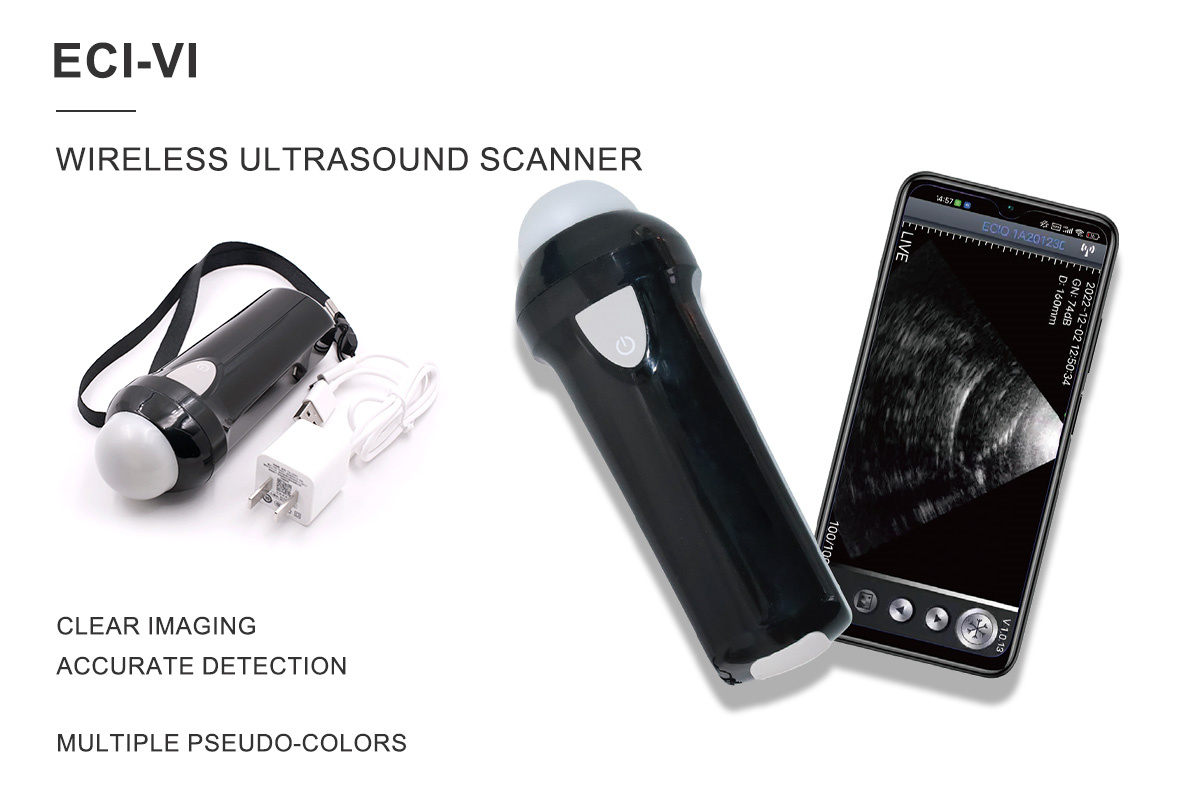

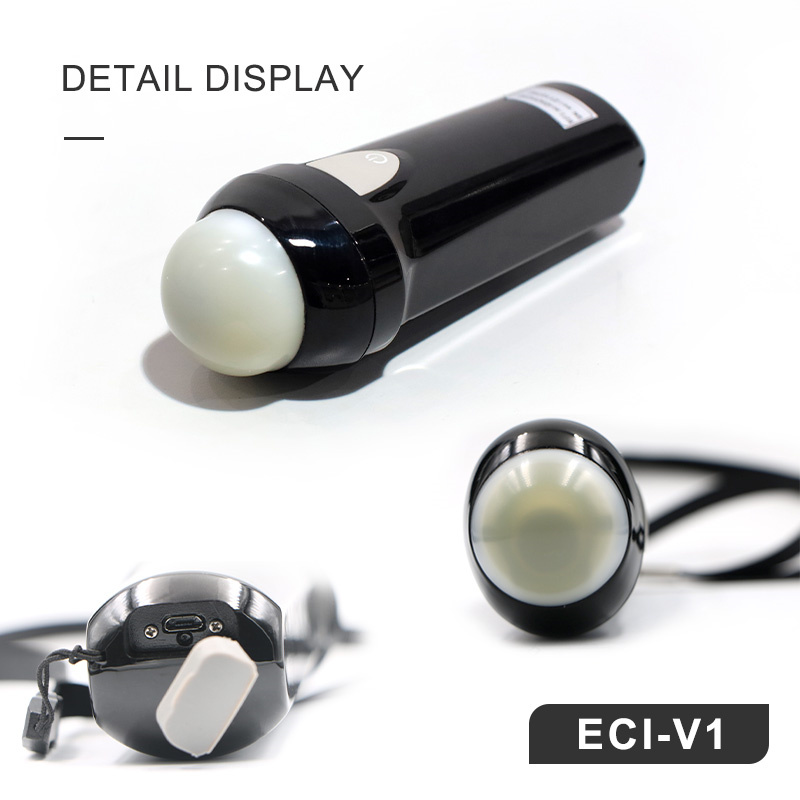

| Type | ECI-V1 |
| Probe | 3.5MHz maglev probe |
| Detection depth (mm) | ≥140mm |
| Resolution (mm) | Lateral | ≤4(depth≤80) / ≤5(depth≤130) |
| Axial | ≤2(depth≤80) |
| Dead zone (mm) | ≤8 |
| Geometric position accuracy (%) | Horizontal | ≤20 |
| Axial | ≤10 |
| App Support | Android |
| Scanning mode | B |
| Storage | Depends on the Android phone and pad |
| Depth Range | 60~190mm |
| Pseudo-color | RGB |
| Magnification | 4Lv. (1~2X) |
| Gray scale | 256 |
| Battery | 3400mAh |
| Working time | ≥4.5h |
| Net Weight | 240g |

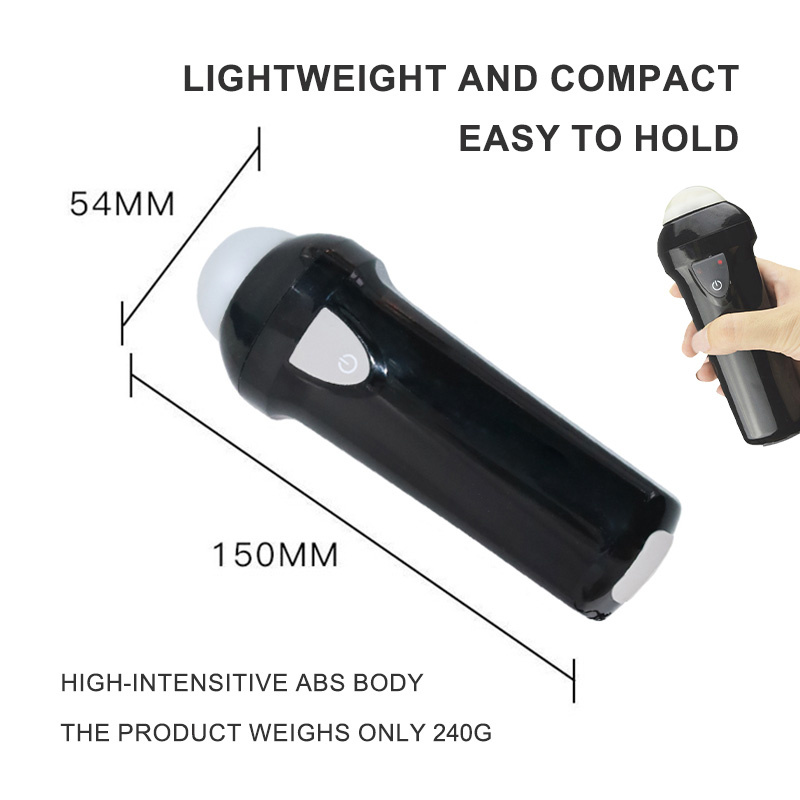

| Dimensions | 150*54*45mm |
📍
Testing Position
1. The best place to test is 10-15 cm above the base of the second pair of nipples. Tilt the probe forward 45 degrees.
2. Apply gel to the top of the probe.
3. The test is performed 25 days after mating.
Note: When the skin is too dirty, clean the test position first for better results.
🔬
Pregnancy Diagnosis
• Early stage: Shows as a black gestational sac after mating.
• Late stage: Bones appear white in a white arc shape.
• Inflammation: Shows black and disordered small particles.

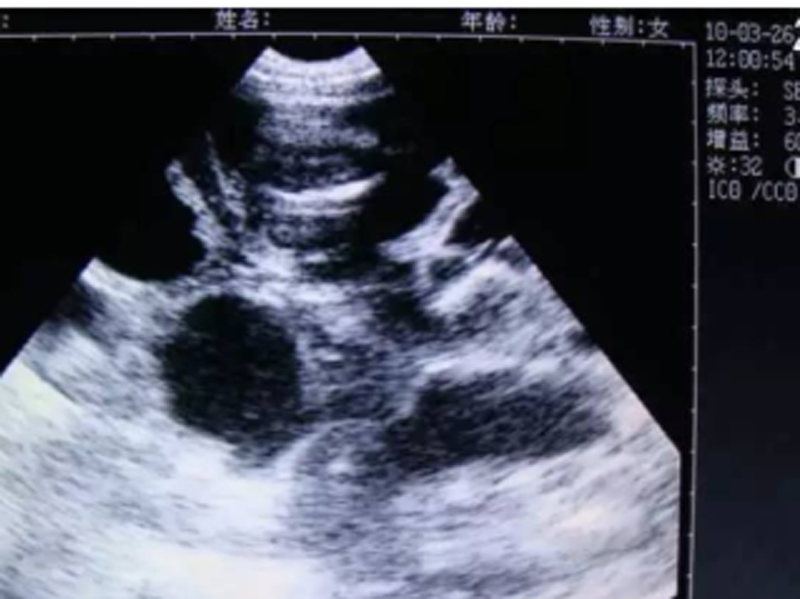

25 days after mating

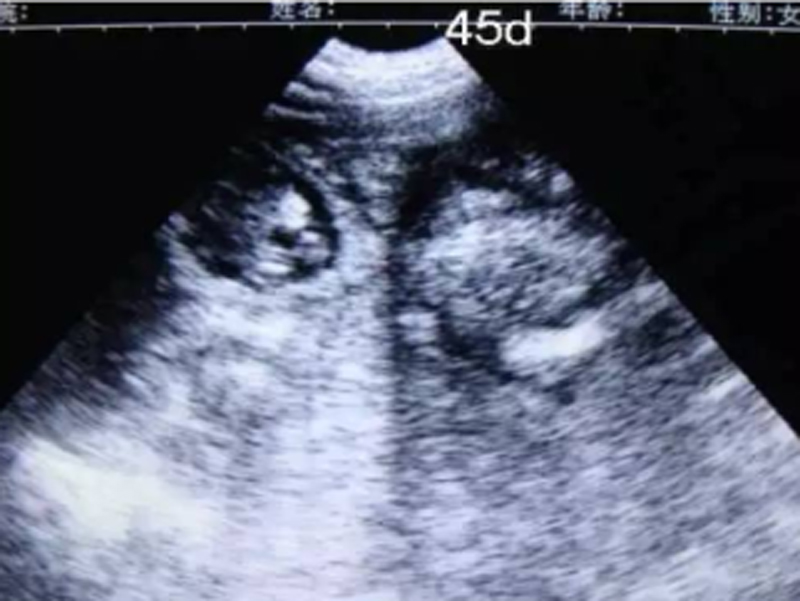

45 days after mating

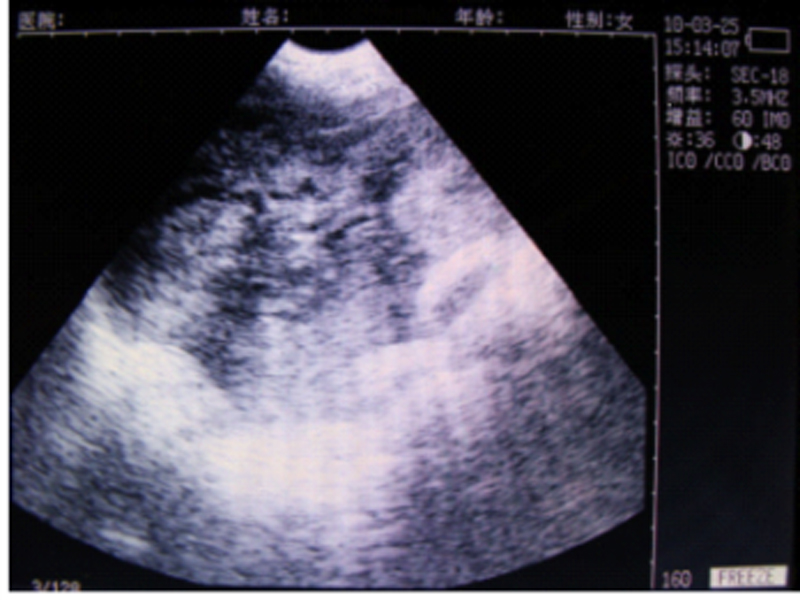

Non-pregnant

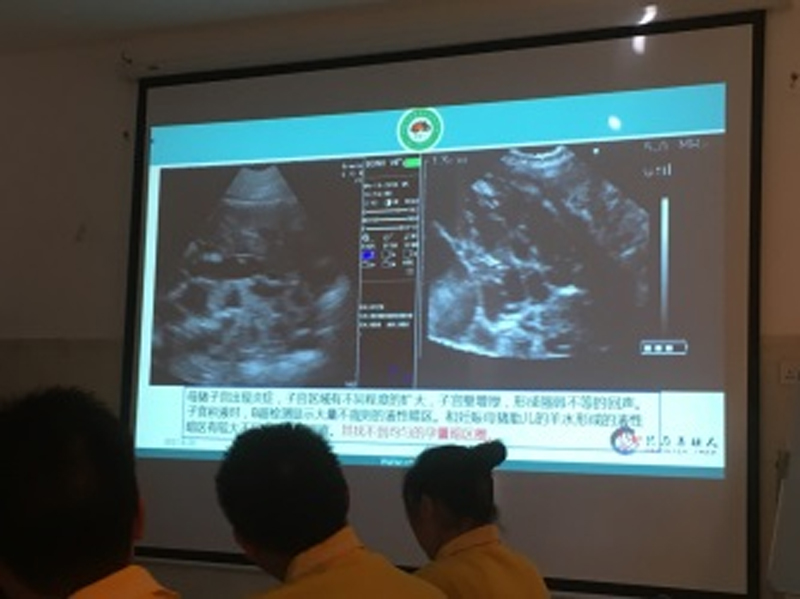

Inflammation
❓
Frequently Asked Questions
1. Which animals can this ultrasound scanner be used for?
The ECI-V1 is specifically designed for pigs, sheep, and other similar livestock animals.
2. Is this device compatible with iOS devices?
This model is currently compatible with all versions of Android Wi-Fi devices, including smartphones and tablets with touch screens.
3. How long does the battery last on a full charge?
The built-in 3400mAh lithium-ion battery supports continuous operation for 2 to 4.5 hours depending on usage settings.
4. Can I use the scanner in outdoor environments?
Yes, the handheld and wireless design makes it easy to carry for both indoor and outdoor use. Additionally, it is waterproof and easy to clean.
5. When is the best time to conduct a pregnancy test?
For accurate results, the pregnancy test is typically performed 25 days after mating. Early detection will show a black gestational sac.
6. What is the scanning depth of the probe?
The device uses a 3.5 MHz mechanical sector scanning probe with a detection depth of ≥140mm, adjustable between 60mm and 190mm.
