Wholesale ECI-400 Sperm Density Mete for Analysis of Semen Density in Pigs Manufacturer, Exporters
1. Individual buttons for easy operation 2. One-touch calibration, one-touch reading 3. Glass test tubes, no need for consumables 4. Ultra-low power consumption 5. Automatic switch-off

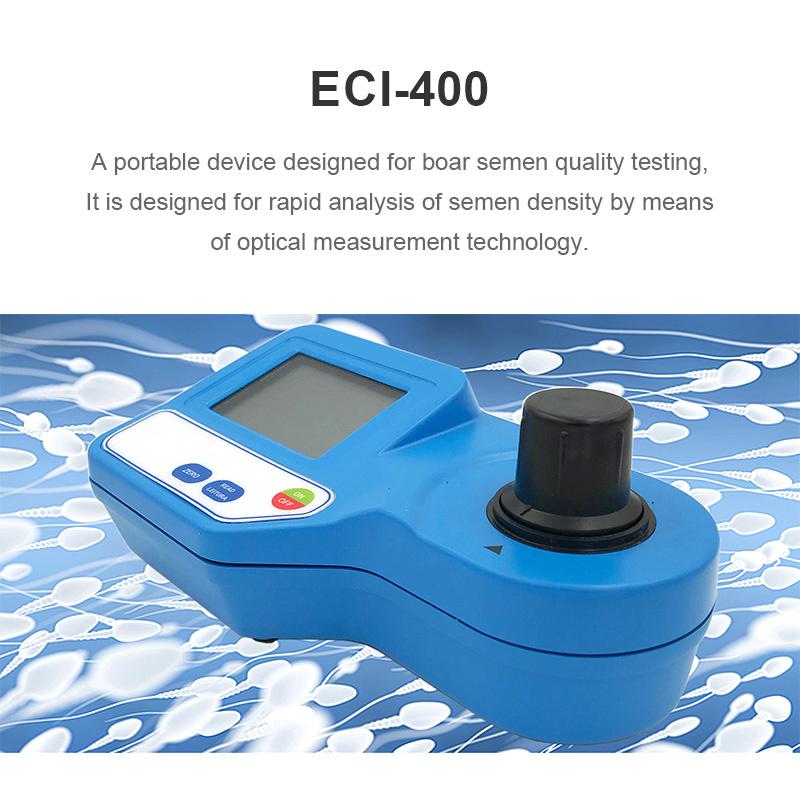

The ECI-400 Animal Sperm Densitometer is a portable device designed for boar semen quality testing. It is designed for rapid analysis of semen density (range 0-5 billion/ml) by means of optical measurement technology with 98% accuracy. The sperm density meter measures the sperm density of the boar's raw semen (the number of sperm per ml) and then dispenses it according to the standard dilution ratios (2.5-3.5 billion sperm per vial is recommended.) The 2.4-inch LED screen directly displays the density value, and the pipette and cuvette are used to standardise the sampling process, avoiding manual counting errors. Automatic calibration function reduces environmental disturbances (e.g. temperature fluctuations). The test data can be used to guide the scientific dilution of semen, avoiding wastage due to too high a concentration or too low a concentration, thus optimising the utilisation of the boar and reducing reproduction costs. The automatic switch-off function extends battery life and helps farms to improve breeding efficiency.
Specification
Parameter
Details
Type
ECI-400
Measuring range
0~0.5bi/ml
Resolution
1µm (sperm head width)
Precision
98%
Wave length
470mm
Screen
2.4-inch
Operating temp.
0~50℃
Working humidity
<95%
Working time
>200h
Battery
9V6F22
Size
192*103*67mm
N.W.
290g
Criteria for Examining Semen Quality in Boars
Level
Volume (ml)
Vitality
Density (bi/ml)
Deformity Rate
Excellent
≥250
≥0.8
0.3
<5%
Good
≥150
≥0.7
0.2
<10%
Qualified
≥100
≥0.6
0.08
<18%
Unqualified
<100
≥0.5
0.06
<18%
How to Use
1

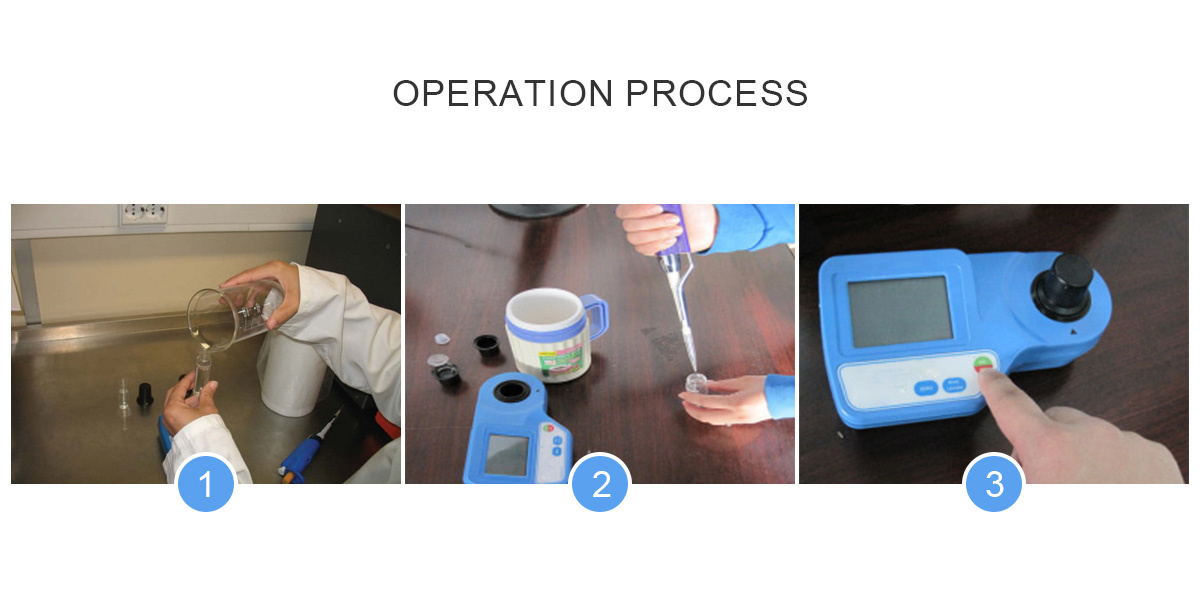

Place 10ml of the extender solution in each colorimeter bottle.
2
Add 0.4 ml of raw semen using a micro-pipette into one of the bottles.
3
Turn on the sperm density meter and place the standard bottle (extender solution only).
4

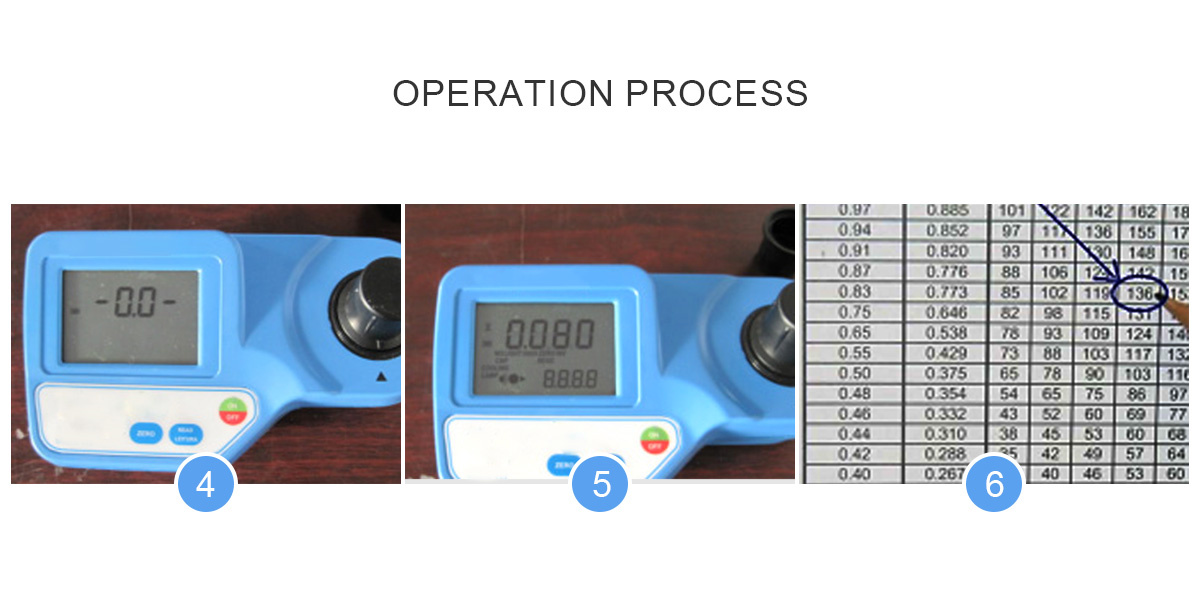

Determine the base value (0.0) via the ZERO key.
5
Replace with the mixed bottle (extender + semen) and press the READ key.
6
Obtain the value and find the approximation in the reference table.
Frequently Asked Questions
Q1: What is the measurement accuracy of the ECI-400?
The device utilizes advanced optical measurement technology to provide a high precision rate of 98%.
Q2: What is the sperm density measuring range?
The ECI-400 can analyze semen density within a range of 0 to 5 billion/ml.
Q3: How does the device handle environmental temperature changes?
It features an automatic calibration function that reduces disturbances caused by environmental factors like temperature fluctuations.
Q4: How long can the battery last during continuous use?
The device is equipped with a 9V6F22 battery, providing a working time of more than 200 hours.
Q5: Is the device portable for farm use?
Yes, it is designed as a portable device weighing only 290g, making it ideal for rapid on-site testing at farms.
Q6: Does it have an energy-saving feature?
Yes, it includes an automatic switch-off function to extend battery life and improve overall efficiency.
