● WiFi connected mobile phone, can be carried in pocket
● 192 array element image processing, clear image
● Suitable for abdominal and uterine scanning

Send Inquiry

Product Description

Description

◈
Easy to sanitize with wireless technology, get rid of extra wires and cables. The Handheld Ultrasound Scanner supports fully wireless operation for easy sterilization in a short period of time.
◈
IPX7 Waterproof, wash and rinse the probe under a faucet.
◈
Hematology(blood) Monitor, real-time dynamic monitoring of endovascular access post-procedure improvement and blood flow levels in each hemodialysis patient.
◈

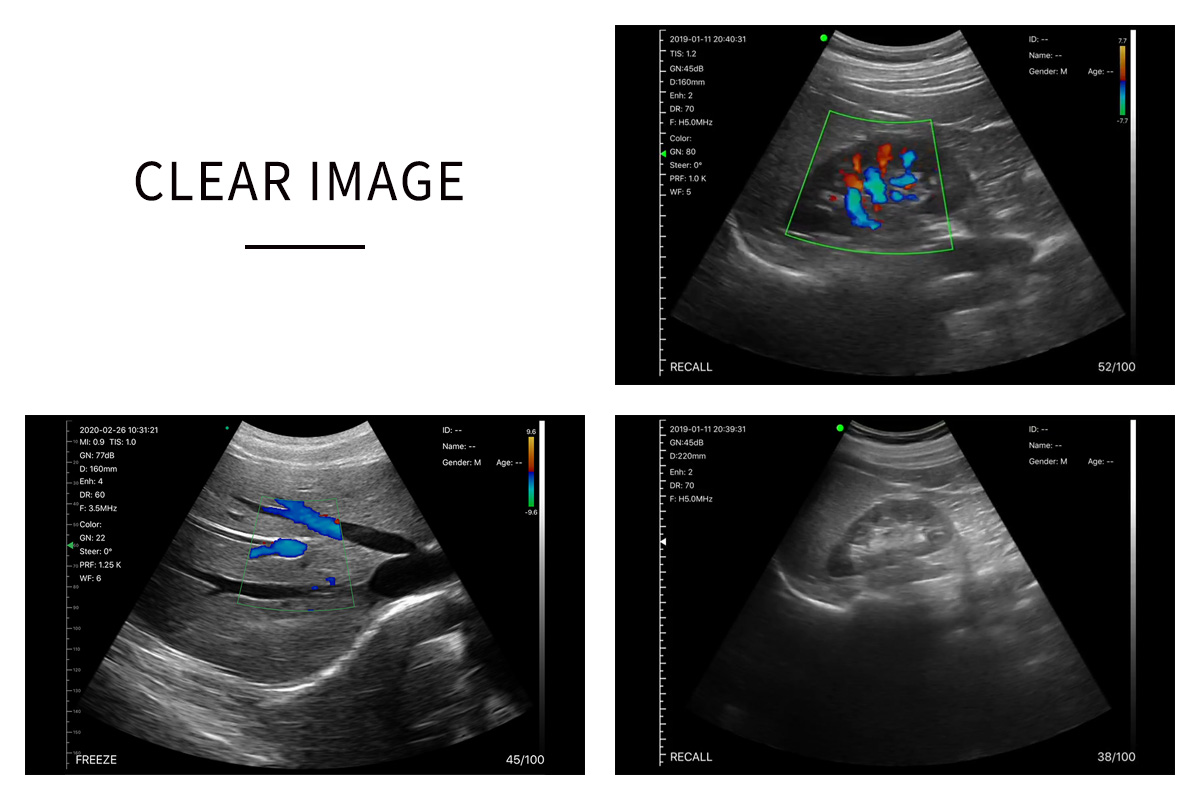

Palm Ultrasound Probe with high-quality images, with a high speed of 20 frames per second on your hand, you can get your image with maximum clarity for a quick diagnostic imaging and see patient's health issues in HD.

Product Parameter

TypeCW-6C
Scan modeElectronic convex array scanning
Detection depth (mm)≥140mm
Resolution (mm)Lateral≤1 (depth≤60)
Axial≤1 (depth≤80)
Dead zone (mm)≤3
Geometric position accuracy (%)Horizontal≤5
Axial≤5
Working systemiOS, Android, Windows
Element192
Scanning modeB, B/M, Color, PDI, PW
Probe frequency3.2-5.0MHz convex probe
Field of viewConvex R60
Depth90~305mm, adjustable
Noise reduction0-4
Image gray scale256
Dynamic range40/50/60/70/80/90/100/110
Measuredistance, area, obstetrics and other
Gain30db-105db
Image storageStore on mobile phones
Battery5600mAh
Working time≥5h
N.W.250g
Size156*60*20mm

Application

◈
Applicable to abdomen, obstetrics, etc.
◈

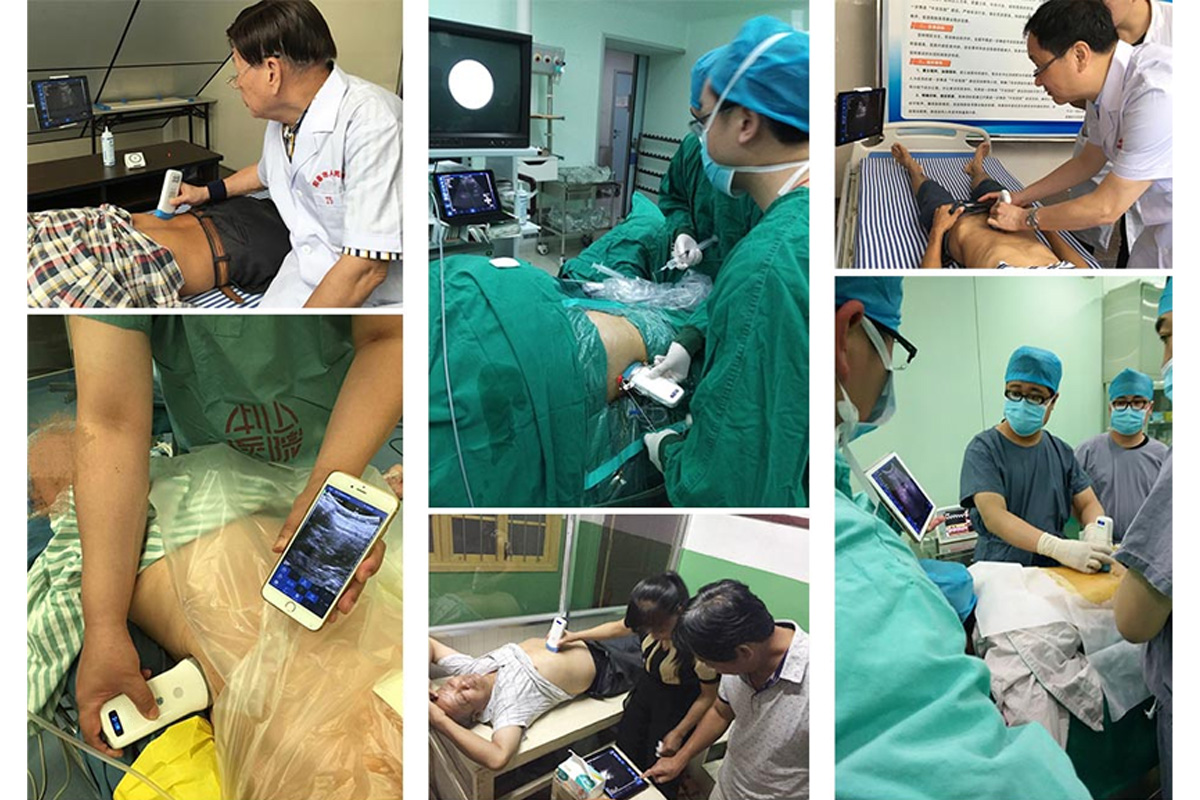

Mainly used for primary medical & public health service, military health & emergency medicine, ward inspection & critical situation, athletic injuries and field rescue.
CW-6C detail 4
CW-6C detail 3
CW-6C detail 2
CW-6C detail 1

Frequently Asked Questions

1. How do I clean and disinfect the handheld ultrasound probe?
The device features IPX7 waterproof rating and wireless technology, allowing you to easily wash and rinse the probe under a faucet for quick and thorough sterilization.
2. Which mobile operating systems are compatible with the scanner?
The scanner is highly versatile and supports iOS, Android, and Windows operating systems, enabling you to view images on a variety of smartphones and tablets.
3. How long can the device operate on a single charge?
Equipped with a 5600mAh battery, the handheld ultrasound scanner provides a working time of 5 hours or more, suitable for a full day of clinical inspections.
4. What imaging modes does the CW-6C support?
It supports multiple scanning modes including B, B/M, Color Doppler, PDI (Power Doppler Imaging), and PW (Pulse Wave Doppler) for comprehensive diagnostic needs.
5. Is it suitable for emergency or field use?
Yes, its compact palm-sized design, light weight (250g), and wireless functionality make it ideal for military health, emergency medicine, field rescue, and athletic injury assessment.
6. What is the image quality and frame rate?
The probe uses 192 elements to provide high-quality HD images with a frame rate of up to 20 frames per second, ensuring maximum clarity for quick diagnostic imaging.
