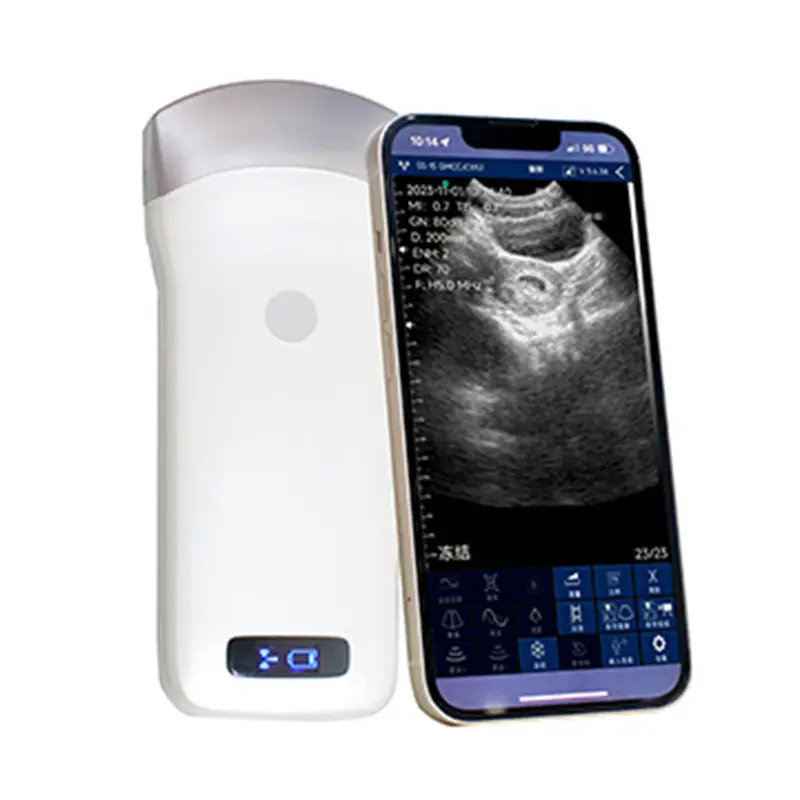

The device connects via WiFi to an Android or ISO phone or tablet (requires a dedicated app) and transmits ultrasound images in real time, cable-free, for on-farm flexibility. 8-channel, 80-elements probe technology improves image resolution to a depth of 90-200 mm, allowing clear images of mid- and late-gestation embryos (e.g., pigs after 25 days of gestation). 16-colour pseudo-colour display enhances tissue contrast, helping to distinguish embryos from surrounding tissue. 3000mAh battery provides over 3 hours of battery life for all-day testing. IPX6 waterproof design allows for direct rinsing and disinfection, and the lightweight body (approx. 450g) is easy to carry to the pen test site. The wireless, paperless testing process helps farmers to quickly screen for infertile individuals, optimise breeding plans, reduce empty pregnancy losses and improve the efficiency of large-scale farming management.
Technical Parameters
Type
ECI-V80S
Probe
3.5MHz convex probe
Detection depth (mm)
≥140mm
Resolution (mm)
Lateral ≤1 (depth≤60); Axial ≤1 (depth≤80)
Dead zone (mm)
≤3
Geometric position accuracy
Horizontal ≤5%; Axial ≤5%
App Support
Android & IOS
Element / Channel
80 Elements / 8 Channels
Scanning mode
B, BM
Depth Range
90~200mm
Pseudo-color
16 Colors
Magnification
4 Levels (1~2X)
Battery Capacity
3000mAh (≥3h working time)
Net Weight
260g (Main body) / Approx 450g (Total)
Size
165*68*26mm

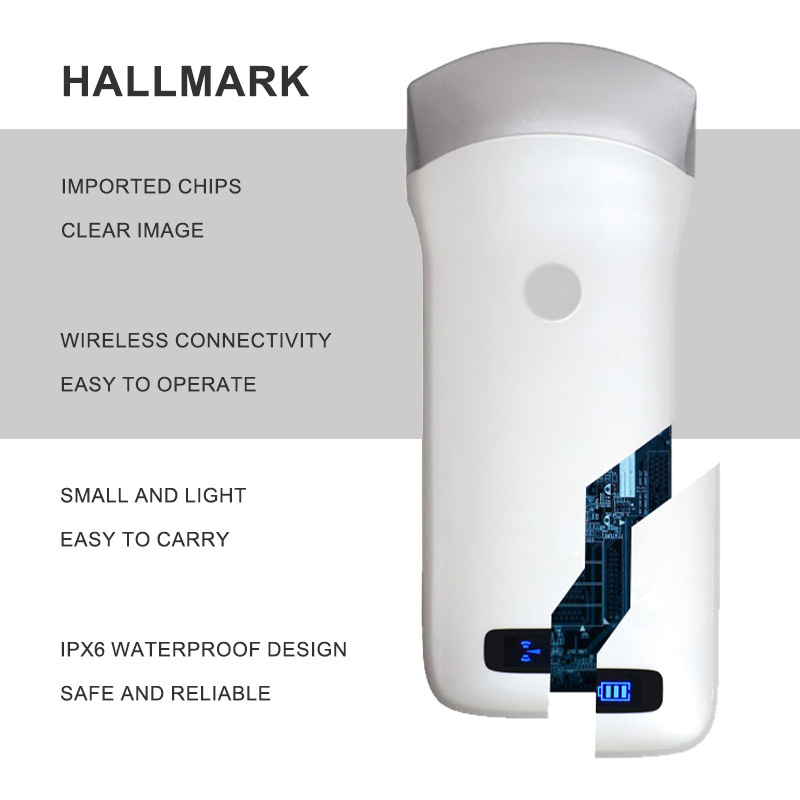

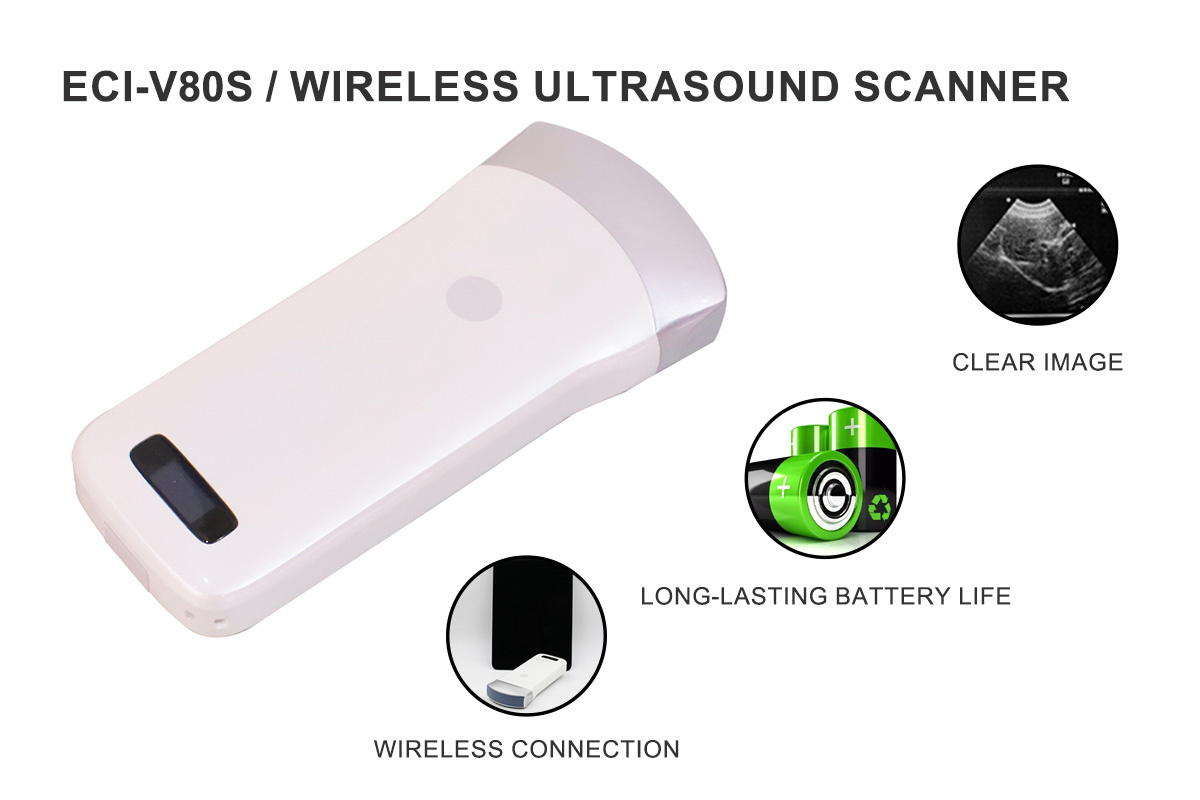

Product Advantages
●
Compatible with Tablet or Smart Phone (iOS/Android).
●
Advanced digital imaging technology for clear, high-resolution images.
●
Intelligent terminal platform with powerful functions for application, storage, and communication.
●

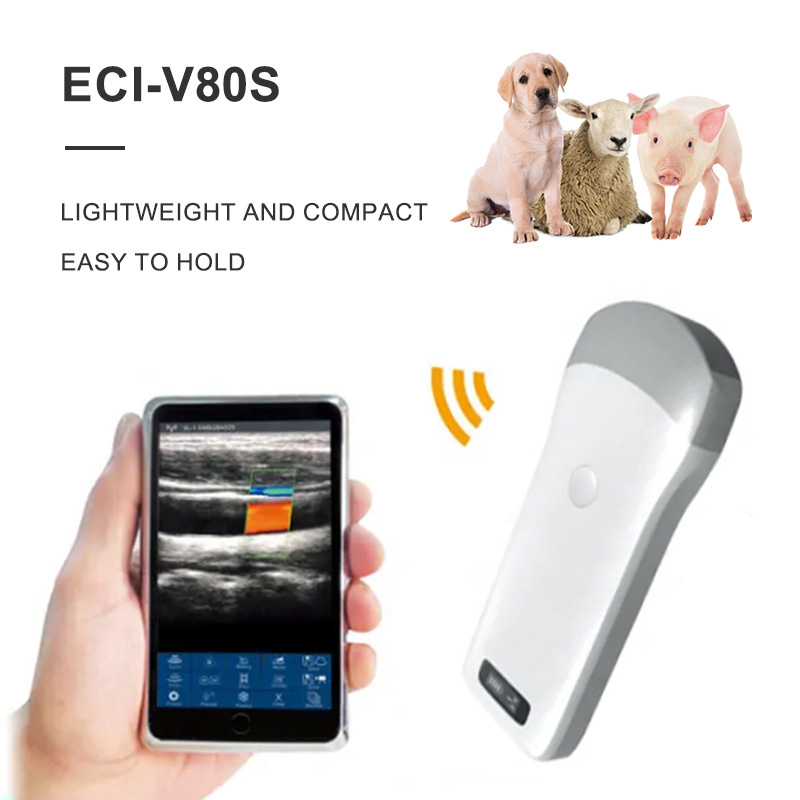

Wireless connectivity, small and lightweight body for maximum portability.
●
Versatile use across livestock farms, pet hospitals, and individual breeders.
Scan Position Instructions
Place the probe in the upper part of the sow between the penultimate and third nipple at about 5 CM, and just adjust it towards the cervical vertebrae at about 45 degrees. For primiparous sows and sows in the early stages of gestation, measurements can be taken between the first two nipples. For sows in late gestation, the measurement can be taken between the penultimate third and fourth nipples as the uterus drops closer to the abdominal wall.
Frequently Asked Questions
Q1: Which devices are compatible with this ultrasound scanner?The device is compatible with both Android and iOS smartphones and tablets via a dedicated app and WiFi connection.
Q2: How deep can the scanner detect?The scanning depth is adjustable between 90mm and 200mm, with a technical detection capability of ≥140mm.
Q3: Is the device suitable for outdoor farm environments?Yes, it features an IPX6 waterproof design, allowing it to be rinsed and disinfected directly, making it ideal for farm use.
Q4: What is the battery life for a single charge?The 3000mAh built-in battery provides over 3 hours of continuous working time, suitable for a full session of testing.
Q5: How many display colors does the app support?The device supports a 16-color pseudo-color display to help distinguish different tissue types and embryos clearly.
Q6: What is the benefit of the 80-element probe?The 80-element technology significantly improves image resolution and clarity compared to standard probes, allowing for earlier and more accurate pregnancy detection.
