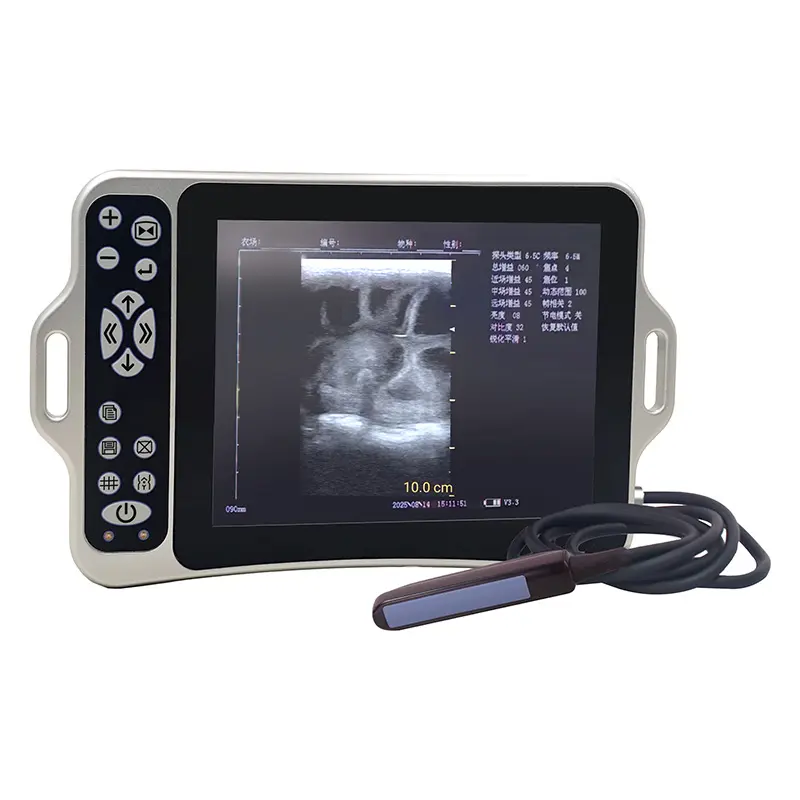

ODM ECI-X4 Waterproof Ultrasound Scanner with Multiple Probes for Animals Use Manufacturer, Manufacturers

● For cattle, sheep, goat, pigs, horse, etc.
● Measurement functions including distance, perimeter, and area
● Waterproof and slip-resistant metal casing design
● Probe frequency is adjustable
● 500F Cine-loop

Product Description

Overview
The ECI-X4 Veterinary Ultrasound Diagnostic System is equipped with a variety of probes, including rectal probe, convex probe, linear probe, and micro-convex probe. Selecting different examination modes accommodates the diagnostic requirements for various animal regions or tissues. Featuring an 8.0-inch 1024×720 high-definition display with four pseudo-colour modes, it provides intuitive visualisation of embryonic development and adipose tissue structures. This portable veterinary ultrasound device incorporates 8GB storage with USB flash drive expansion and export capabilities, facilitating the creation of individual breeding records. Its all-metal housing offers impact resistance and corrosion protection, while the waterproof and slip-resistant design permits direct rinsing and disinfection.
Veterinary Ultrasound Machine application
Using Video
Technical Specifications
Type ECI-X4
Probe Options Rectal (4-8MHz) Convex (2.5-5.5MHz) Micro-convex (5.0MHz) Intracavitary (6.5MHz)
Max. Detection Depth ≥80mm ≥140mm ≥90mm ≥80mm
Resolution (mm) Lateral ≤1 ≤3 - ≤5 ≤3 ≤1
Axial ≤1 ≤1 ≤1 ≤1
Display / Resolution 8 inch screen / 1024*720
Storage / Gray Scale 8GB / 256 Levels
Cine-loop / Depth 500fps / 80-240mm
Working Time ≥ 4 hours
Dimensions / Weight 241mm*163mm*33mm / 1229g
Testing Procedures
CATTLE: Testing Procedure (Rectal Probe)
  1. Clean out the excreta in cow's rectum.
  2. Palpate by hand and preliminarily estimate the gestation state to determine the germinal tissue for B ultrasonic scanning.
  3. Hold the probe, and insert it into the rectum with hand on the probe closely. Position your hand at the dorsal part between the rectum wall and the transducer.
  4. Observe the internal structure on the screen. Move the probe inside the rectum until the coupling section of uterine horn and uterine body is displayed.
SHEEP: Testing Procedure (Convex Probe)

Two effective methods for pregnancy diagnosis:

  • Within 35 days: Rectal method is more precise.
  • 35 to 70 days: Both rectal and abdominal methods are equally effective.
  • After 70 days: Abdominal method is preferred for the larger womb.

Abdomen Check Steps:

  1. Can be done while the ewe is standing, lying, or squatting. Place the probe on the middle abdomen (fur-free area).
  2. Ensure the area is clean; use water to remove mud if necessary for accurate visualization.

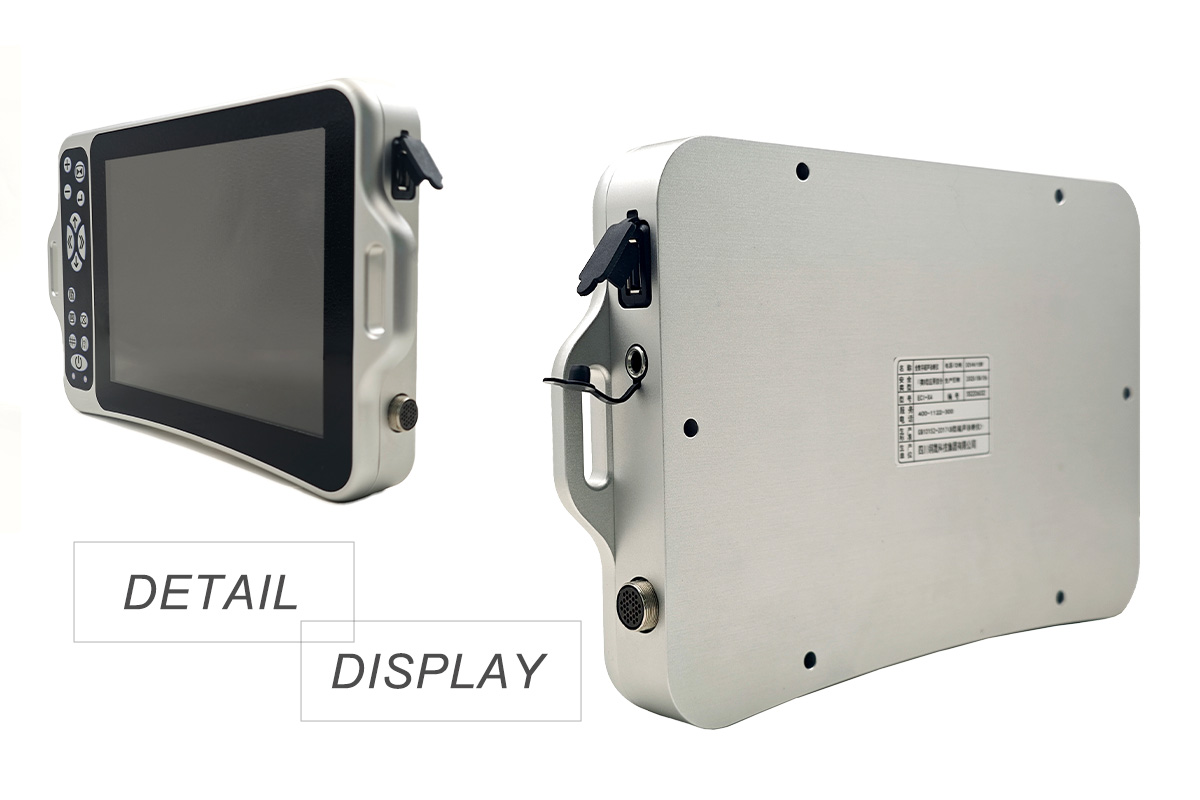

Veterinary Ultrasound Machine detail

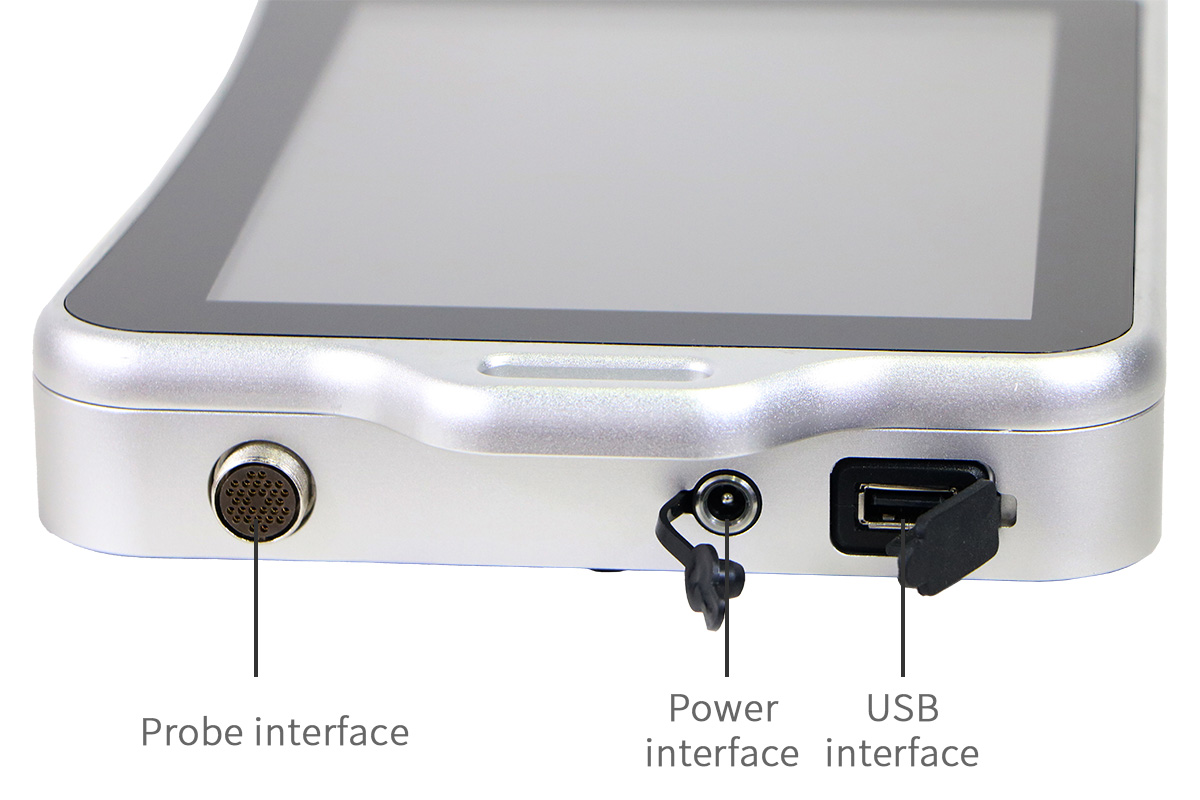

Veterinary Ultrasound Machine interface
Frequently Asked Questions
1. What types of probes are compatible with the ECI-X4 system?
The system supports rectal, convex, linear, micro-convex, and intracavitary probes to accommodate various animal diagnostic needs.
2. How long does the battery last during continuous use?
The device is designed for field efficiency, providing a working time of 4 hours or more on a full charge.
3. Is the device durable enough for farm environments?
Yes, it features an all-metal housing for impact resistance and a waterproof, slip-resistant design that allows for direct rinsing and disinfection.
4. Can I export the saved diagnostic images and records?
Absolutely. The system includes 8GB of internal storage and supports USB flash drive expansion for easy data export and record keeping.
5. What is the display quality of the ECI-X4?
It features an 8.0-inch high-definition screen with a resolution of 1024×720 and four pseudo-colour modes for clear visualization.
6. What measurements can the system perform?
The system is capable of measuring back-fat thickness and general distances, which is essential for breeding and health monitoring.
