ODM ECI-T3 Veterinary Semen Thawing Thermostat Thermostatic Thaw Cup Manufacturers, Exporter

● Two types of chargers, regular and car charger, easy to carry.
● Precise temperature control from 37°C to 40°C
● 600ml large capacity

Product Description

Product Introduction

Sperm has a high sensitivity to temperature, so it is very important to control the temperature during the process of fresh semen collection and frozen semen thawing. In practice, various external factors restrict the fertility of sperm.

This thermostatic semen collection cup, with built-in battery, can be operated independently, so that the temperature in the cup can be kept at the set temperature for a long time, so that the semen can maintain the best condition, and diluted at the minimum temperature difference value, which helps to prolong the storage time of sperm.

At the same time, for outgoing service users, vehicle power supply can be used, but also use its own battery power supply. Meet the directional needs of our customers.

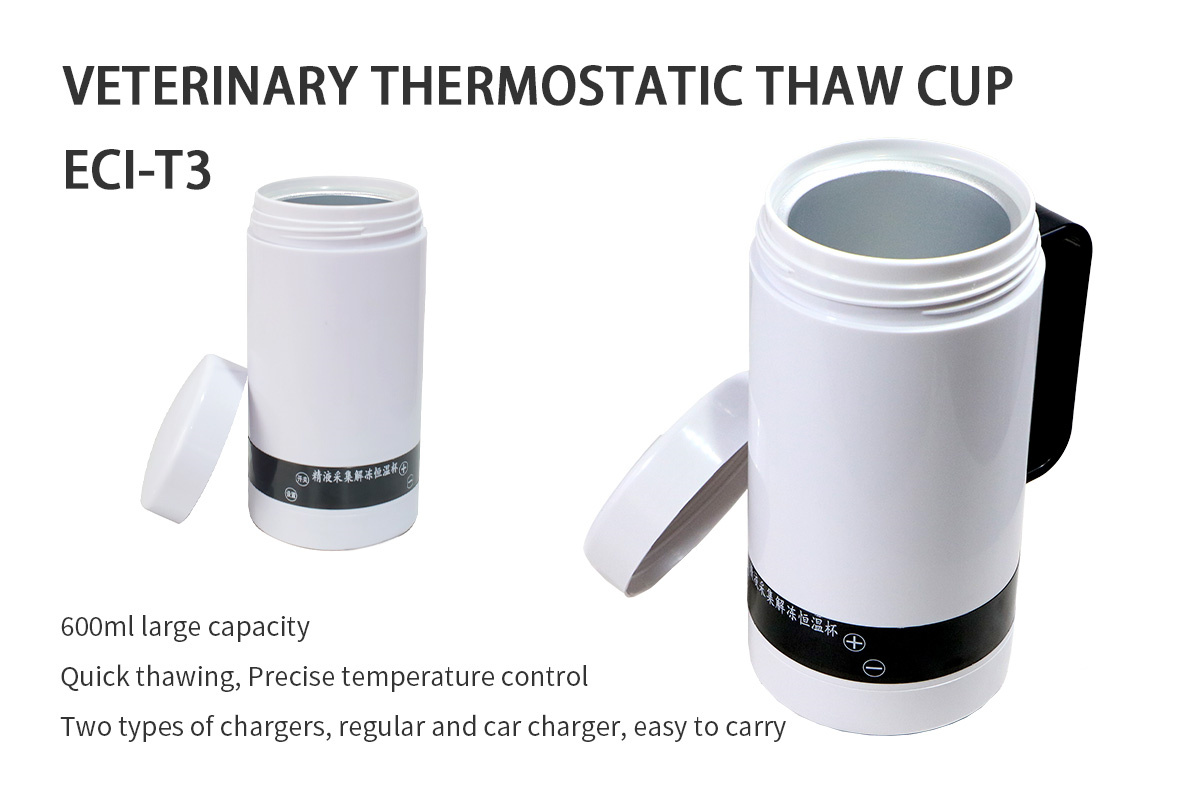

Semen Thawing Thermostat Detail 1

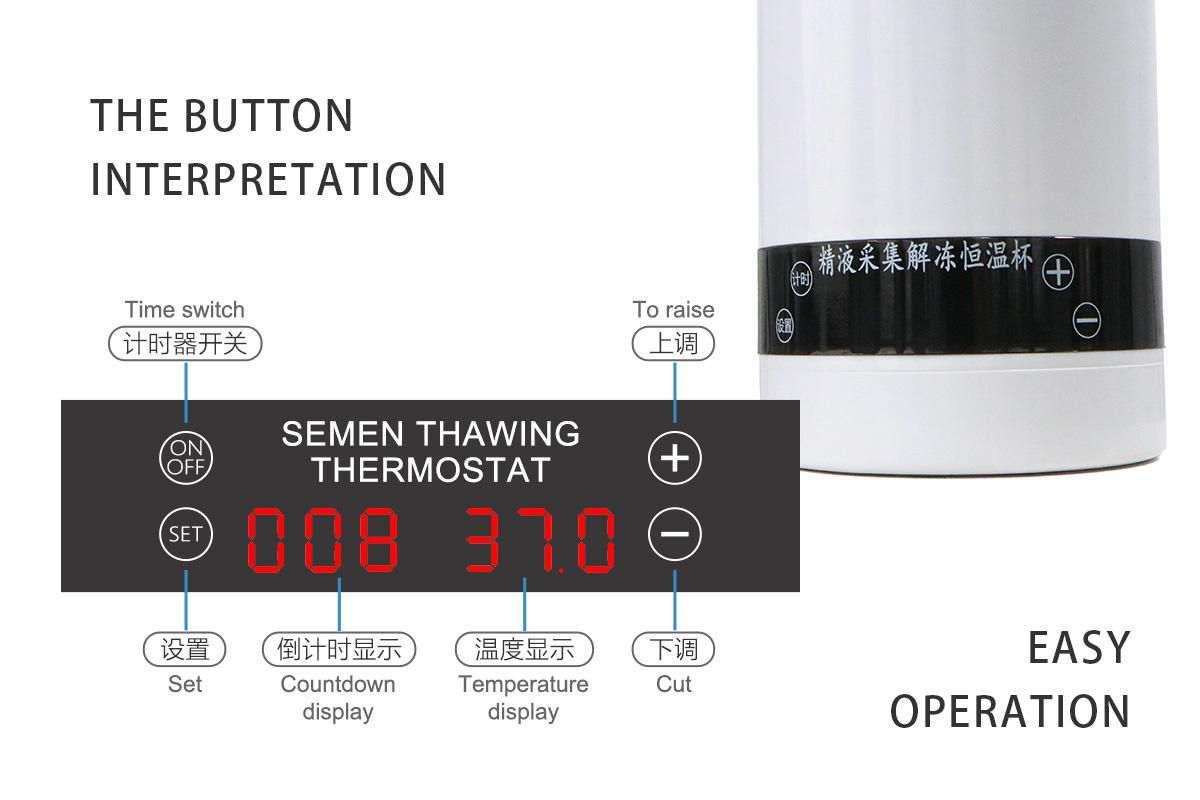

Semen Thawing Thermostat Detail 2
Product Parameter
TypeECI-T3
Capacity600ml
Range37°C ~ 40°C
Working time (0~20°C)2-4h
Working time (20~37°C)4-6h
Charging time3-5h
Operating temp.-10~37°C
Refresh frequency2s
Temp. error0.1~0.3°C
Input voltage12-14V
Input current5-7A
Liner diameter80mm
Liner height128mm
Size211*106mm
N.W.700g
Dimension270*190*190mm
G.W.1.4kg
Operation Guide
Fresh semen collection (pig)
  1. Press the switch button below the handle, press the set button, and adjust the temperature to 37°C.
  2. Put the semen collection bag into the cup and place the cotton filter in the entrance.
  3. Cover the lid and collect the semen on site.
Frozen semen thawing (cow, pig, sheep, dog, etc.)
  1. Plug in the power cord, press the switch below the handle, press the set button and adjust to 38°C.
  2. Pour water into the cup (do not exceed the internal opening edge).
  3. Once the set temperature is reached, put the frozen tubule into the cup rapidly.

Thawing advice:
(1) Cow: 38°C for 15s | (2) Pig: 50°C for 16s | (3) Dog: 37°C for 20s

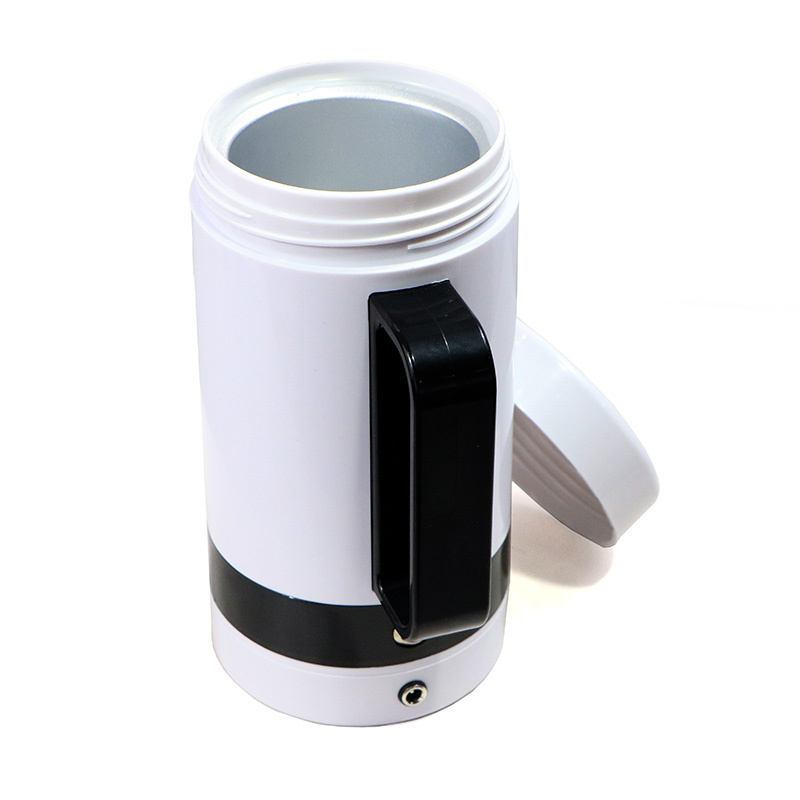

Operation Detail 3

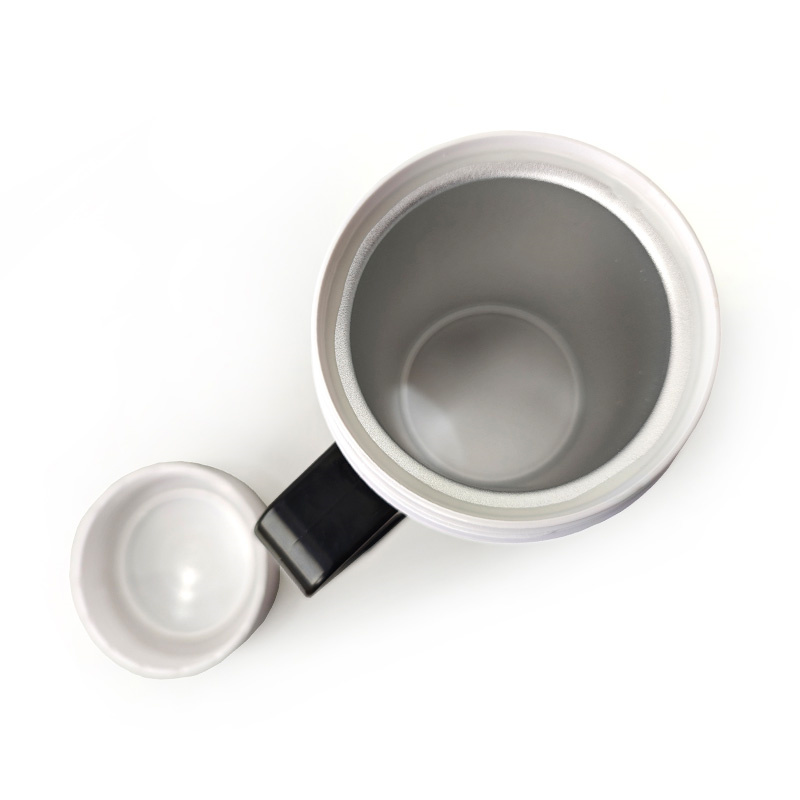

Operation Detail 4

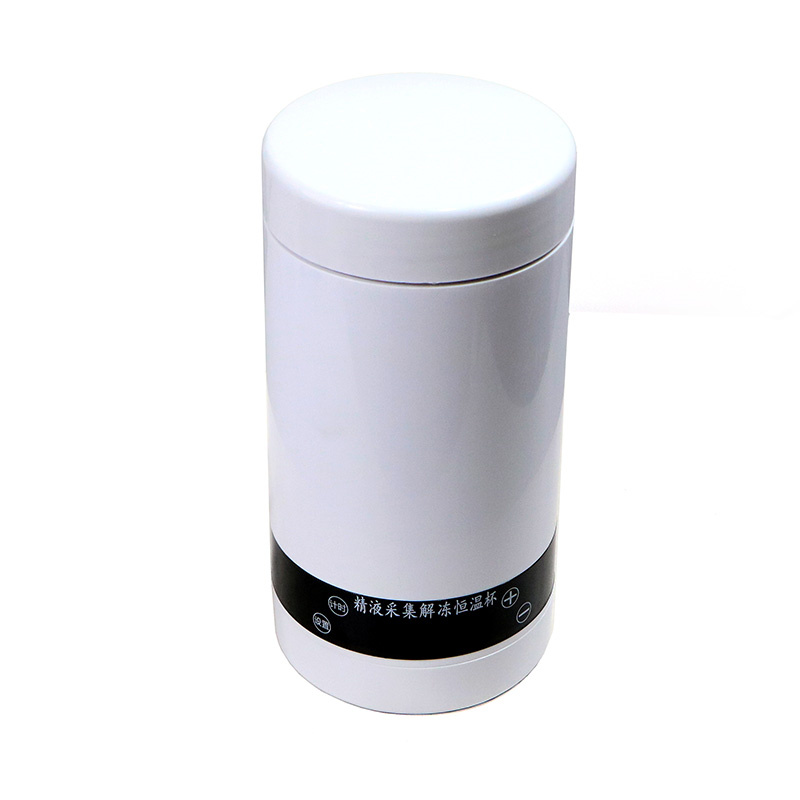

Operation Detail 5

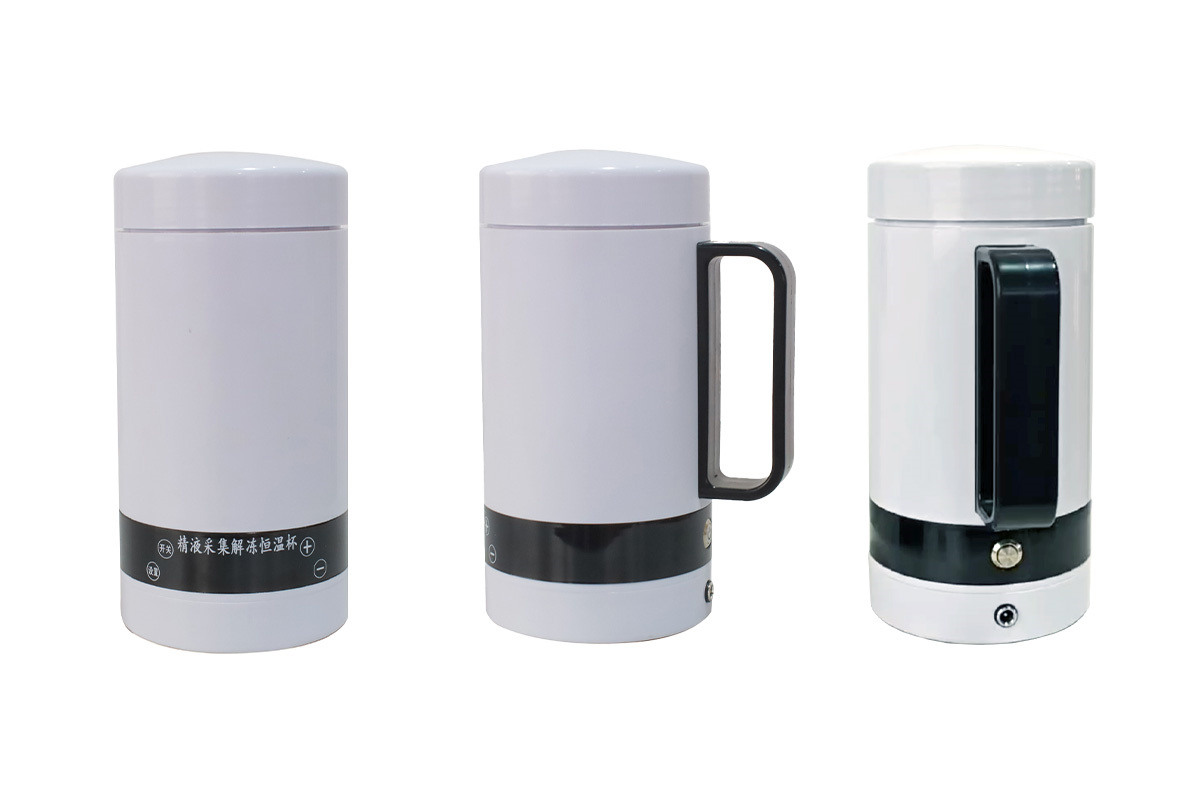

Full Set View
Frequently Asked Questions
How long does the battery last on a single charge?
Depending on the ambient temperature, the built-in battery provides 2-4 hours of operation in cold environments (0-20°C) and 4-6 hours in warmer environments (20-37°C).
What is the temperature accuracy of this device?
The device features a high-precision sensor with a temperature error of only 0.1 to 0.3°C, ensuring the safety of the sperm.
Can I use this device in my vehicle?
Yes, the device supports an input voltage of 12-14V, making it compatible with standard vehicle power supplies for field services.
Is it suitable for thawing semen from different animal species?
Absolutely. It can be used for thawing frozen semen from cows, pigs, sheep, dogs, and more by adjusting the set temperature.
How long does it take to fully charge the cup?
A full charge typically takes between 3 to 5 hours using the provided input specifications.
What is the capacity and internal size of the cup?
The cup has a total capacity of 600ml. The internal liner has a diameter of 80mm and a height of 128mm.
