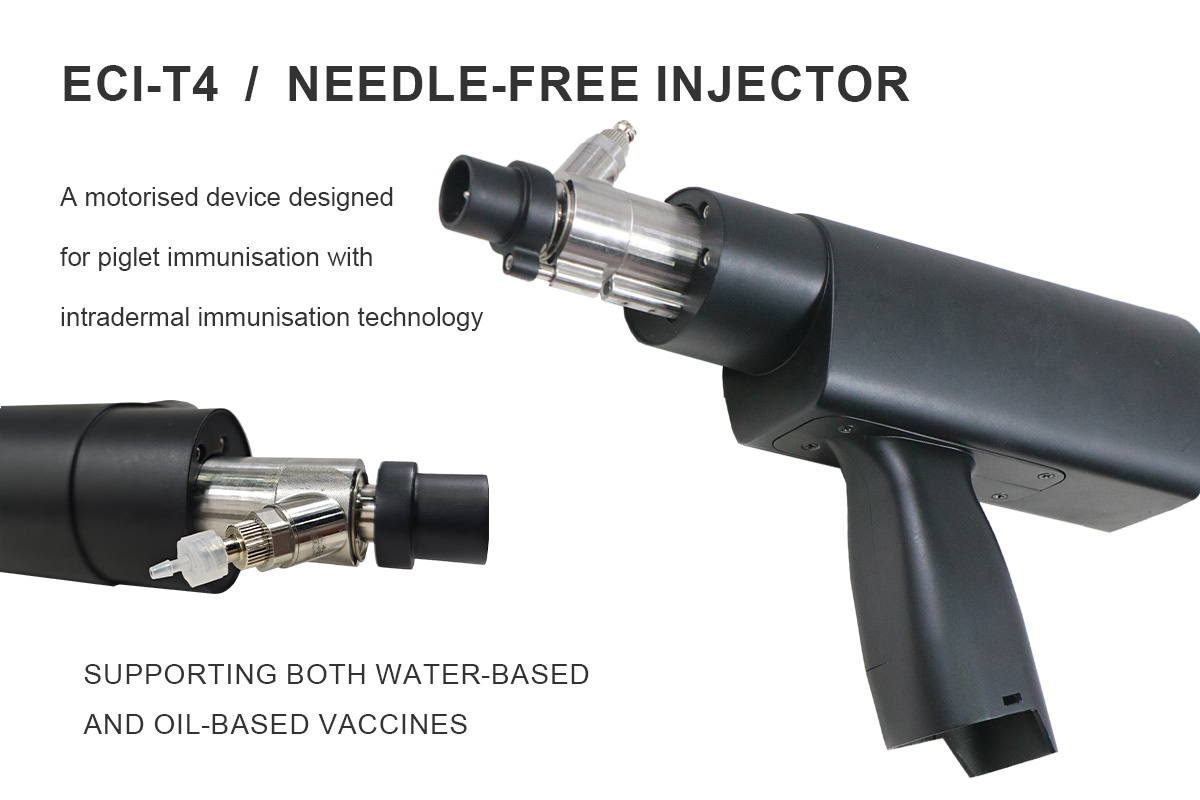

ECI-T4 Veterinary Needle-Free Injector is a motorised device designed for piglet immunisation with intradermal immunisation technology, supporting both water-based and oil-based vaccines. Needle-free injector injects vaccines into the superficial skin layer (not the muscle layer) in an atomised form by means of a high-pressure jet (0.1 seconds), avoiding tissue damage and abscesses caused by traditional needles. The single injection volume is 0.2ml or 0.5 ml, which is suitable for a wide range of vaccine types, e.g. swine fever aqueous vaccine or foot-and-mouth disease oil adjuvanted vaccine, and can be injected efficiently. The needle-free design eliminates cross-contamination, improves injection efficiency and safety, and reduces vaccine costs.
Using Video
Technical Specification
Type
ECI-T4 Needle-free Injector
Immunology
Intradermal immunity
Injection angle
Horizontal down
Injection time
0.1s
Diameter of injection port
0.2mm
Service life of the seal
≥50000
Record of number of injections
4.2bi
Injection volume error
≤1%
Vaccine utilization rate
≥95%
Type of vaccine
Aqueous & Oil solution
No. of injections
>5000 times/charge
Injection volume
0.5ml
Injection speed
1200 times/h
Body length
280mm
Battery weight
200g
Battery capacity
3200mAh
Vaccine bag volume
3000ml
N.W.
1380g
Size
350*300*165mm
Main Usage
Needle-free Injector is suitable for intramuscular inoculation of piglets without needles with an injection volume of 0.5 ml. The injection sites are the neck, behind the ears and buttocks.
Needle-free Injector Advantage
✓
Bio-security: Blocking cross-infection caused by immunisation of pigs and cutting off the blood-borne transmission of pathogens.
✓

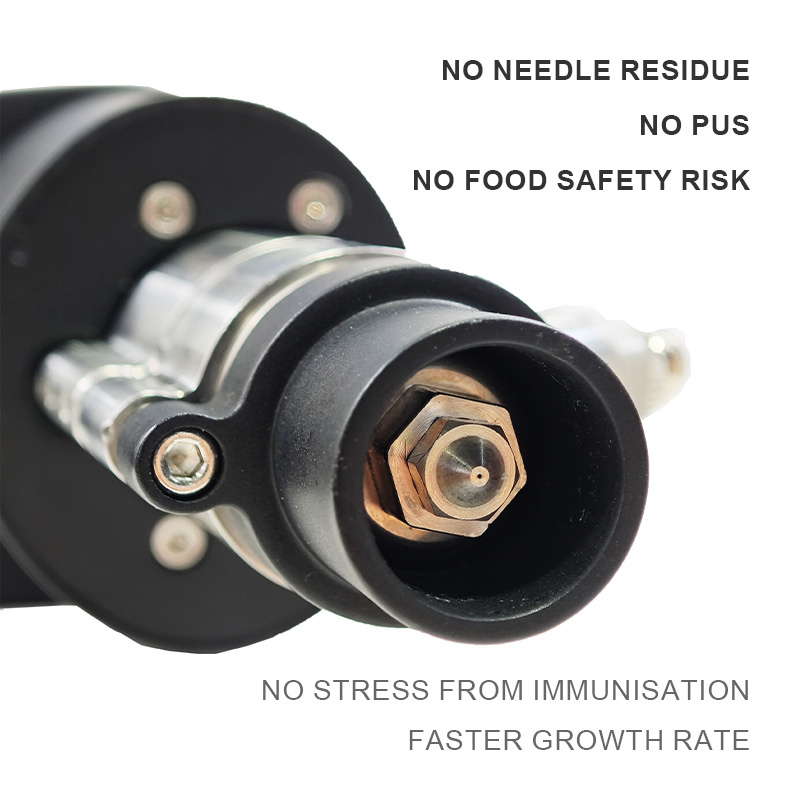

Carcass quality: No needle residue, no pus, no food safety risk.
✓
Immunisation cost: Longer and more efficient immune response, less vaccine consumption, lower immunisation cost.
✓
Simple operation: No need to change needles, automatic disinfection and marking, expanding the injection site, injection efficiency increased 2-3 times.
✓
Growth rate: No stress from immunisation, faster growth rate.
Protect the needle-free injector from external forces (e.g. bumps, shocks and knocks) during transport. Check for any damage before use.
Transport and store in original packaging.
Store protected from direct sunlight.
Never store in a wet or humid environment (especially after cleaning).
Frequently Asked Questions
What types of vaccines can be used with this injector?
The ECI-T4 supports both water-based (aqueous) and oil-based (oil adjuvanted) vaccines, making it versatile for various immunization needs.
How does needle-free technology prevent cross-contamination?
By eliminating the physical needle, there is no contact between the internal device components and the animal's blood or tissue, effectively cutting off blood-borne transmission of pathogens.
What is the injection speed and efficiency?
The device can perform up to 1200 injections per hour, with each injection taking only 0.1 seconds. This increases efficiency by 2-3 times compared to traditional methods.
How many injections can be made on a single charge?
The high-capacity 3200mAh battery allows for more than 5000 injections per full charge.
Where are the recommended injection sites for piglets?
The recommended sites for intramuscular inoculation are the neck, the area behind the ears, and the buttocks.
Does the needle-free injection cause pain or stress to the animals?
The high-pressure jet is extremely fast (0.1s), which significantly reduces the stress response in piglets compared to traditional needle injections, leading to better growth rates.
