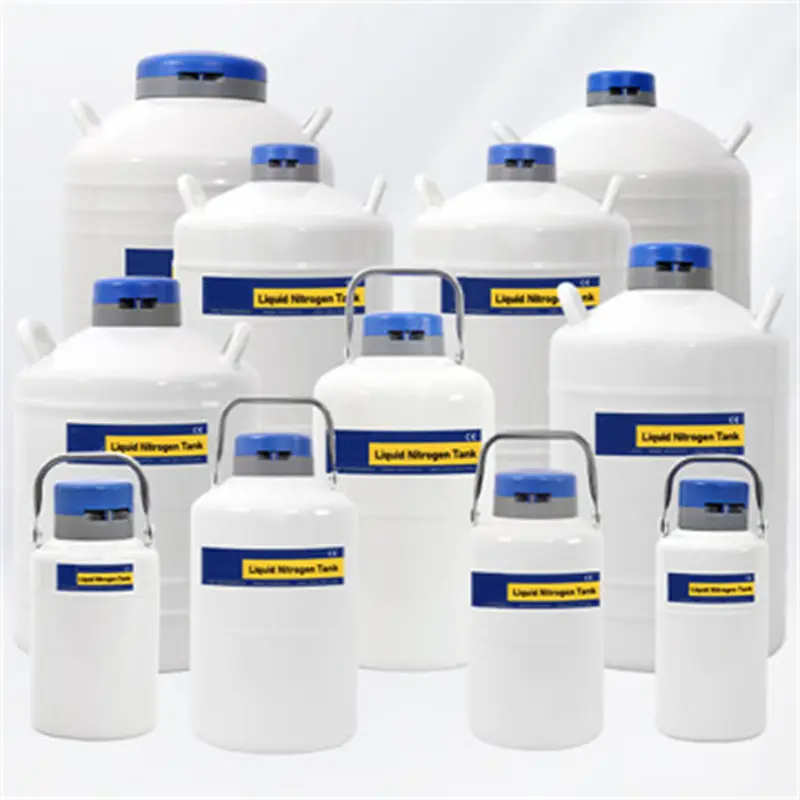

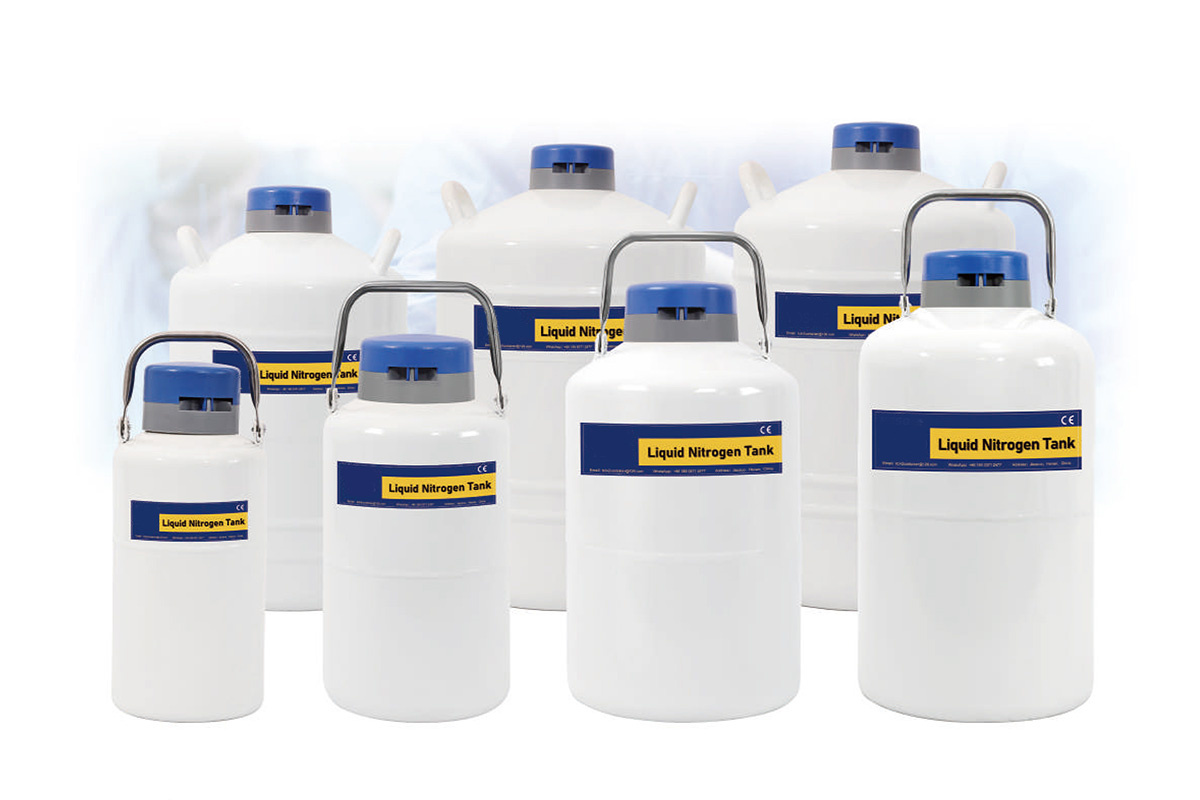

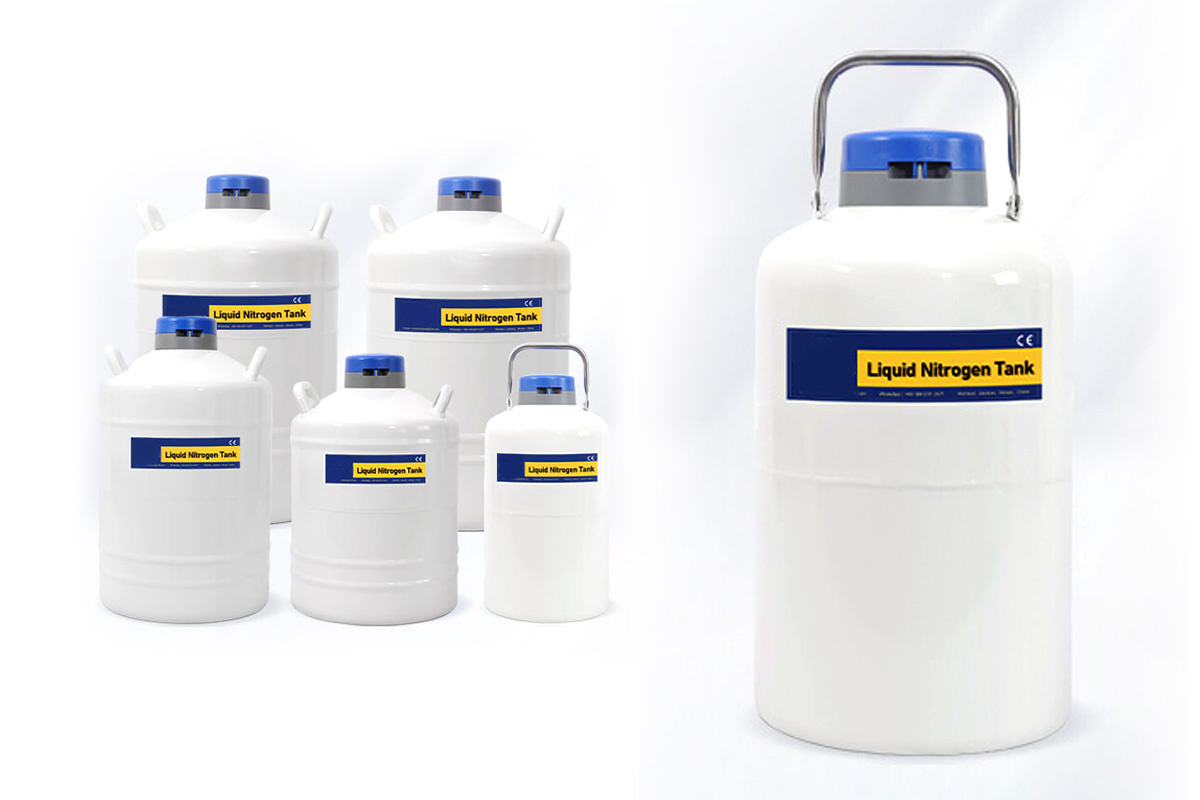

Storage type series liquid nitrogen tanks are made of high quality aviation aluminum. It is mainly suitable for users who need to store liquid nitrogen and biological samples in large capacity under static conditions, as well as users who need to transfer the stored samples manually frequently. It has the advantages of small volume, light weight, easy to carry, low daily evaporation of static liquid nitrogen, large storage capacity of biological samples, and economical and practical.
Structure
Outer liner and inner liner are made of high-strength, corrosion-resistant special aluminum plate for durability.
The neck tube is made of special glass fiber reinforced plastic with high strength and low thermal conductivity.
The insulating material is filled between the inner and outer liners and is laminated and wound using advanced technology.
The neck plug is made of special material with the dual function of reducing liquid nitrogen evaporation and securing the lifting cylinder.
The vacuum port is an important location for closing the vacuum and must be strictly protected.
Protective bag can protect the container when moving or transporting, and has certain heat insulation effect to reduce evaporation.
Storage Series Parameters
Model
Volume (L)
Caliber (mm)
O.D (mm)
Height (mm)
Static Power Dissipation (D)
Static storage (L/day)
ECI-1-35
1.30
35
180
350
16
0.08
ECI-2-35
2.30
35
180
420
28
0.08
ECI-3
3.10
50
223
455
26
0.12
ECI-3-80
3.10
80
223
440
11
0.27
ECI-3-125
3.10
125
223
420
4
0.68
ECI-6
6.50
50
280
525
53
0.12
ECI-6-80
6.50
80
280
500
25
0.25
ECI-6-125
6.50
125
280
475
11
0.55
ECI-6-216
6.50
216
304
530
2
3.03
ECI-10
10.50
50
304
565
87
0.12
ECI-10-80
10.50
80
304
565
50
0.21
ECI-10-125
10.50
125
304
585
25
0.42
ECI-10-216
10.50
216
304
560
11
0.88
ECI-13
15.18
50
304
680
126
0.12
ECI-15
16.40
50
385
600
136
0.12
ECI-15-80
16.40
80
385
600
78
0.21
ECI-15-125
16.40
125
385
585
45
0.35
ECI-15-216
16.40
216
385
570
24
0.68
ECI-20
21.50
50
385
660
178
0.12
ECI-20-80
21.50
80
385
665
102
0.21
ECI-25
25.20
50
440
650
210
0.12
ECI-30
31.50
50
440
720
260
0.12
ECI-35
35.20
50
440
760
290
0.12
ECI-50
52.10
50
516
790
217
0.24
Features
Convenient for long-term preservation of biological samples, easy to carry out.
Equipped with a protective bag to avoid product knocking.
Numbered canisters for easy identification and independent access to samples.
Optional locking lid, to protect the safety of stored samples.
High vacuum multi-layer insulation design, provide not less than five years of vacuum guarantee.
Frequently Asked Questions
Q1: What materials are used to construct these liquid nitrogen tanks?A1: These tanks are constructed from high-quality aviation aluminum, ensuring they are high-strength and corrosion-resistant while remaining lightweight.
Q2: How long is the vacuum guarantee for these containers?A2: Thanks to our high vacuum multi-layer insulation design, we provide a vacuum guarantee of not less than five years.
Q3: Are these tanks suitable for transport?A3: Yes, they are designed to be lightweight and easy to carry. Each unit includes a protective bag to prevent damage during movement or transportation.
Q4: How can I identify different biological samples stored inside?A4: The tanks come with numbered canisters, which allow for easy identification and independent access to specific samples.
Q5: Can the stored samples be secured?A5: Yes, an optional locking lid is available to protect the safety and security of your stored biological samples.
Q6: What makes the neck tube special?A6: The neck tube is made of special glass fiber reinforced plastic, which offers high strength and low thermal conductivity to minimize evaporation.
