ODM CW-3CL Hand-held Wireless Doppler Ultrasound Scanner Manufacturer, Supplier
ODM CW-3CL Hand-held Wireless Doppler Ultrasound Scanner Manufacturer, Supplier
ODM CW-3CL Hand-held Wireless Doppler Ultrasound Scanner Manufacturer, Supplier
1 / 3
ODM CW-3CL Hand-held Wireless Doppler Ultrasound Scanner Manufacturer, Supplier
ODM CW-3CL Hand-held Wireless Doppler Ultrasound Scanner Manufacturer, Supplier
ODM CW-3CL Hand-held Wireless Doppler Ultrasound Scanner Manufacturer, Supplier

ODM CW-3CL Hand-held Wireless Doppler Ultrasound Scanner Manufacturer, Supplier

● Interchangeable different probes
● Adaptation to a wide range of working systems
● Small size, can be carried in a pocket
● Suitable for obstetrics

Send Inquiry

Product Description

Overview
The Wireless Ultrasound Probe is a miniature ultrasound scanner without a screen. The size of the ultrasound probe is minimized by displaying images on a smartphone/tablet/computer via WiFi transmission (no internet access required). Due to its compact size, it is easy to use for daily pregnancy tests at home. Images can be displayed on both screen and tablet. Images are transmitted via WiFi inside the probe for a stable signal.
Technical Parameter
TypeCW-3CL
Scanning modeElectronic array
Detection depth (mm)≥ 140mm
Resolution (mm)Lateral: ≤ 1 (depth ≤ 60); Axial: ≤ 1 (depth ≤ 80)
Dead zone (mm)≤ 3
Geometric position accuracy (%)Horizontal: ≤ 5; Axial: ≤ 5
Working systemApple iOS, Android, Windows
Element / Channel80 Elements / 16 Channels
Imaging modeB, B/M, B+Color, B+PDI, B+PW
Probe frequencyConvex 3.2MHz/4MHz, Linear 7.5MHz/10MHz
DepthConvex: 90/160/200/240mm; Linear: 20/40/60/80mm
Image adjustBGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
Puncture assistIn-plane/out-of-plane puncture guide line, automatic blood vessel measurement
Cine-loopAuto/Manual, 100/200/500/1000 frames
MeasureLength, Area, Angle, Heart rate, Obstetrics
Image savejpg, avi and DICOM format
Battery / ChargeUSB or Wireless charge (2 hours), Working time ≥ 3h
Wifi type802.11g/20MHz/5G/450Mbps
Size & Weight110*60*20mm, 120g

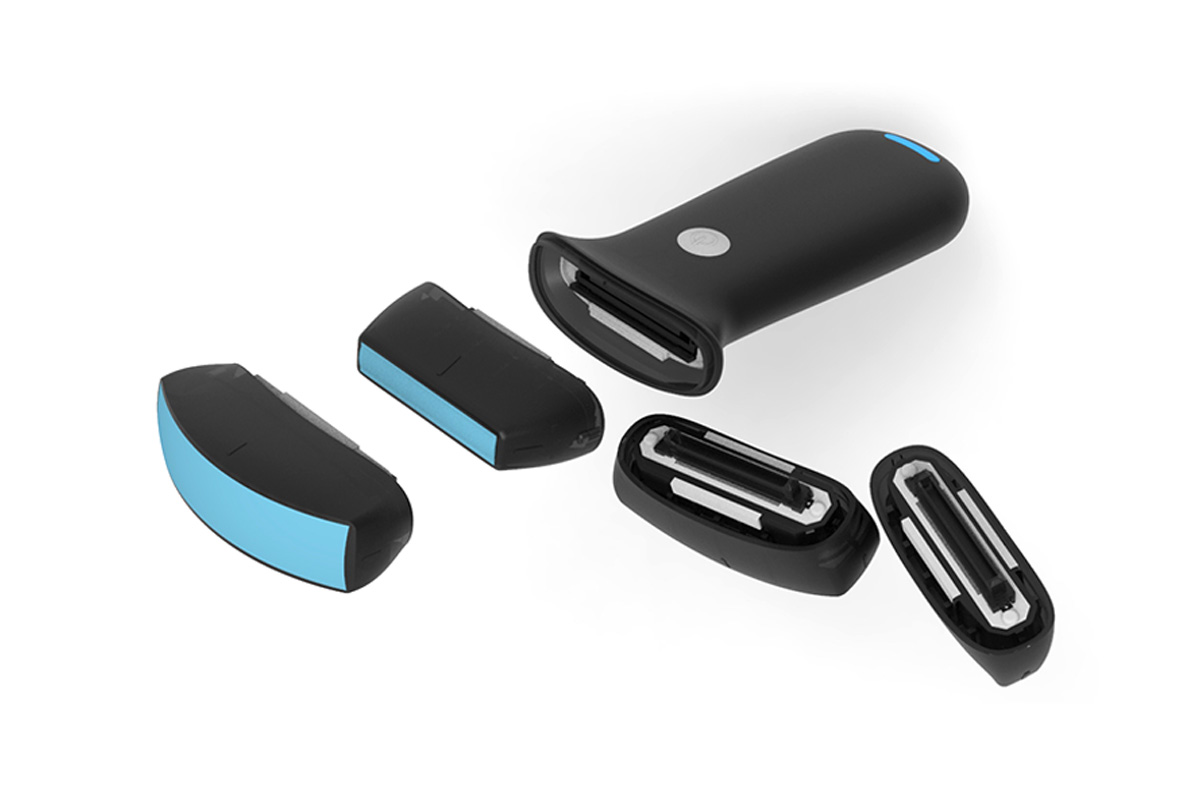

CW-3CL palm doppler ultrasound-detail 1

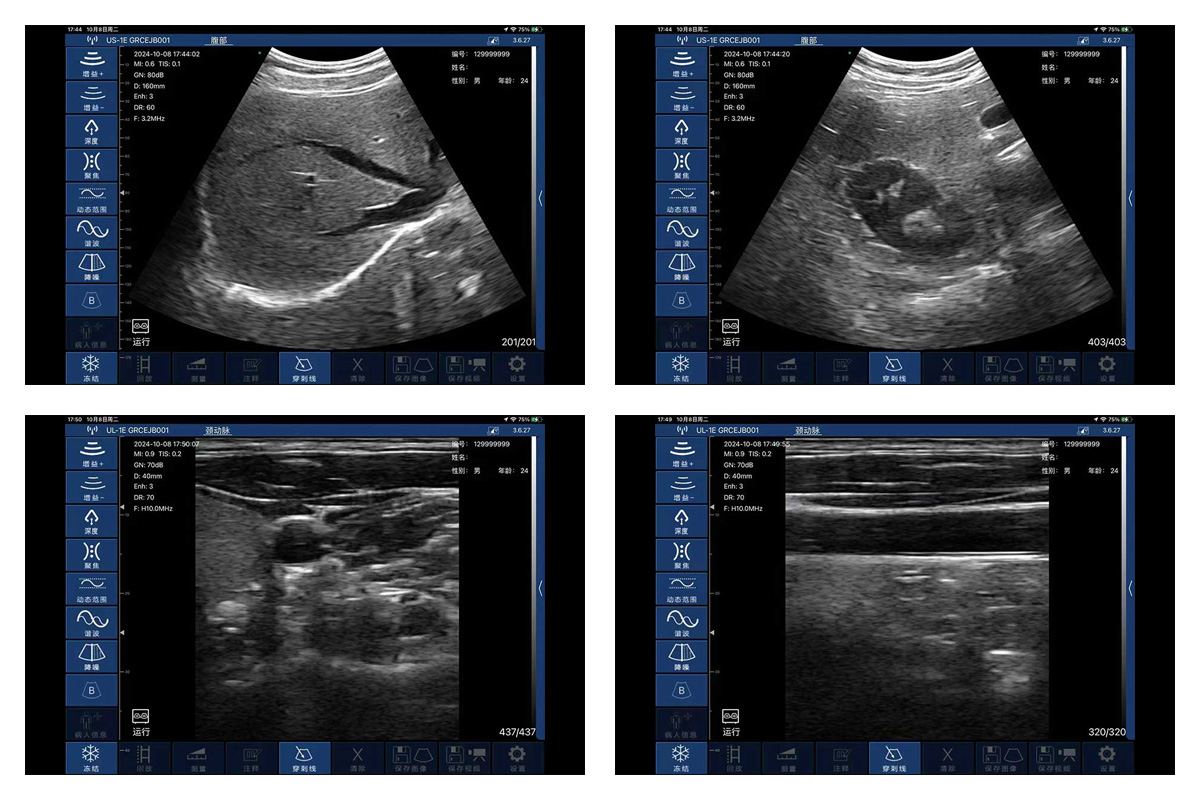

CW-3CL palm doppler ultrasound-detail 2

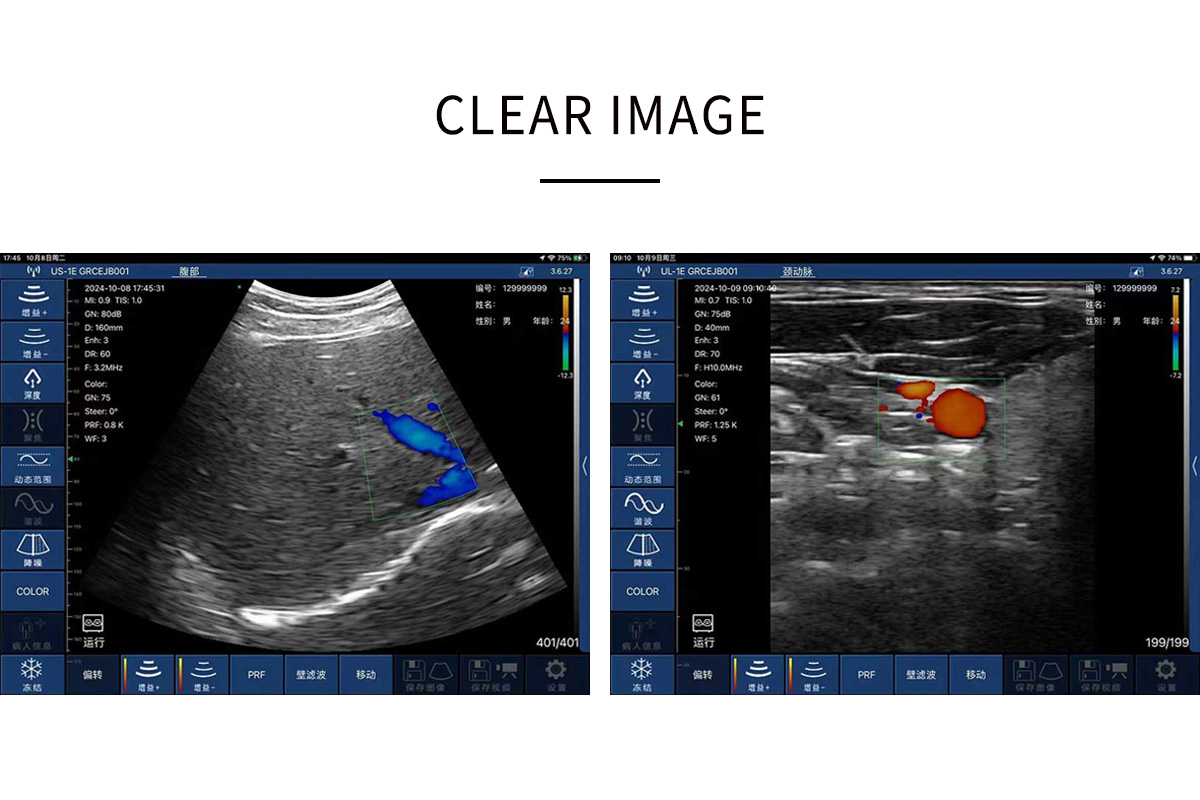

CW-3CL palm doppler ultrasound-detail 3
Frequently Asked Questions
What devices can the Wireless Ultrasound Probe connect to?
The probe is compatible with Apple iOS, Android smartphones and tablets, as well as Windows computers.
Does the probe require an internet connection to work?
No, the probe creates its own WiFi signal to transmit images directly to your device. No external internet access is required.
How long does the battery last on a full charge?
The probe provides at least 3 hours of continuous working time. It can be fully recharged in about 2 hours via USB or wireless charging.
What imaging modes does the device support?
It supports multiple professional modes including B, B/M, B+Color, B+PDI, and B+PW for comprehensive diagnostics.
Can this device assist with medical procedures like punctures?
Yes, it features puncture assist functions including in-plane and out-of-plane guide lines, along with automatic blood vessel measurement.
In what formats can I save the ultrasound images and videos?
Images can be saved in JPG format, and videos can be saved in AVI or professional DICOM formats.
