ODM ECI-400S Animal Sperm Quality Analyzer With Built-in Printer Supplier, Suppliers
ODM ECI-400S Animal Sperm Quality Analyzer With Built-in Printer Supplier, Suppliers
ODM ECI-400S Animal Sperm Quality Analyzer With Built-in Printer Supplier, Suppliers
1 / 3
ODM ECI-400S Animal Sperm Quality Analyzer With Built-in Printer Supplier, Suppliers
ODM ECI-400S Animal Sperm Quality Analyzer With Built-in Printer Supplier, Suppliers
ODM ECI-400S Animal Sperm Quality Analyzer With Built-in Printer Supplier, Suppliers

ODM ECI-400S Animal Sperm Quality Analyzer With Built-in Printer Supplier, Suppliers

● Accurate and fast, constant temperature and stability
● Data analysis, granular
● One-key measurement of vitality and density
● Label Printing, easy to operate
● ECI-400S Animal Sperm Quality Analyzer is suitable for many kinds of animals

Send Inquiry

Product Description

What is the Animal Sperm Quality Analyzer?

Animal sperm quality analyzer is an instrument for analyzing sperm density, motility and viability. Various dynamic and static parameters of sperm (including density, motility, effective sperm count, etc.) can be obtained through analysis, which can improve the efficiency of artificial insemination, increase the calving rate of sows, reduce semen loss and labor costs. It is equipped with a constant temperature heating table, sperm motility is not affected by temperature factors during detection, can generate animal semen analysis report, convenient for users to analyze.

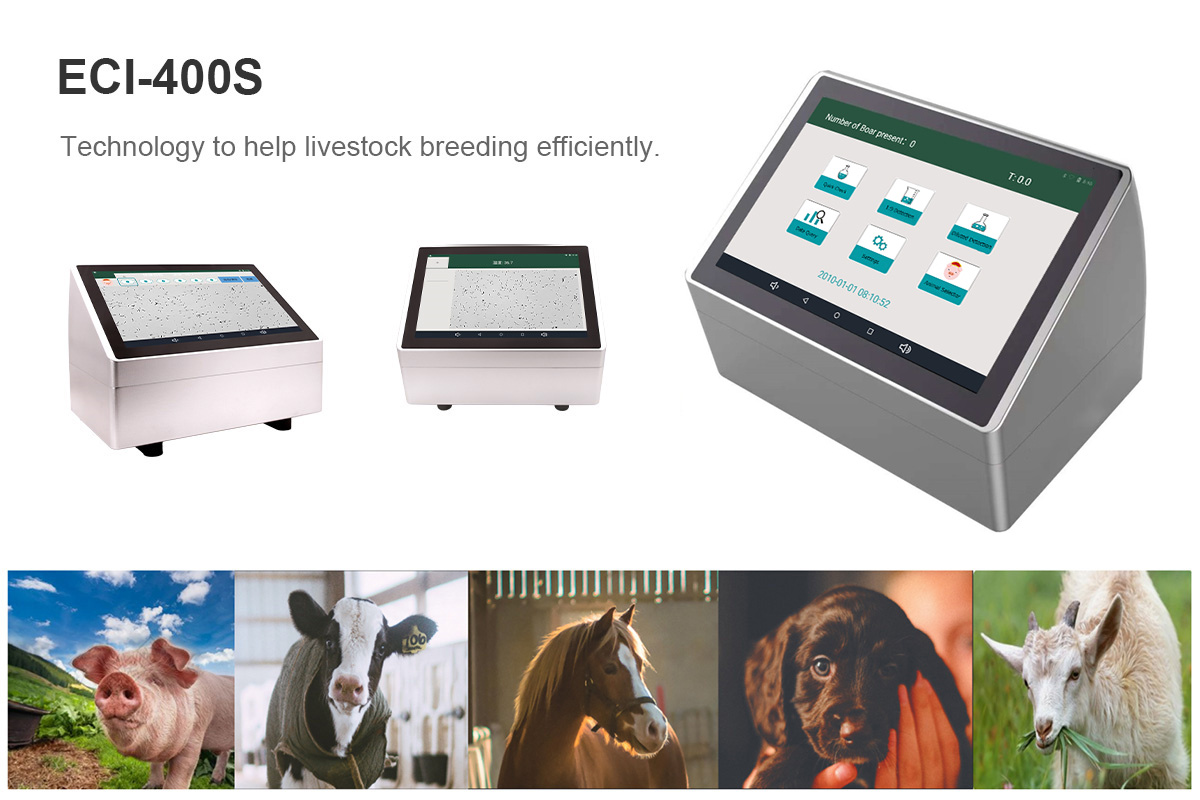

technology to help livestock breeding efficiently

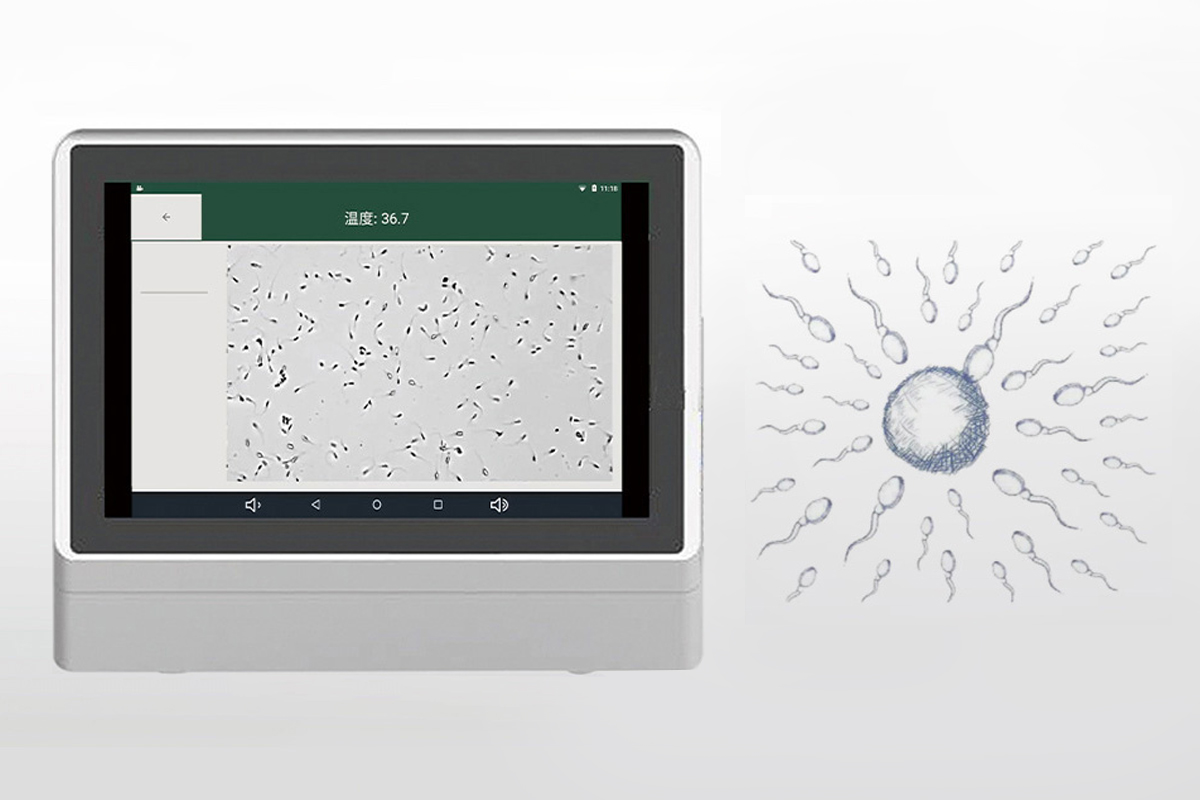

Semen testing for animals

Using Video

Parameters of the Animal Sperm Quality Analyzer

TypeECI-400S
Measuring range0~2bi/ml
Resolution1µm
Analysis time30s
Storage64GB
Temp. range36~39℃
Recordable Info.ID, variety, time, etc.
NetworkWiFi
Detection chamber6
Precision98%
Vitality accuracy90%
Detection speed0~250µm/s
Measurementdensity, viability, deformity rate
Storage capacity10000
Other functionprint label
Screen10.1-inch
FunctionsQuick check /1:9 Original sperm detection/Diluted semen test /Data query/Animal information /Settings /Animal selection
Size26*18*20mm
N.W.3.6kg

Why Choose ECI-400S Animal Sperm Quality Analyzer?

✓Uses special customized optical lens for clear imaging.
✓Detects more than 1000 sperm per group to filter out impurities.
✓Advanced classification dilution algorithm for accurate detection.
✓Equipped with a 37-degree constant temperature table (35°~45° range).
✓Fully intelligent electronic control, focusing, and tracking.
✓Intelligent algorithms for accurate sperm movement trajectory capture.
✓Internal database for management and automatic data reports.
✓Simple and fast operation for accurate semen analysis.
✓High-strength alloy structure with ergonomic screen tilt angle.
✓Comprehensive printing information for easy statistical classification.

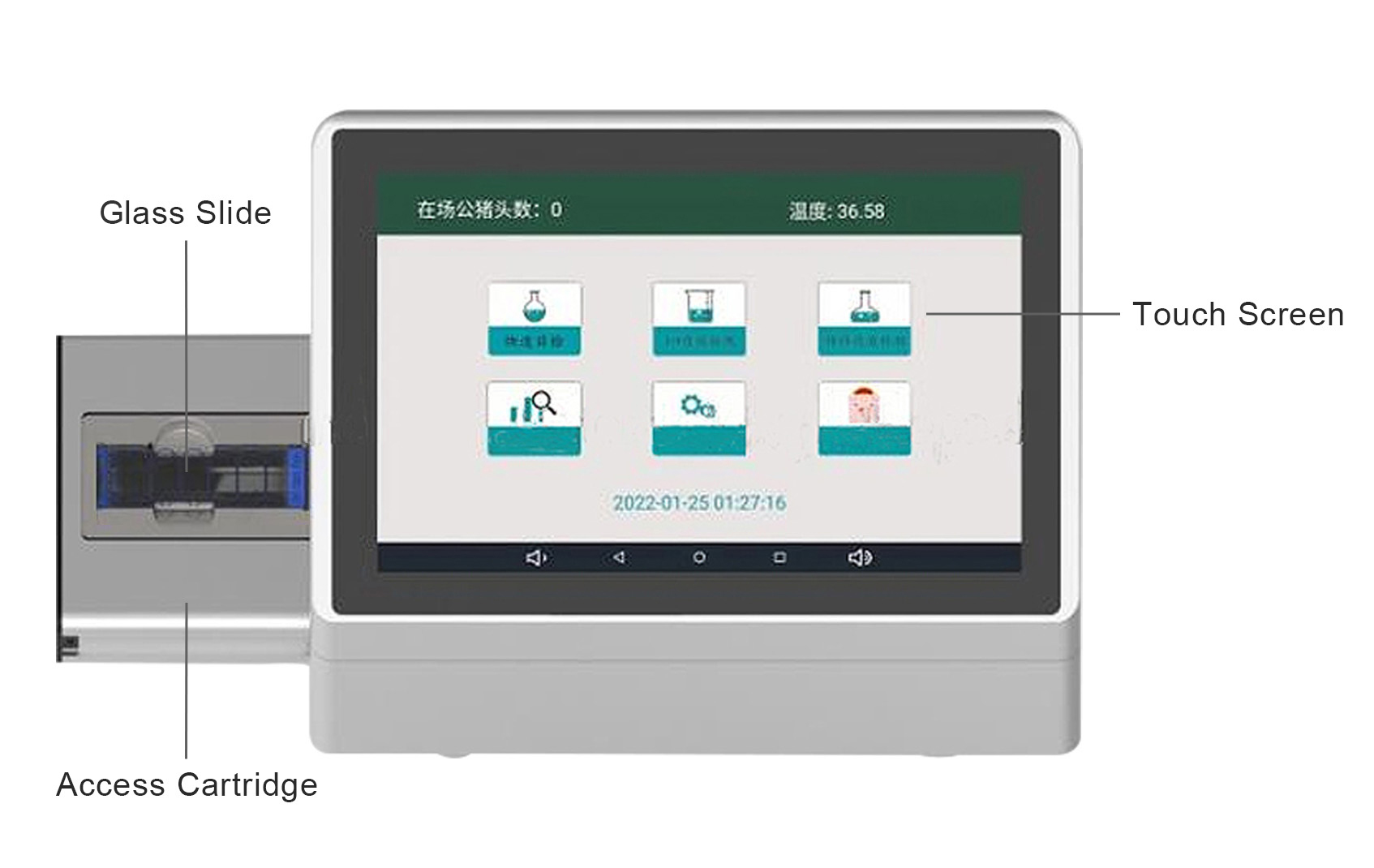

Sperm Quality Analyzer-A

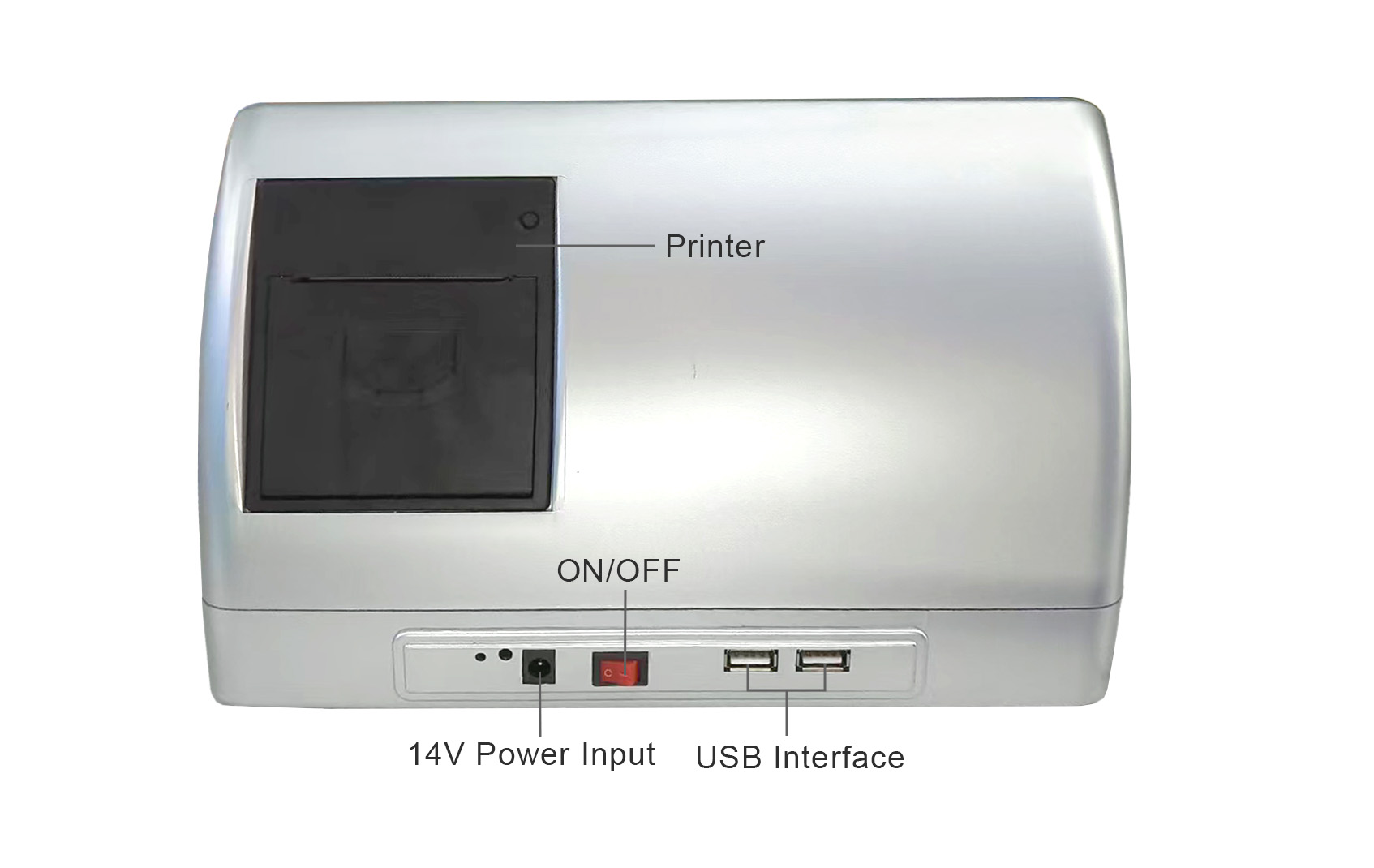

Sperm Quality Analyzer-B

Exception Handling

!Screen failure: Check power cord and adapter indicator light.
!Blurred sample: Ensure the slide and chamber surface are clean.
!Printing failure: Check label paper installation and printer status light.
!Detection abnormality: Return to main interface to initialize the host.
!Technical issues: Contact online customer service for support.

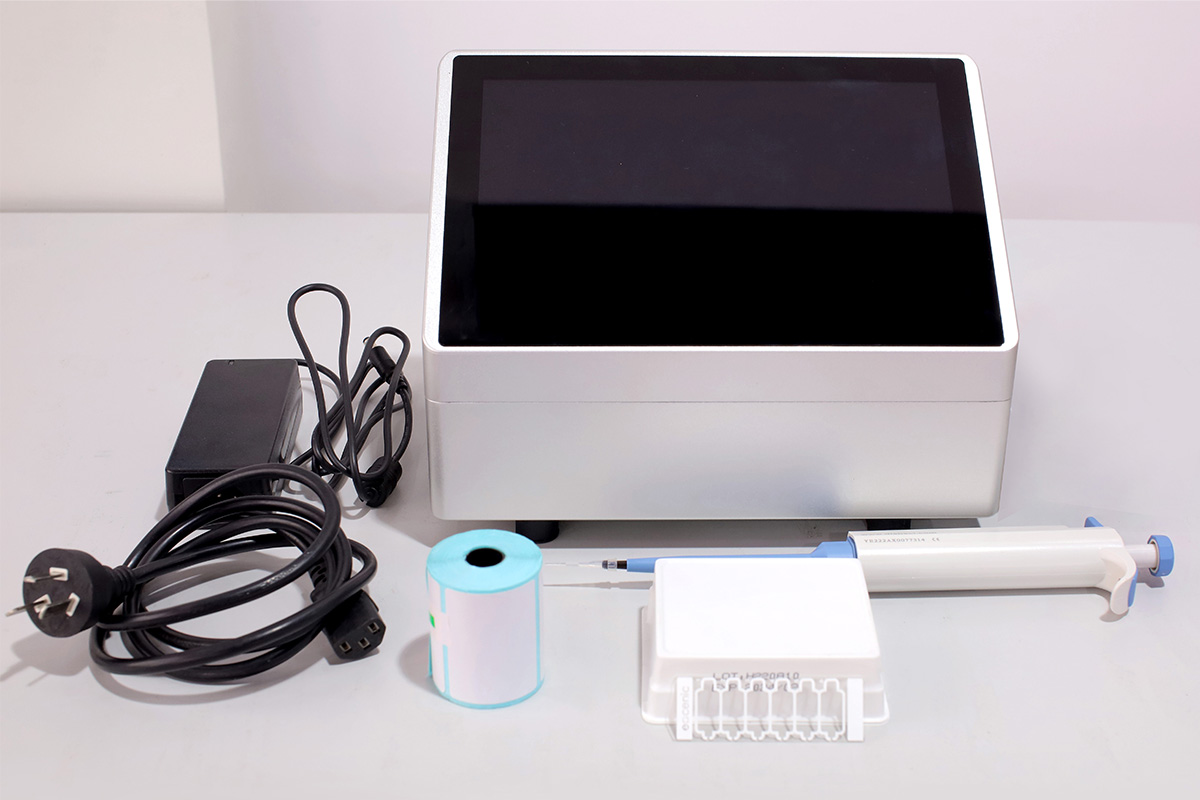

ECI-400S Sperm Quality Analyzer-detail 5 package

Frequently Asked Questions

Q1: How long does it take to analyze a sperm sample? A: The ECI-400S provides a comprehensive analysis in just 30 seconds.
Q2: What is the measurement accuracy of the analyzer? A: The device features a 98% precision rate for density and a 90% accuracy for vitality detection.
Q3: Does the ambient temperature affect the testing results? A: No, the analyzer is equipped with a constant temperature heating table (36~39℃) to ensure sperm motility is not affected by external factors.
Q4: How many records can the device store? A: The analyzer has a storage capacity of up to 10,000 records with a 64GB internal storage.
Q5: Can the analyzer generate reports for management? A: Yes, it can automatically generate and print detailed data reports, including density, viability, and deformity rates.
Q6: Is the device easy to move for field testing? A: Yes, with a net weight of only 3.6kg and a compact design, it is highly portable for various breeding environments.
