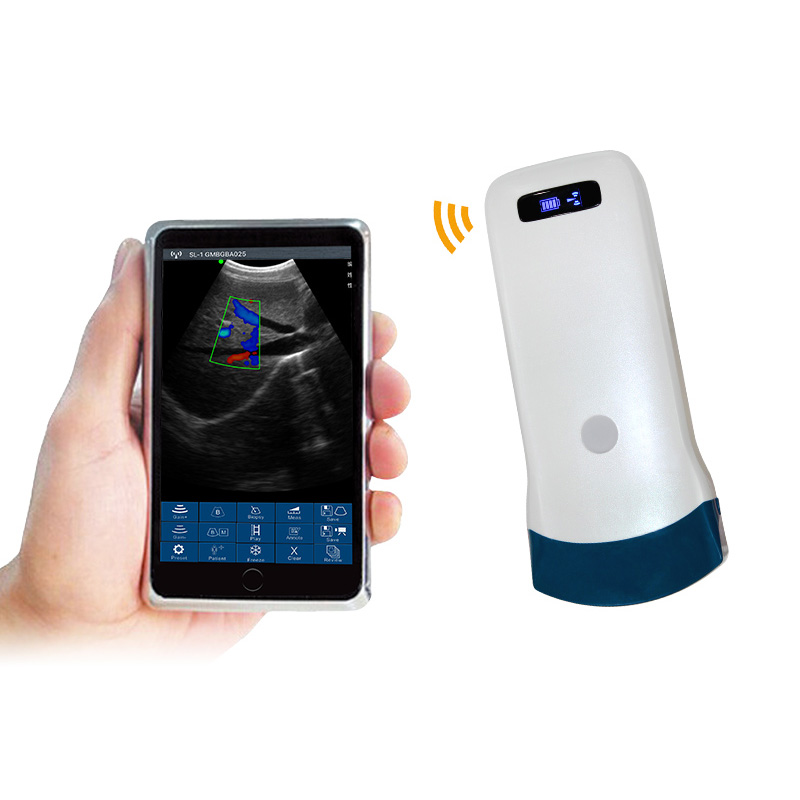

The Wireless Probe is a miniature ultrasound scanner without a screen. We have minimized the components of a conventional ultrasound scanner by integrating them into a small circuit board built into the probe and displaying the image on a smartphone/tablet/computer via WiFi transmission (no internet access required). The image can be displayed on both the screen and the tablet. The image is transmitted via WiFi inside the probe, no external WiFi signal is required.
| Type | CW-5C |
| Scan mode | Electronic convex array scanning |
| Detection depth (mm) | ≥140mm |
| Resolution (mm) | Lateral ≤1 (depth ≤60); Axial ≤1 (depth ≤80) |
| Dead zone (mm) | ≤3 |
| Geometric position accuracy (%) | Horizontal ≤5; Axial ≤5 |
| Working system | iOS, Android, Windows |
| Element | 128 |
| Channel | 8 |
| Scanning mode | B, BM, Color, PDI, PW |
| Probe frequency | 3.3-5.0MHz convex probe |
| Depth | 90~305mm |
| Image gray scale | 256 |
| Dynamic range | 40/50/60/70/80/90/100/110 |
| Measure | distance, area, obstetrics and other |
| Gain | 30db-105db |
| Image save | Store on mobile phones |
| Battery | 4200mAh |
| Working time | ≥3h |
| Wifi type | 802.11g/20MHz/5G/450Mbps |
| N.W. | 250g |
| Size | 156*60*20mm |
The wireless ultrasound probe is very flexible in matching the image display screen to the different screen sizes of cell phones, tablets and computers.
Waterproof design for easy rinsing and sterilization.
Convenient for remote diagnosis, images can be transmitted from cell phone to doctor for diagnosis.

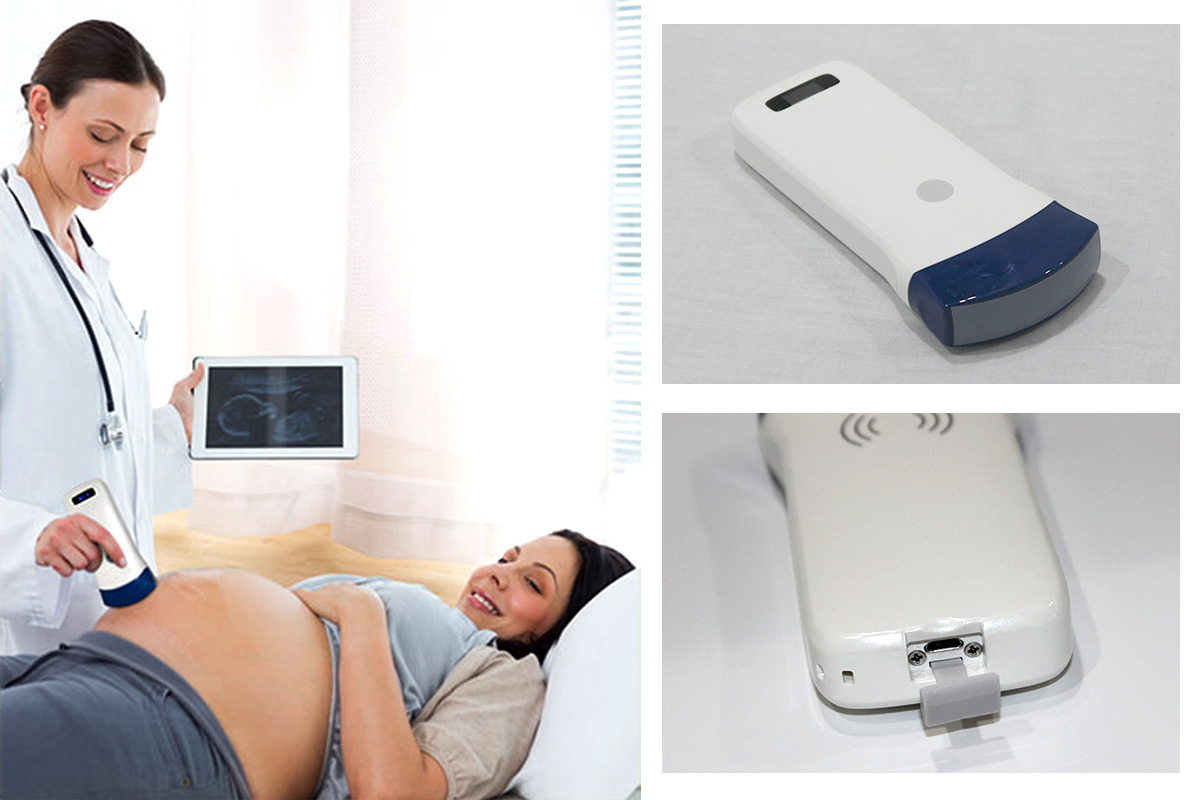

Suitable for emergency, clinic, outdoor diagnosis, home use.
Intelligent terminal platform with storage, communication, printing and other extended functions.
In emergency clinical, hospital ward inspection, community clinical and outdoor inspect, an easy carried & operated compact ultrasound such as wireless probe is desired.
In addition, the wireless probe can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.
Also for powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine.
Frequently Asked Questions
How does the wireless probe connect to my device?
The probe creates its own internal WiFi signal. You simply connect your smartphone, tablet, or computer to this WiFi network to view real-time images via the dedicated app. No external internet access is required.
Which operating systems are compatible with the probe?
The wireless ultrasound probe supports iOS, Android, and Windows operating systems, making it compatible with most modern smartphones, tablets, and PCs.
Is the device waterproof?
Yes, the probe features a waterproof design, which allows for easy rinsing and effective sterilization between uses, ensuring high hygiene standards in clinical environments.
How long can the battery last on a single charge?
The device is equipped with a 4200mAh battery that provides a continuous working time of 3 hours or more, suitable for a full day of intermittent clinical inspections.
Can I save and share the ultrasound images?
Yes, images and videos can be stored directly on your mobile phone or tablet. They can also be transmitted for remote diagnosis or printed through the intelligent terminal platform.
What is the scanning depth of the CW-5C model?
The CW-5C convex probe offers a detection depth of ≥140mm, with an adjustable range between 90mm and 305mm depending on the clinical requirements.
