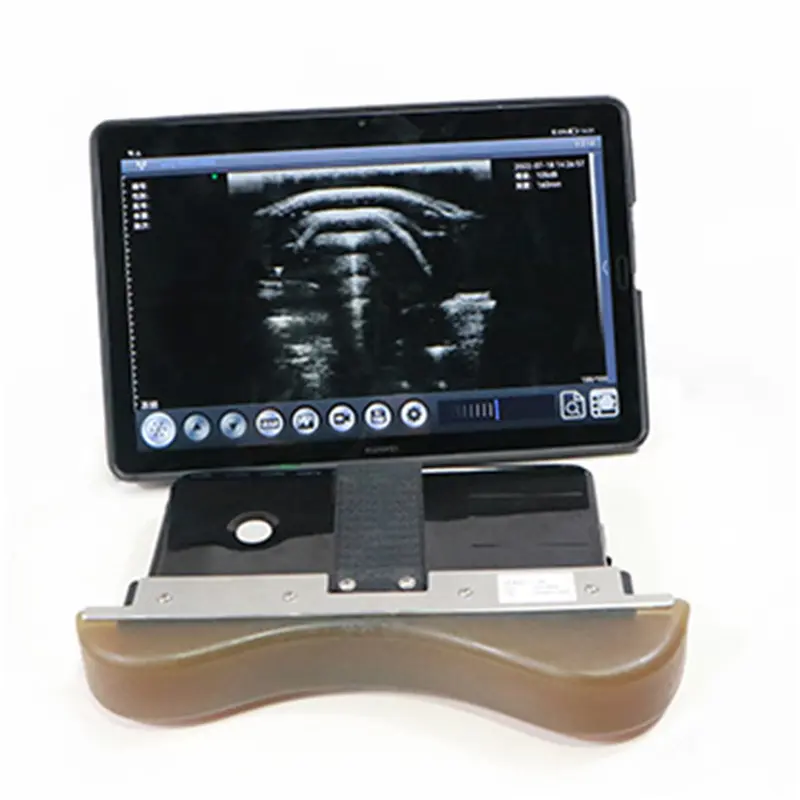

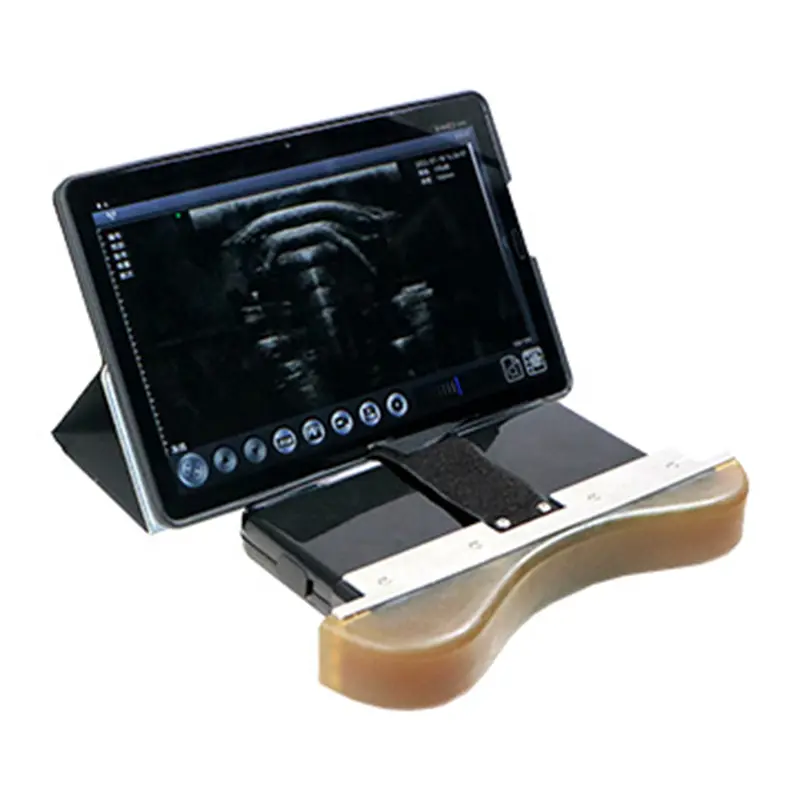

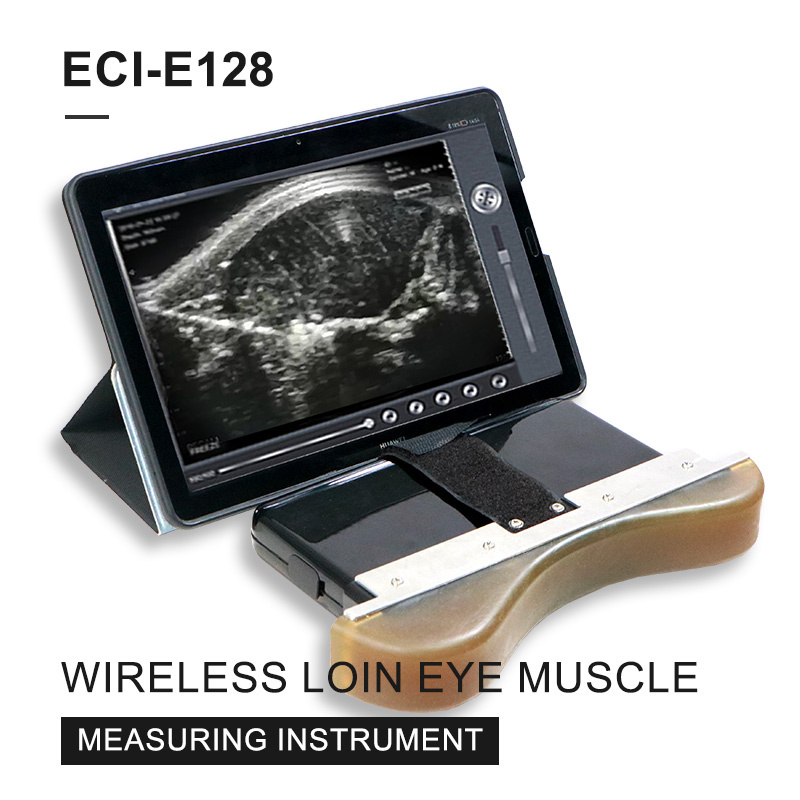

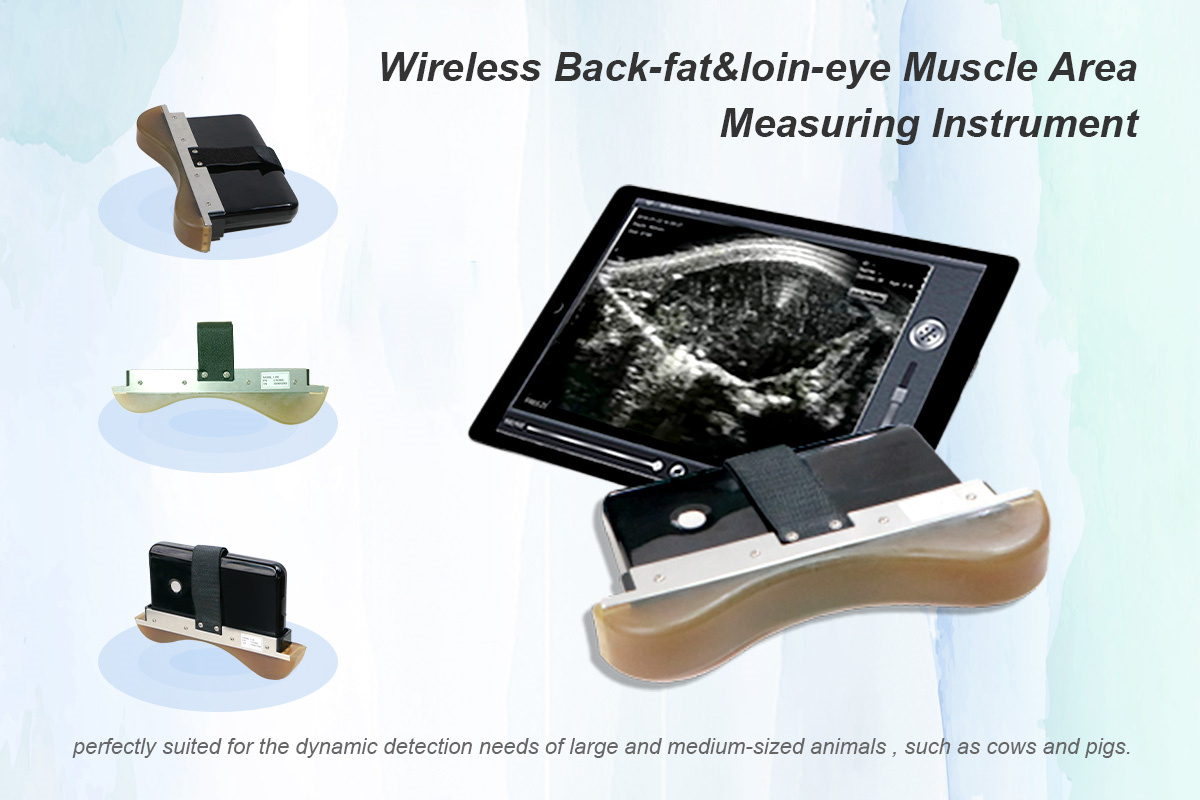

Wireless Loin Eye Muscle Area Measuring Instrument adopts the latest wireless data transmission technology and is the latest veterinary ultrasound imaging equipment. It is mainly applied to back-fat and eye muscle testing of pigs, cattle, sheep and other animals to achieve the result of reasonable feed allocation.
The intelligent system adopts an intelligent mobile terminal as the host, connected via WiFi. After the host is connected to the Pad or Smartphone, measurement can be started simply by launching the dedicated App.
When the WiFi indicator light flashes slowly, the device is ready. Open the App or your mobile settings to connect.
Default Password: "eci" + the last 7 digits of the WiFi name (e.g., if the name is eciQ 1M2109001, the password is eci2109001).
Frequently Asked Questions
Q1: Which animals can this instrument be used for?
It is specifically designed for testing back-fat and loin eye muscle area in pigs, cattle, sheep, and other similar livestock.
Q2: How does the device connect to my phone or tablet?
The device uses a built-in WiFi hotspot to connect directly to your mobile terminal (Android-based tablets or phones). No external internet is required.
Q3: How long can the battery last during field use?
The 3200mAh battery provides a working time of ≥ 4.5 hours, making it suitable for extended use in farm environments.
Q4: Can I export the measurement data?
Yes, measurement records can be saved in CSV file format, which is easy to export and manage for data analysis.
Q5: What is the maximum scanning depth?
The ECI-E128 supports an adjustable scanning depth ranging from 70mm to 160mm.
Q6: Is the equipment portable?
Yes, the scanner weighs only 800g and features a compact, wireless design for highly portable veterinary use.
